FC-32 - Connecting the FC-32
5
4 Connecting the FC-32
Always switch off the power to each device before connecting it to your
FC-32. After connecting your FC-32, connect its power and then switch
on the power to each device.
To connect the FC-32 as illustrated in the example in Figure 2:
1. Connect the digital input source (such as, a computer graphics source) to
the 24-pin Molex INPUT connector.
2. Connect an output acceptor (such as, a computer graphics VGA display or
component display) to the PC/COMPONENT OUT 15-pin HD connector.
3. Set the front panel switch (see Figure 1) to Y/PB/PR for a component
acceptor or to RGB for a computer graphics acceptor.
4. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity.

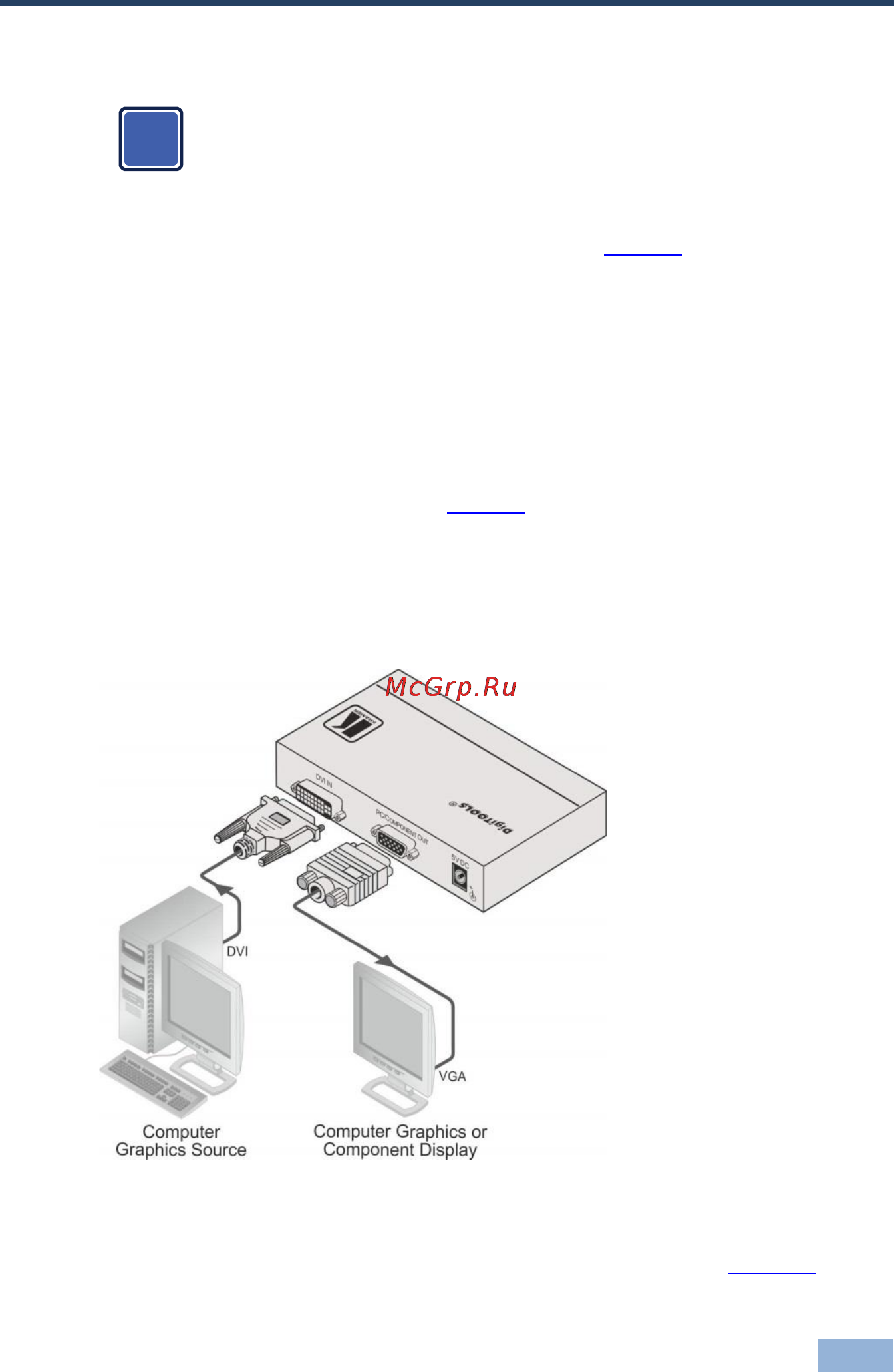

Figure 2: Connecting the FC-32 DVI to PC/Component Converter
Note: The FC-32 is shipped with a fixed, factory default EDID (see Section 6).
