Setting the DIP-switches on the TP-185
11
11
When DIP-switch 1 is:
• Up, Reply is disabled (default)
• Down (ON), Reply is enabled
7.1.3 Setting the Reply Source or Machine Number
DIP-switches 2, 3 and 4 set either the reply source (in Hardware mode Table 2) or
machine number (in Software mode
Table 3).

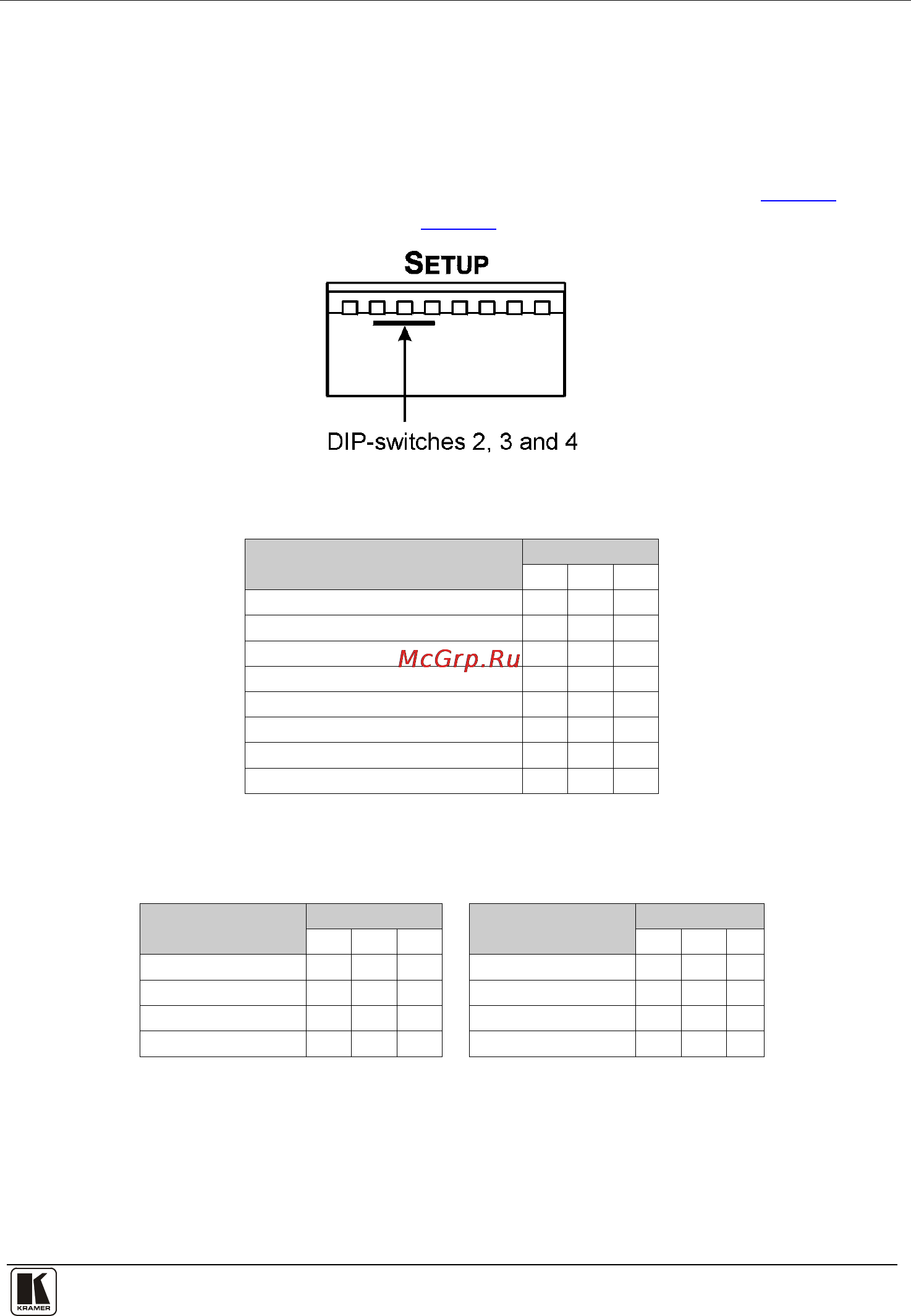

Figure 6: TP-185 Reply Source or Machine Number DIP-switches
Table 2: Hardware Mode Reply Source DIP-switch Setting
Reply Source
DIP-switch
2 3 4
Reply is taken from output 1 (default) OFF OFF OFF
Reply is taken from output 2 ON OFF OFF
Reply is taken from output 3 OFF ON OFF
Reply is taken from output 4 ON ON OFF
Reply is taken from output 5 OFF OFF ON
Reply is taken from output 6 ON OFF ON
Reply is taken from output 7 OFF ON ON
Reply is taken from output 8 ON ON ON
Note: When there is more than one TP-185 attached to the RS-485 bus only one unit
can have a reply path set.
Table 3: Software Mode RS-485 Machine Number DIP-switch Setting
Machine Number
DIP-switch
Machine Number
DIP-switch
2 3 4 2 3 4
1 OFF OFF OFF 5 OFF OFF ON
2 ON OFF OFF 6 ON OFF ON
3 OFF ON OFF 7 OFF ON ON
4 ON ON OFF 8 ON ON ON
When there is more than one TP-185 attached to the RS-485 bus each unit must have
a unique machine number.
