KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
8
5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

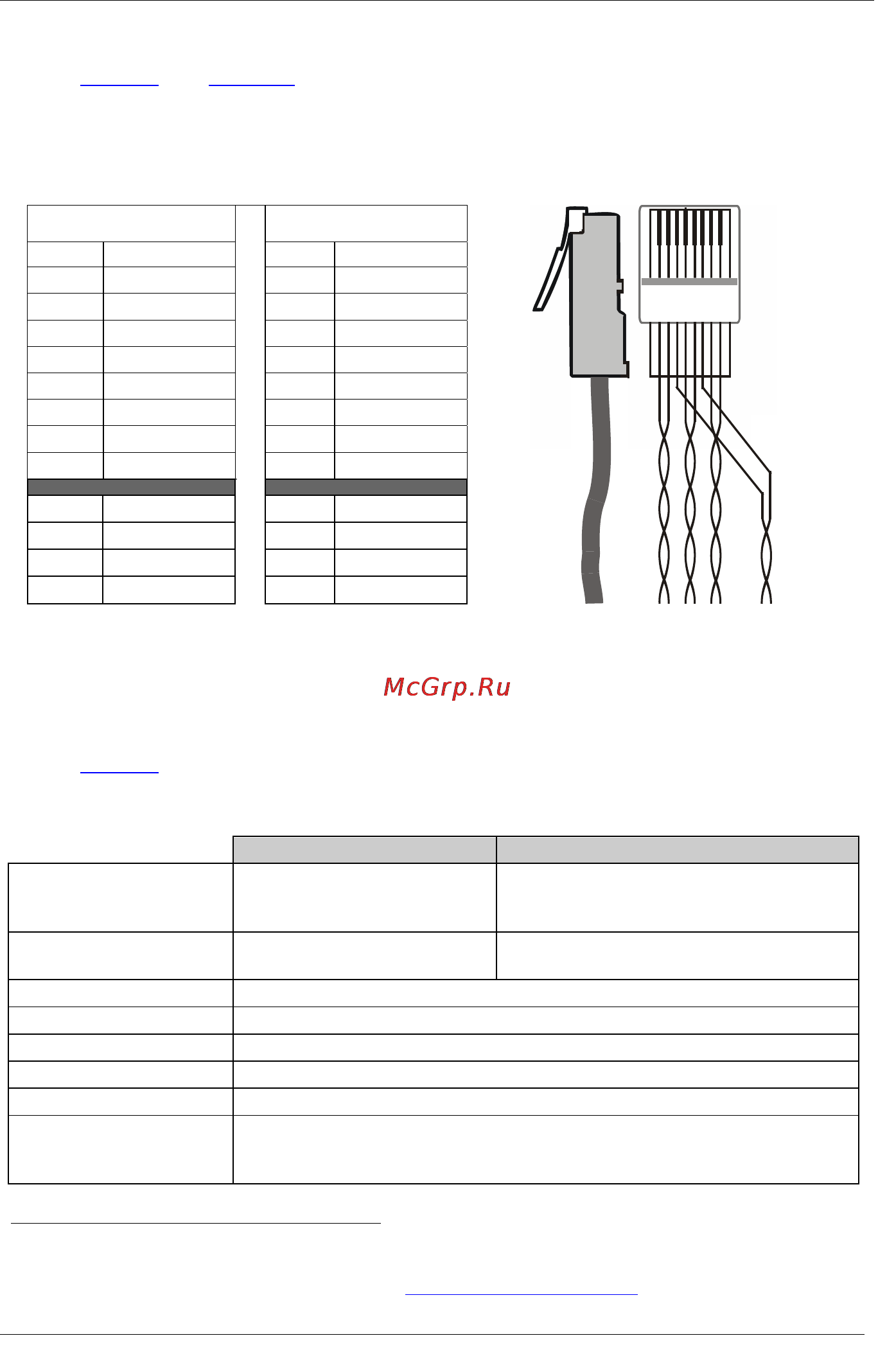

Table 3 and Figure 4 define the CAT 5 pinout, using a straight pin-to-pin
cable with RJ-45 connectors (note, that the cable Ground shielding must be
connected / soldered to the connector shield):
Table 3: CAT 5 PINOUT Figure 4: CAT 5 PINOUT
36
7
812
5
4
1
4
5 7
8632
EIA /TIA 568A EIA /TIA 568B
PIN
Wire Color
PIN
Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
6 Technical Specifications
The PT-571HDCP/PT-572HDCP technical specifications are shown in
Table 4.
Table 4: Technical Specifications
1
PT-571HDCP PT-572HDCP
INPUTS: 1 DVI, 1.2Vpp on a DVI Molex
24pin female connector; DDC
signal 5Vpp (TTL)
1 RJ-45 connector
OUTPUTS: 1 RJ-45 connector 1 DVI, 1.2Vpp on a DVI Molex 24pin female
connector; DDC signal 5Vpp (TTL)
BANDWIDTH: Supports up to 1.65Gbps
POWER SOURCE: 12V DC, 250mA (transmitter and receiver together)
DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.
WEIGHT: 0.14kg (0.3lbs)
ACCESSORIES: Power supply, mounting bracket
OPTIONS: 19” RK-4PT rack adapter, Kramer DVI cables
2
1 Specifications are subject to change without notice
and BC-DGKat524 (CAT 5 24
AWG), BC-DGKat623 (CAT 6 23 AWG) and BC-DGKat7a23 (CAT 7a 23 AWG)
cables
2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
