KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2

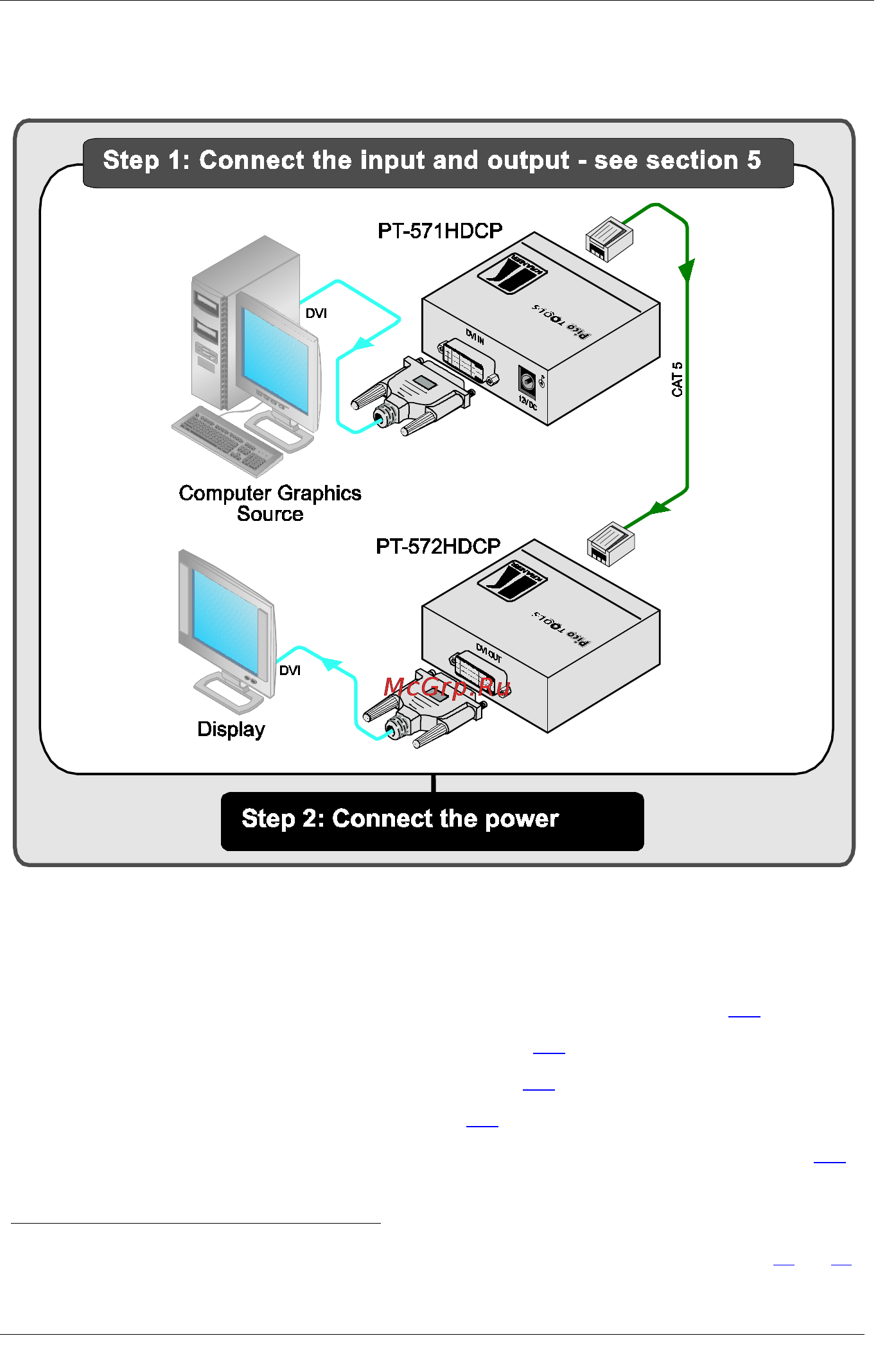

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
3 Overview
This section summarizes:
• The DVI Line Transmitter / Receiver System
1
3.1, see section
• The power connect feature, see section
3.2
• Using Twisted Pair Cable, see section
3.3
• The HDCP standard, see section
3.4
• Recommendations for achieving the best performance, see section
3.5
1 For details of the PT-571HDCP DVI Line Transmitter and PT-572HDCP DVI Line Receiver, see sections 4.1 and 4.2,
respectively
