Your PT-571HDCP / PT-572HDCP

4 Your PT-571HDCP / PT-572HDCP

This section describes the:

• PT-571HDCP DVI Line Transmitter, see section

4.1

• PT-572HDCP DVI Line Receiver, see section

4.2

4.1 Your PT-571HDCP DVI Line Transmitter

The PT-571HDCP DVI Line Transmitter receives a DVI signal, encodes it, and

transmits it over a CAT 5 cable to the PT-572HDCP. The PT-571HDCP has:

• A DVI input connector

• An RJ-45 CAT 5 output connector

• One power status LED

Figure 1 and Table 1 define the PT-571HDCP:

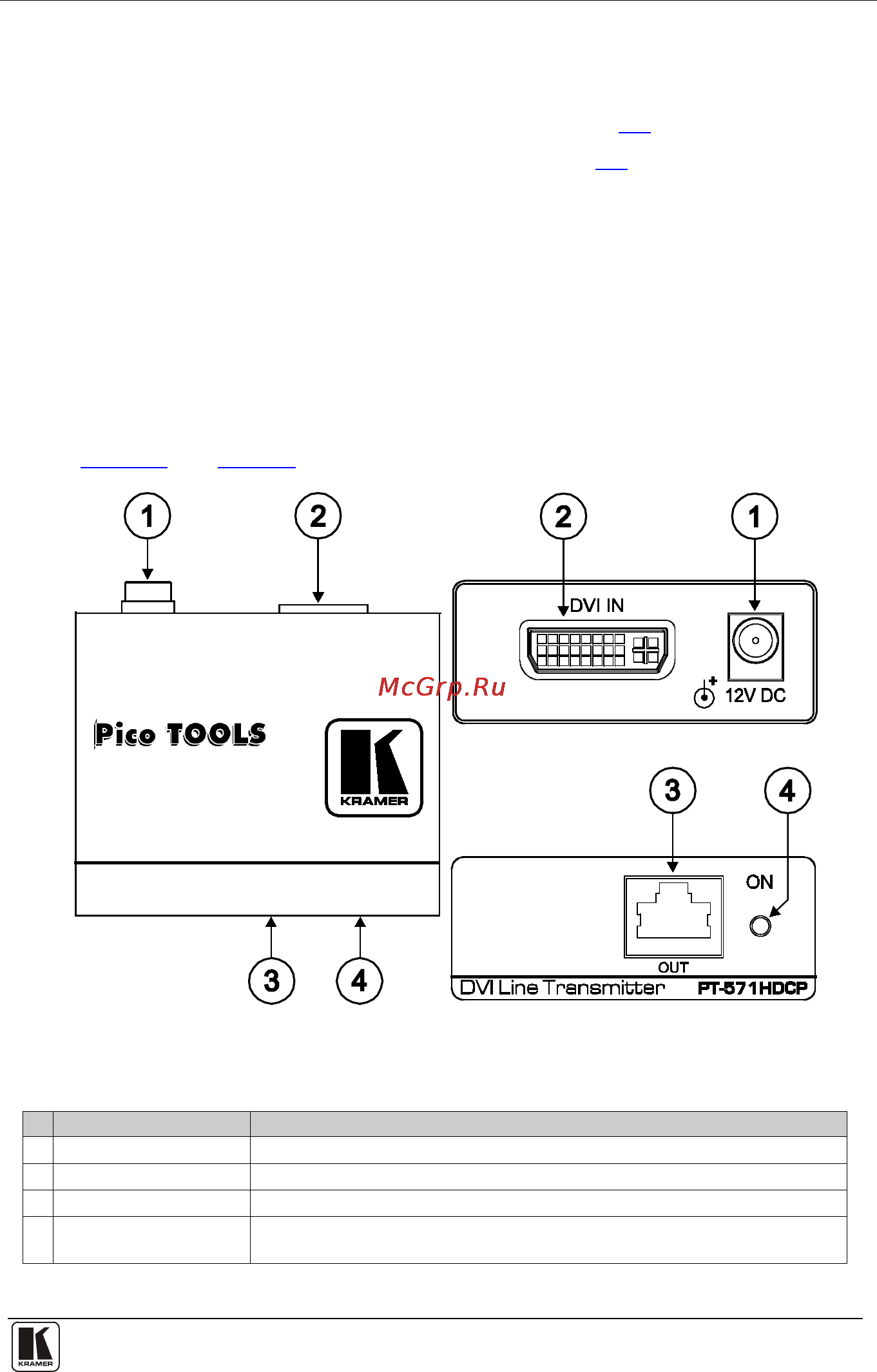

Figure 1: PT-571HDCP DVI Line Transmitter

Table 1: PT-571HDCP DVI Line Transmitter Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 DVI IN Connector Connect to the DVI source

3 OUT RJ-45 Connector

Connect to the IN RJ-45 connector on the PT-572HDCP

4 ON LED Lights red when receiving power only, orange when input and power are

attached, and yellow when both an active input and output are attached
