HDBT – HDBaseT Twisted Pair Cable Termination

3 HDBaseT Twisted Pair Cable Termination

This procedure describes how to terminate HDBT Twisted Pair cable.

Tools

You will need these tools at hand: a razor knife, wire cutters, a pair of pliers and a standard RJ-45 Crimp Tool.

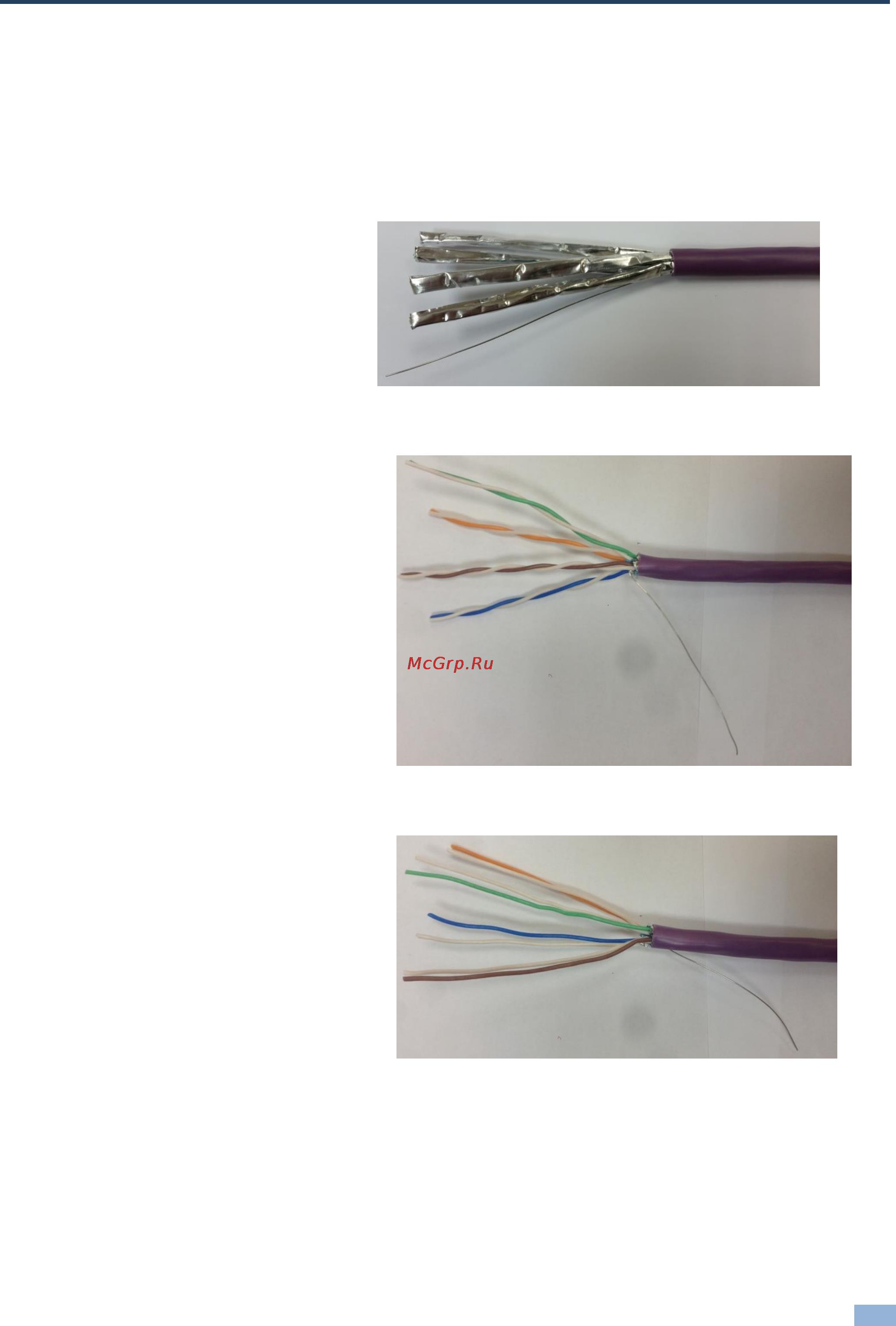

Step 1: Remove part of the purple jacket

Remove approximately 2.5” of

the purple jacket using the razor

knife exposing the 4 shielded

pairs and drain wire. Fold the

drain wire over onto the cable for

future use.

Step 2: Separate the 4 pairs

Separate the 4 pairs. Use the razor

knife to carefully remove the

shielding without scoring the wires

beneath it. Repeat for all 4 pairs.

Step 3: Untwist each pair

Untwist each pair and straighten

the individual conductors. Be sure

to keep each pair together so it can

be identified.
