HDBT - HDBaseT Twisted Pair Cable Termination

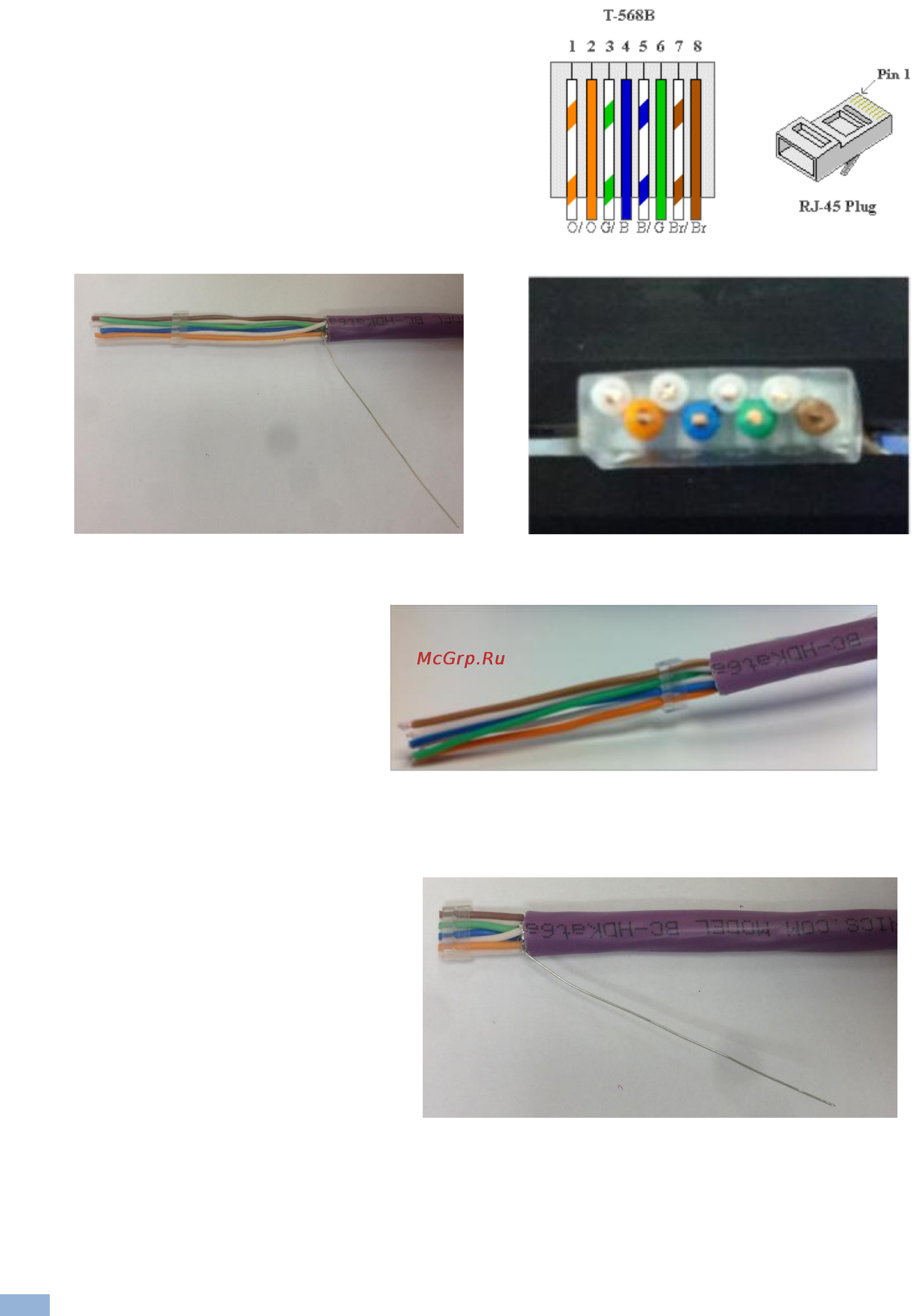

Step 4: Insert conductors into the plastic loader

Using the standard wiring scheme shown here

(T-568B), insert the conductors into the plastic loader

piece of the R-J45 connector. The plastic loader is

necessary because the thickness of CAT 6 cable

does not allow it to sit flat in an RJ-45 connector like

in normal CAT 5. Note how the loader staggers the

cables:

Step 5: Slide the plastic loader down the cable

Slide the plastic loader down the

cable as close to the base as

possible. Keep pressure on the

top and bottom of the loader so

the cables stay in place while

sliding down.

Step 6: Cut all conductors

Using the wire cutters, cut all

conductors leaving approximately 0.5”

remaining.
