HDBT – HDBaseT Twisted Pair Cable Termination

Step 7: Insert the cable into the RJ-45 connector

With the orange pair on the left and the

clip of the RJ-45 connector facing

downwards, insert the cable into the

RJ-45 connector, pushing the cable all

the way in until the exposed pairs

contact the back of the connector.

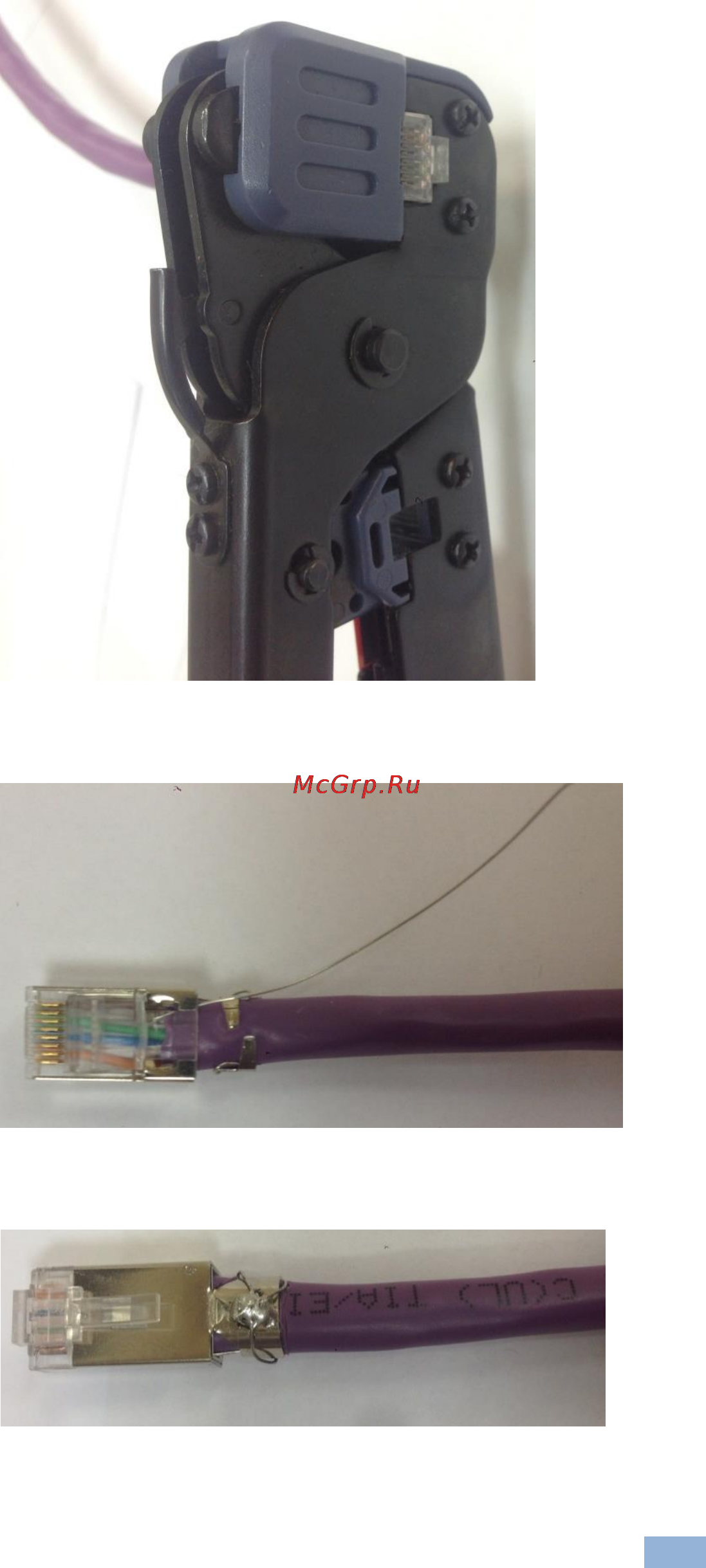

Step 8: Crimp the RJ-45 connector

Using the Standard Crimp Tool, crimp

the RJ-45 connector.

Step 9: Flip the drain wire up onto the RJ-45 connector

Flip the drain wire up onto the RJ-45

connector. Clamp the strain relief

down on the purple jacket of the

BC-HDKat6a cable using the pair of

pliers.

Step 10: Solder the drain wire to the metal casing of the RJ-45 connector

Solder the drain wire to the metal

casing of the RJ-45 connector and cut

off the excess using the wire cutters.

Verify the continuity of the conductors

and the shield using a cable tester.
