PT-101HDCP - Overview

3.1 Defining the PT-101HDCP DVI Repeater

This section defines the PT-101HDCP.

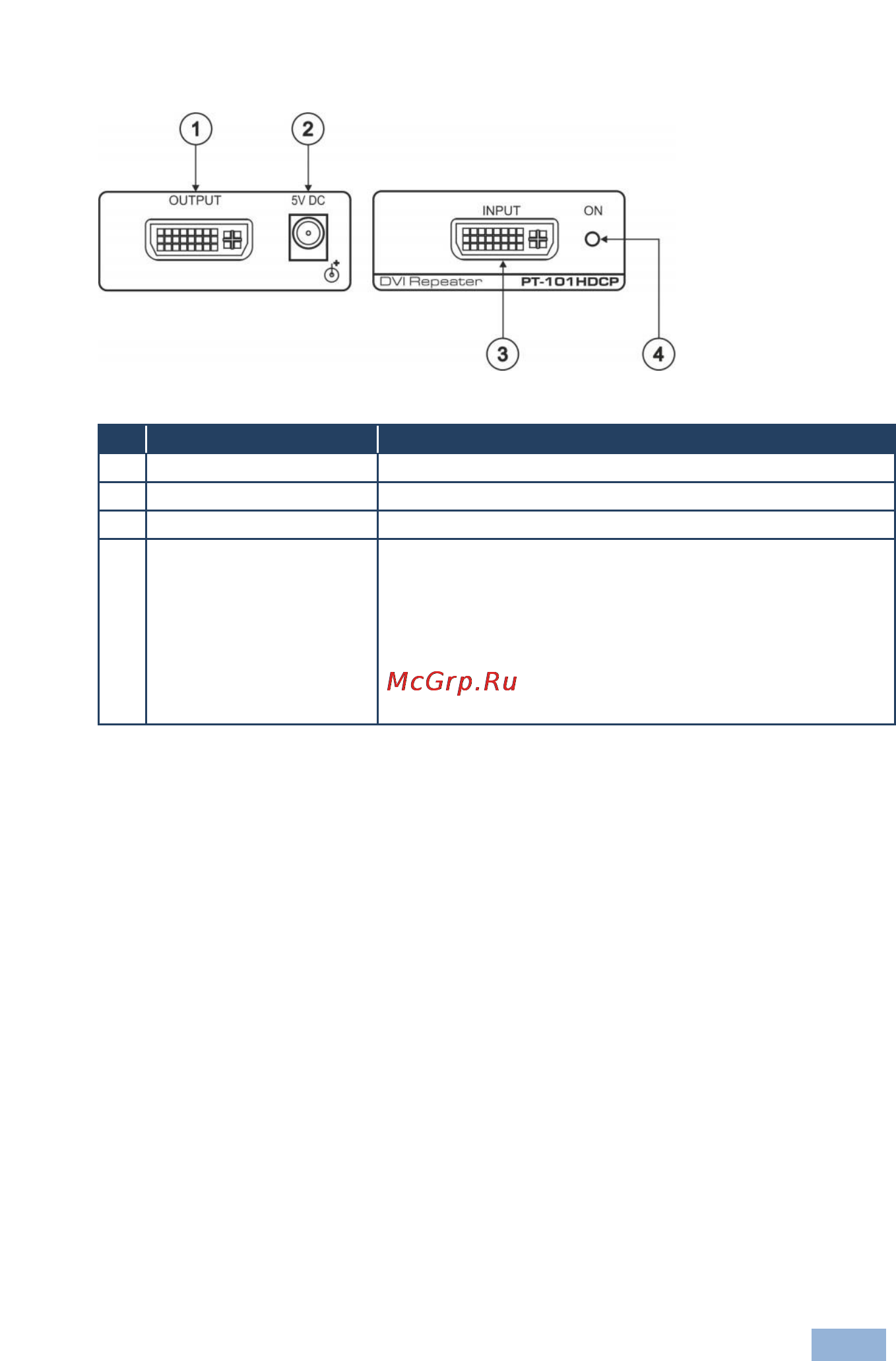

Figure 1: PT-101HDCP DVI Repeater

Feature

Function

OUTPUT DVI Connector

Connect to the DVI acceptor

5V DC

+5V DC connector for powering the unit

INPUT DVI Connector

Connect to the DVI source

ON LED

Illuminates when receiving power. The POWER LED is

colored:

Yellowish-green, when the 5V DC power source is connected

but no input signal is received

Red, when an input signal is received and the 5V DC power

source is disconnected

Orange when both the 5V DC power source is connected and

an input signal is received
