4 Connecting the PT-101HDCP

Always switch off the power to each device before connecting it to your

PT-101HDCP. After connecting your PT-101HDCP, connect its power

and then switch on the power to each device.

To connect the PT-101HDCP, as illustrated in the example in Figure 2, do the

following:

1. Connect the DVI source (for example, a DVI graphics source) to the INPUT

connector.

2. Connect the OUTPUT connector to a DVI acceptor (for example, a display).

3. Connect the 5V DC power adapter to the power socket on the PT-101HDCP

and connect the adapter to the mains electricity.

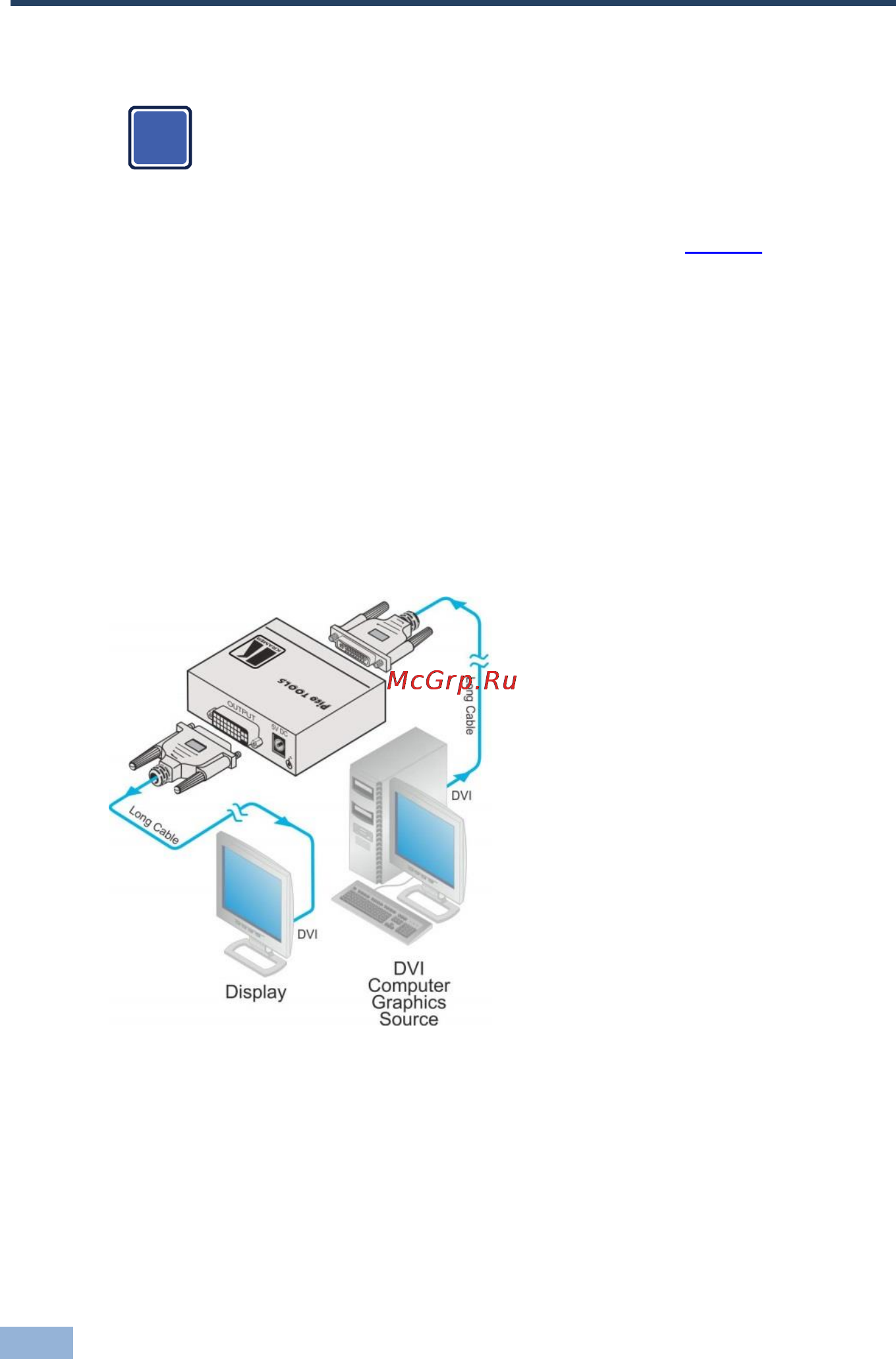

Figure 2: Connecting the PT-101HDCP DVI Repeater
