690T, 690R - Overview 5
5
3.1 Defining the 690T and the 690R SDI Fiber Optic
Transmitter and Receiver
Figure 1 and Figure 2 define the 690T and 690R, respectively.

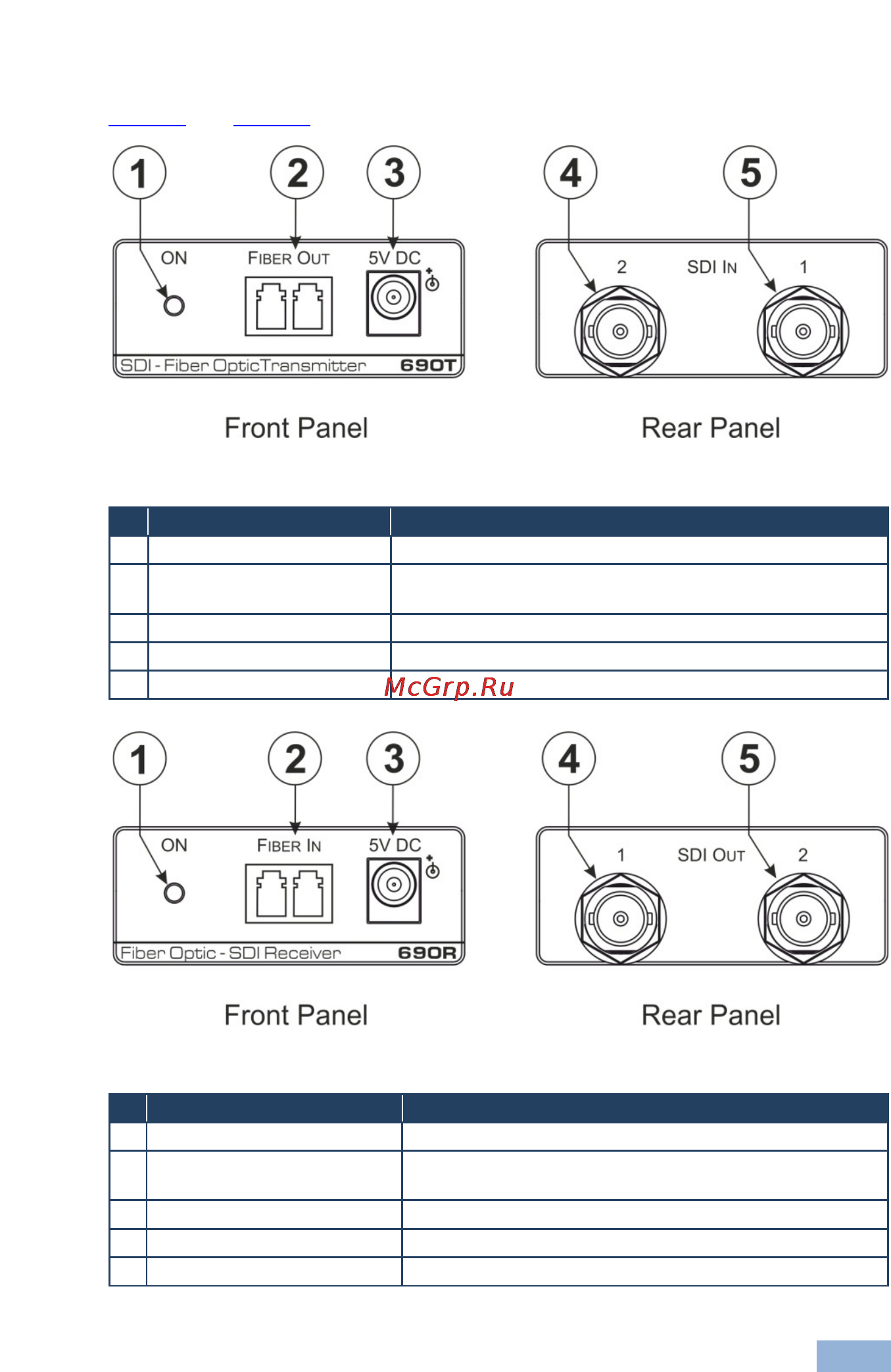

Figure 1: 690T SDI Fiber Optic Transmitter Front and Rear Panels
# Feature Function
1 ON LED Illuminates when receiving power
2 FIBER OUT Dual SFP
Connector
Connects to the dual optical connector on the 690R via
dual single mode cable
3 5V DC Connector Connect to the power adapter
4 SDI IN 2 BNC Connector Connect to the SDI source 2
5 SDI IN 1 BNC Connector Connect to the SDI source 1
Figure 2: 690R SDI Fiber Optic Receiver Front and Rear Panels
#
Feature Function
1 ON LED Illuminates when receiving power
2 FIBER IN Dual SFP
Connector
Connects to the dual optical connector on the 690T via
dual single mode cable
3 5V DC Connector Connect to the power adapter
4 SDI OUT 1 BNC Connector Connect to the SDI acceptor 1
5 SDI OUT 2 BNC Connector Connect to the SDI acceptor 2
