6 VA-4H - Defining the VA-4H 4-Channel HDMI EDID Controller

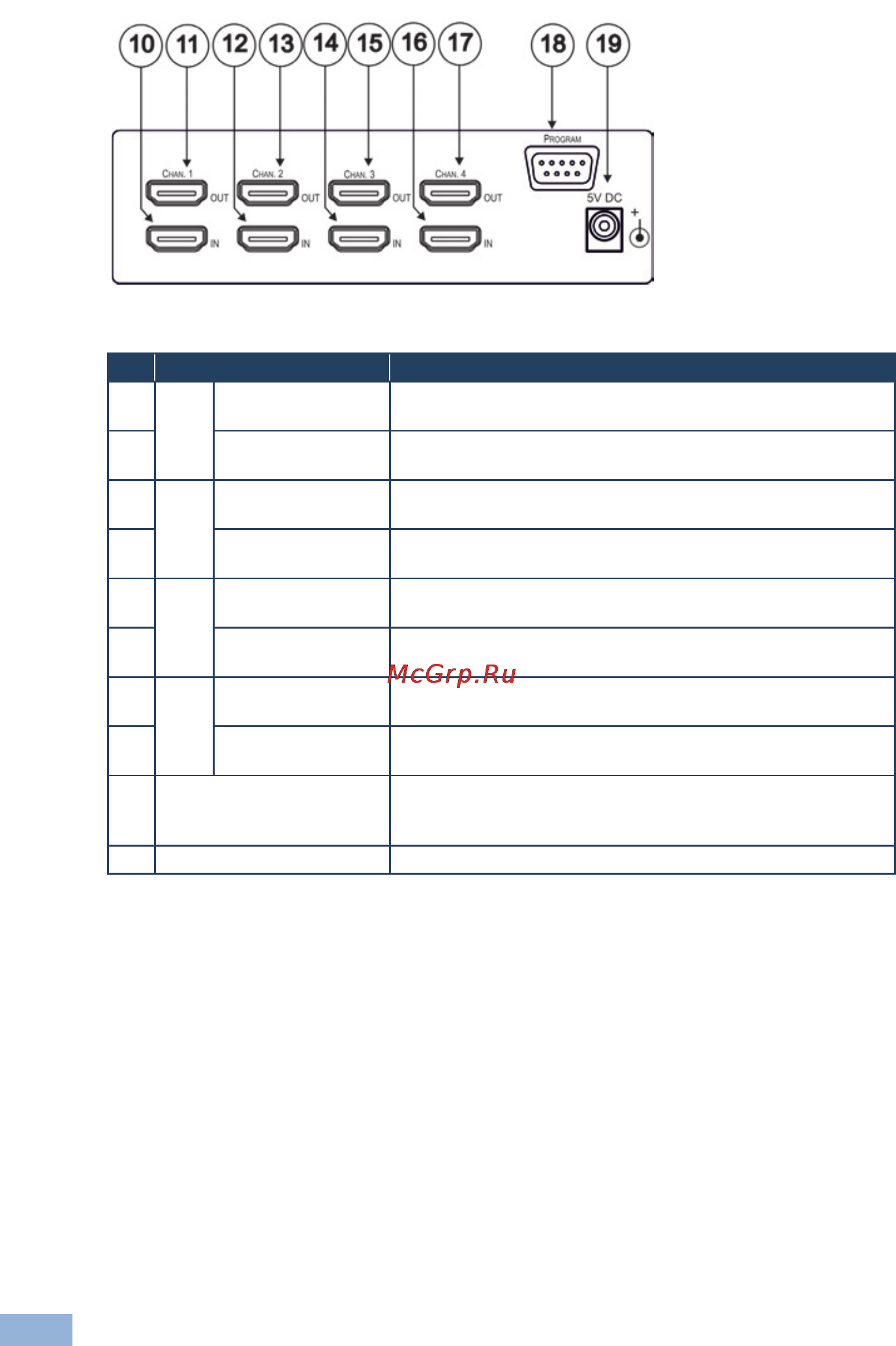

Figure 2: VA-4H 4-Channel HDMI EDID Controller Rear Panel

# Feature Function

CHAN. 1

IN HDMI

Connector

Connects to the channel 1 HDMI source

11 OUT HDMI

Connector

Connects to the channel 1 HDMI acceptor

CHAN. 2

IN HDMI

Connector

Connects to the channel 2 HDMI source

13 OUT HDMI

Connector

Connects to the channel 2 HDMI acceptor

CHAN. 3

IN HDMI

Connector

Connects to the channel 3 HDMI source

15 OUT HDMI

Connector

Connects to the channel 3 HDMI acceptor

CHAN. 4

IN HDMI

Connector

Connects to the channel 4 HDMI source

17 OUT HDMI

Connector

Connects to the channel 4 HDMI acceptor

18 PROGRAM RS-232

Connector

Connects to a PC for upgrading the device firmware (see

Upgrading the VA-4H Firmware document on the Kramer

Web site)

19 5V DC Connector Connects to the 5V DC power supply
