5 Connecting the VA-4H

Always switch off the power to each device before connecting it to your

VA-4H. After connecting your VA-4H, connect its power and then

switch on the power to each device.

To connect the VA-4H as illustrated in the example in

Figure 3:

1. Connect up to four HDMI sources (as an example, DVD players) to the

HDMI IN connectors.

2. Connect the HDMI OUT connectors to up to four HDMI acceptors (as an

example, displays with speakers).

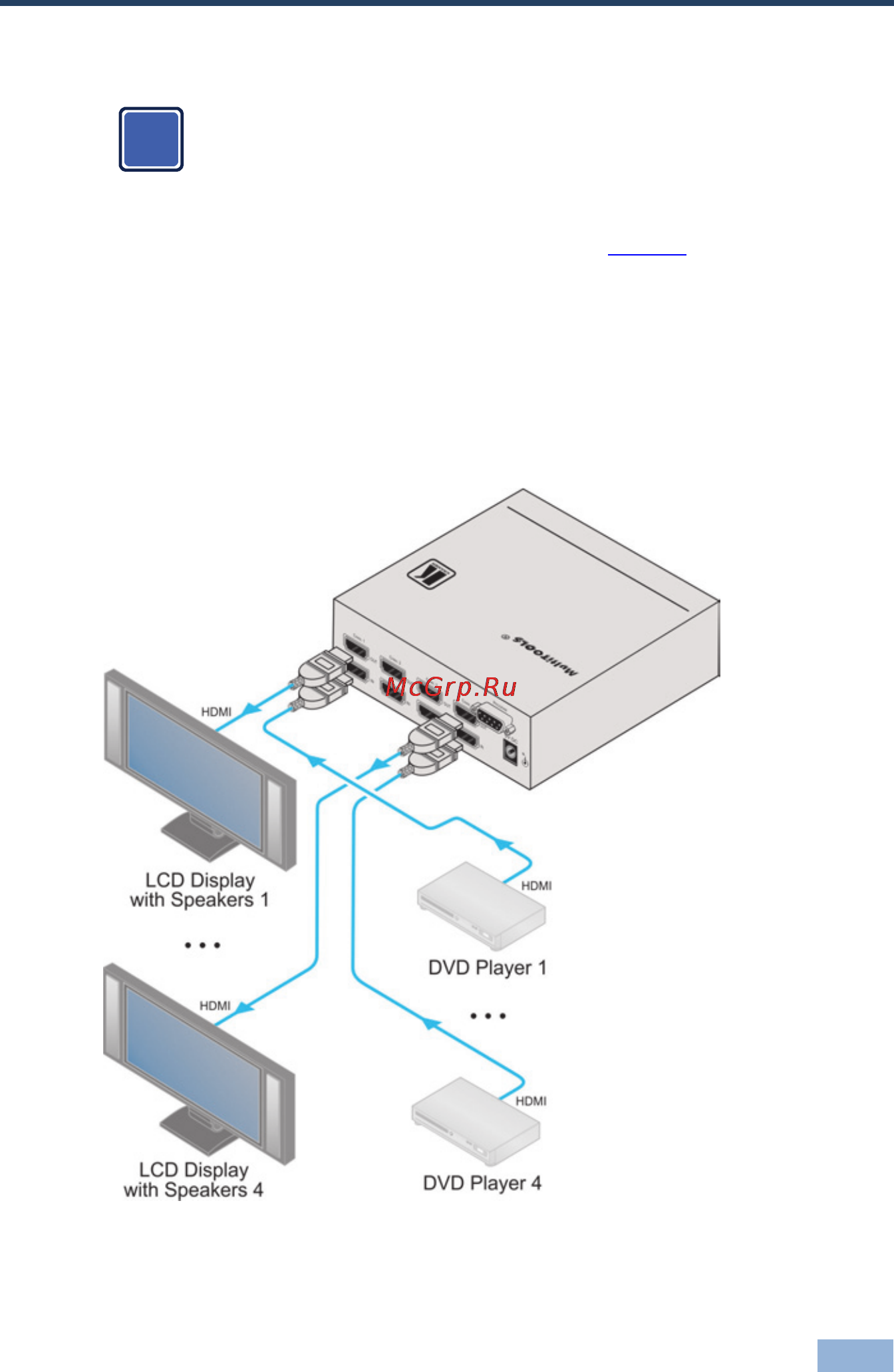

Figure 3: Connecting the VA-4H 4-Channel HDMI EDID Controller
