VA-4H - Defining the VA-4H 4-Channel HDMI EDID Controller 5

4 Defining the VA-4H 4-Channel HDMI EDID

Controller

This section defines the VA-4H.

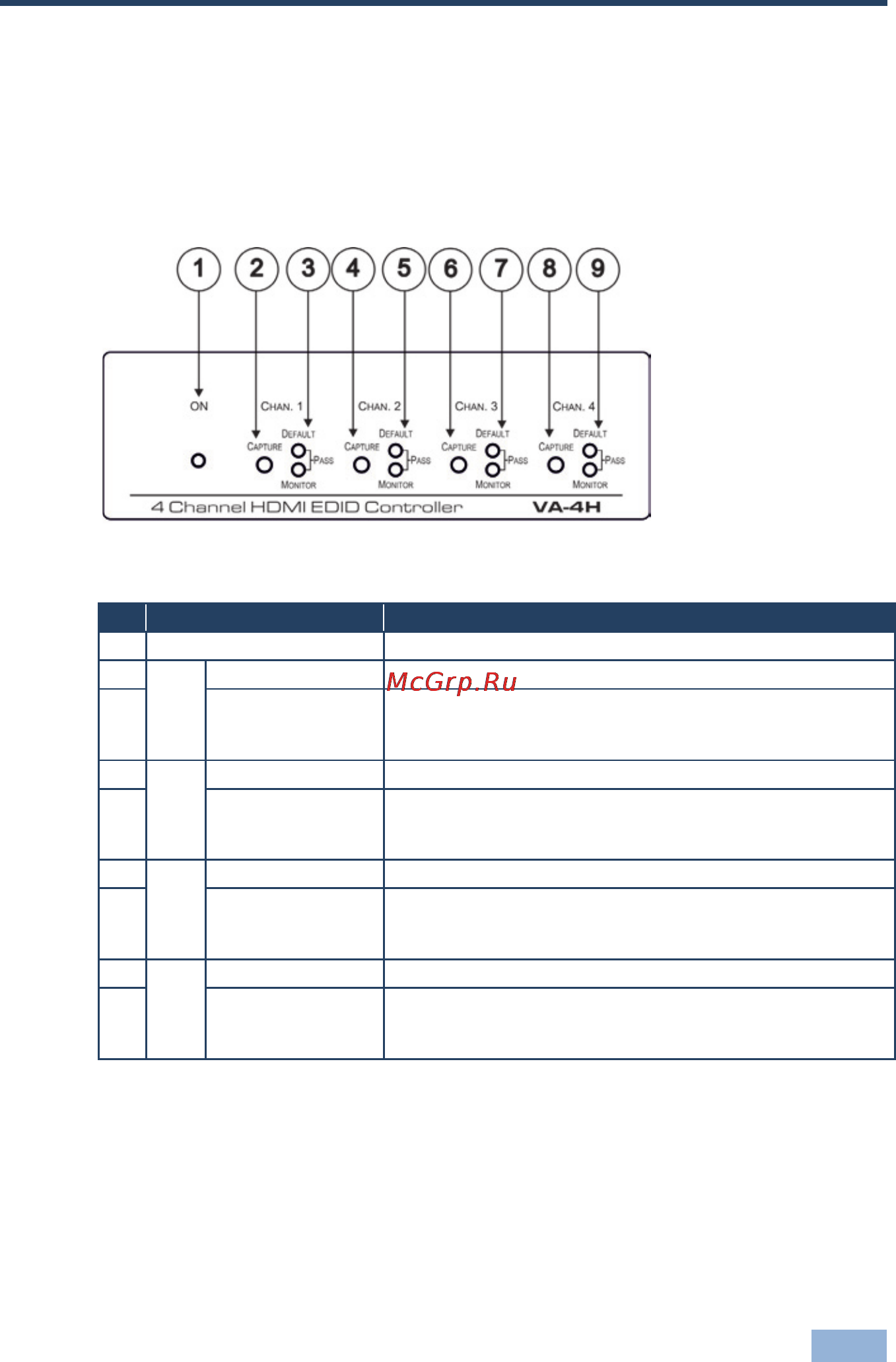

Figure 1: VA-4H 4-Channel HDMI EDID Controller Front Panel

# Feature Function

1 ON LED Illuminates green when 5V DC power is connected

CHAN. 1

CAPTURE Button Press to choose the channel 1 EDID source

3 DEFAULT

PASS

MONITOR LEDS

Upper LED illuminates red when default EDID is chosen,

both LEDS illuminate when pass-through is chosen, lower

green LED illuminates when the monitor EDID is chosen

CHAN. 2

CAPTURE Button Press to choose the channel 2 EDID source

5 DEFAULT

PASS

MONITOR LEDS

Upper LED illuminates red when default EDID is chosen,

both LEDS illuminate when pass-through is chosen, lower

green LED illuminates when the monitor EDID is chosen

CHAN. 3

CAPTURE Button Press to choose the channel 3 EDID source

7 DEFAULT

PASS

MONITOR LEDS

Upper LED illuminates red when default EDID is chosen,

both LEDS illuminate when pass-through is chosen, lower

green LED illuminates when the monitor EDID is chosen

CHAN. 4

CAPTURE Button Press to choose the channel 4 EDID source

9 DEFAULT

PASS

MONITOR LEDS

Upper LED illuminates red when default EDID is chosen,

both LEDS illuminate when pass-through is chosen, lower

green LED illuminates when the monitor EDID is chosen
