KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-40FW
8

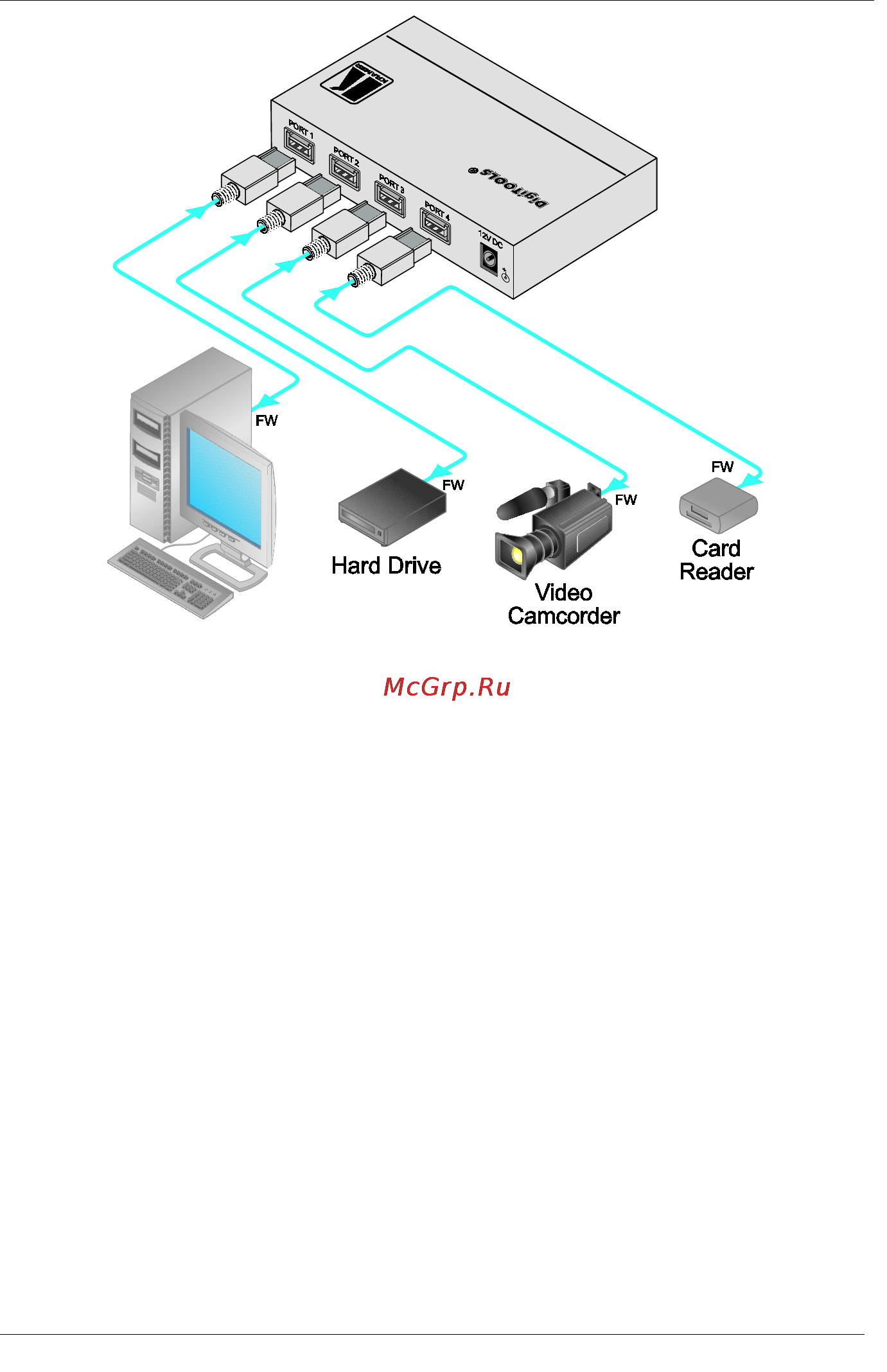

Figure 2: Connecting the VS-40FW FireWire® 800/1394b Repeater / HUB
5.1 Powering the FireWire® Devices
Each FireWire® device can derive its power in one of two ways:
• Independently, by connecting each FireWire® device to its own power
supply, while the VS-40FW is connected to the external 12V DC
power supply (provided with the VS-40FW)
• Via the VS-40FW that is connected to an external 12V DC power. In
this case, each of the four FireWire® devices can derive their power
(up to 1A per port) from the respective VS-40FW FireWire® port
