Your VS-40FW FireWire® 800/1394b Repeater / HUB

4 Your VS-40FW FireWire® 800/1394b Repeater / HUB

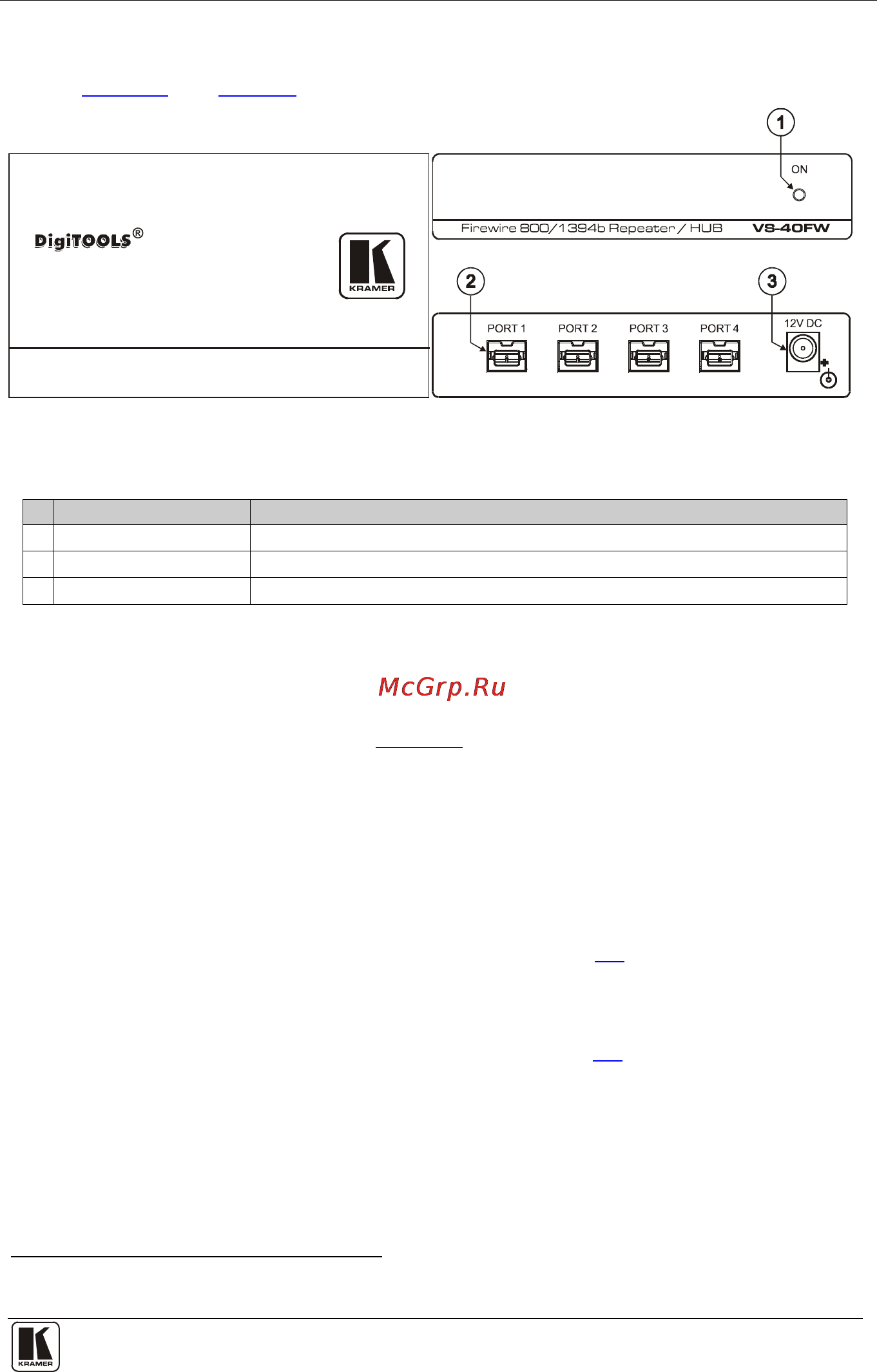

Figure 1 and Table 1 define the VS-40FW:

Figure 1: VS-40FW FireWire® 800/1394b Repeater / HUB

Table 1: VS-40FW FireWire® 800/1394b Repeater / HUB Features

Feature

Function

1 ON LED Lights green when receiving power

2 PORT 1 Connects to the FireWire® device (from 1 to 4)

3 12V DC +12V DC connector for powering the unit

5 Connecting the VS-40FW

To connect the VS-40FW FireWire® 800/1394b Repeater / HUB, as

illustrated in the example in

Figure 2, do the following:

1. Connect the PC to one of the ports (for example, PORT 1).

2. Connect up to three FireWire® devices to the remaining three ports

3. Connect the power to the FireWire® devices.

(for example: PORT 2 to a hard drive, PORT 3 to a video camcorder

and PORT 4 to a card reader).

4. Connect the 12V DC power adapter (see section 5.1) to the power socket and

connect the adapter to the mains electricity.

The ON green LED lights.

5. Turn the power ON on each device (see section 5.1).

1 Not all ports need to be connected. Any unused port should simply be left unconnected
