6
KDS-EN3, KDS-DEC3 - Overview
3.2 Defining the KDS-DEC3
Figure 2 defines the KDS-EN3.

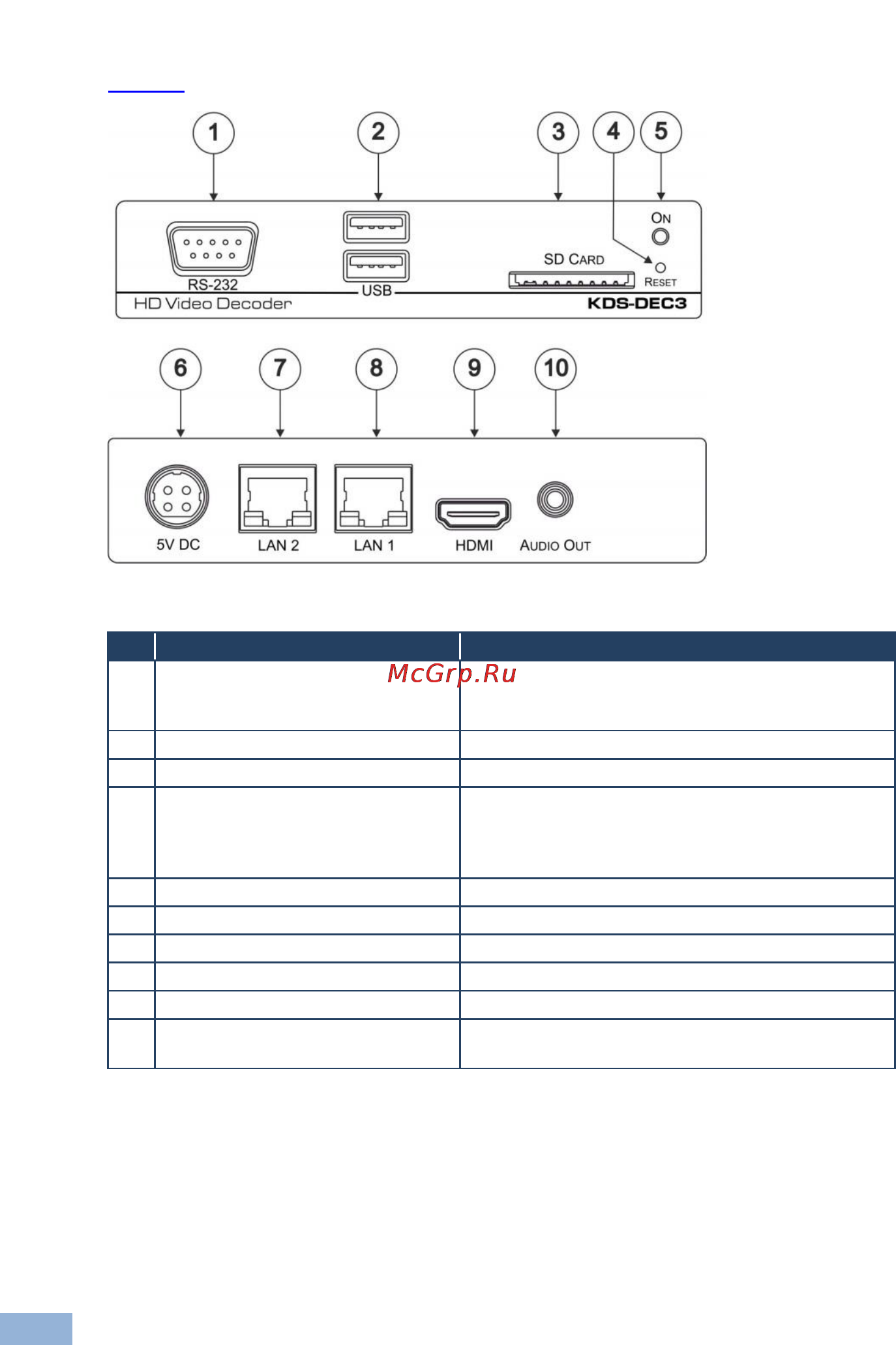

Figure 2: KDS-DEC3 HD Video Decoder
#
Feature
Function
1
RS-232 9-pin D-sub Connector
Connects to control an RS-232 device. A null-
modem cable (where transmit and receive lines
are cross linked) is required
2
USB Connectors (2)
Not currently supported
3
SD Card Slot
Not currently supported
4
RESET Button
Press and hold for less than 2 secs to reboot the
unit and keep all current settings
Press and hold for more than 5 secs to reboot the
unit and restore all factory settings
5
ON LED
Lights when power is connected to the unit
6
5V DC Connector
Connects to the 5V DC power supply
7
LAN 2 RJ-45 Connector
Connects to daisy-chain additional decoders
8
LAN 1 RJ-45 Connector
Connects to a network
9
HDMI Connector
Connects to a digital display
10
AUDIO OUT 3.5mm Mini Jack
Connector
Connects to an unbalanced stereo audio acceptor
