The Kramer RC-10TB 1-Button Contact Closure Switch

Congratulations on purchasing your Kramer RC-10TB single slot wall plate insert 1-Button

Contact Closure Switch which is ideal for using as a means of remote control in boardrooms

and conference rooms. It can be used with the SID-X1 step−in commander or any other

Kramer product with contact closure control.

The RC-10TB front panel has one momentary switching button. On the rear are remote

momentary contact closure terminal block connectors that connect to a remote switch terminal

block connector.

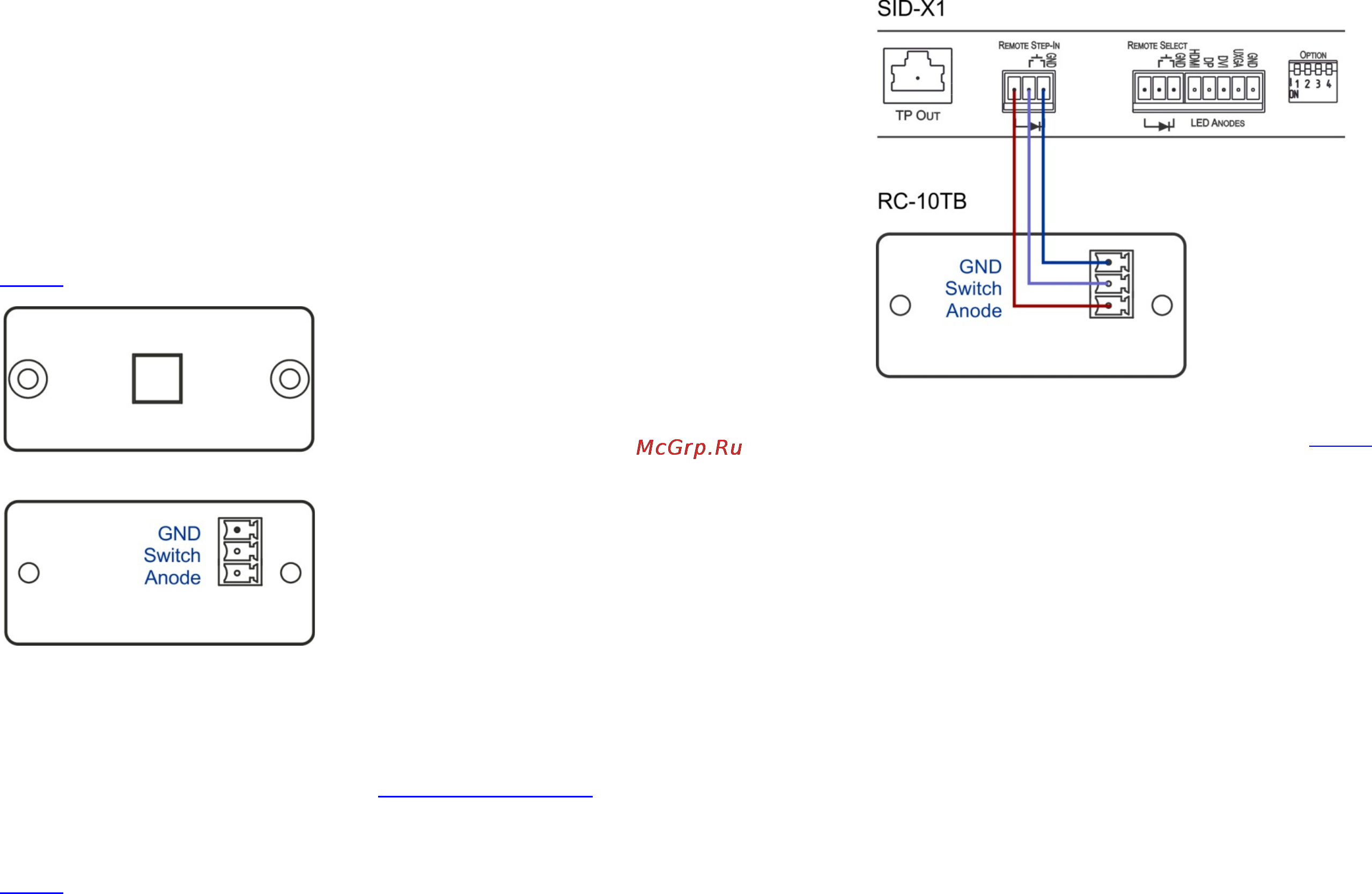

Figure 1 shows the RC-10TB front panel and the pinout on the rear:

Figure 1: RC-10TB Front Panel and Rear

The RC-10TB can remotely take control of the input of a machine via its remote contact

closure terminal blocks. For example, you can connect the RC-10TB to the REMOTE STEP-IN

contact closure terminal block connectors of the Kramer SID-X1 Step-In Commander

(download the up-to-date Kramer user manual at:

www.kramerelectronics.com), to remotely

take control of the input of the attached switcher, as well as a remote step-in LED to the

REMOTE STEP-IN terminal block on the rear panel of the SID-X1.

Figure 2 shows the pinout of the SID-X1 REMOTE STEP IN terminal block connector

connected to the rear panel of RC-10TB terminal block connector.

Figure 2: RC-10TB connected to an SID-X1 Unit

To connect the RC-10TB, as illustrated in the example in Figure 2:

1. Connect the first REMOTE STEP-IN pin (from the left side) to the anode pin of the

RC-10TB.

2. Connect the second REMOTE STEP-IN pin to the switch pin on the RC-10TB.

3. Connect the GND REMOTE STEP-IN pin to the GND pin on the RC-10TB.

Momentarily pressing the button on the RC-10TB activates the STEP-IN process.
