Active Wall Plate (WP) Devices
7
5 Active Wall Plate (WP) Devices
Sections 5.1 to 5.7 describe the following active wall plates:
WA-20N (refer to section 5.1)
WA-21N (refer to section 5.2)
WA-22N (refer to section 5.3)
WA-23N (refer to section 5.4)
WV-11N (refer to section 5.5)
WV-12N (refer to section 5.6)
WV-20N (refer to section 5.7)
5.1 WA-20N Twisted-Pair Audio Receiver
The Kramer WA 20N—a twisted-pair audio receiver—is a dual RCA
connector from 6-pole + 2-pole terminal blocks, as Figure 6 illustrates:

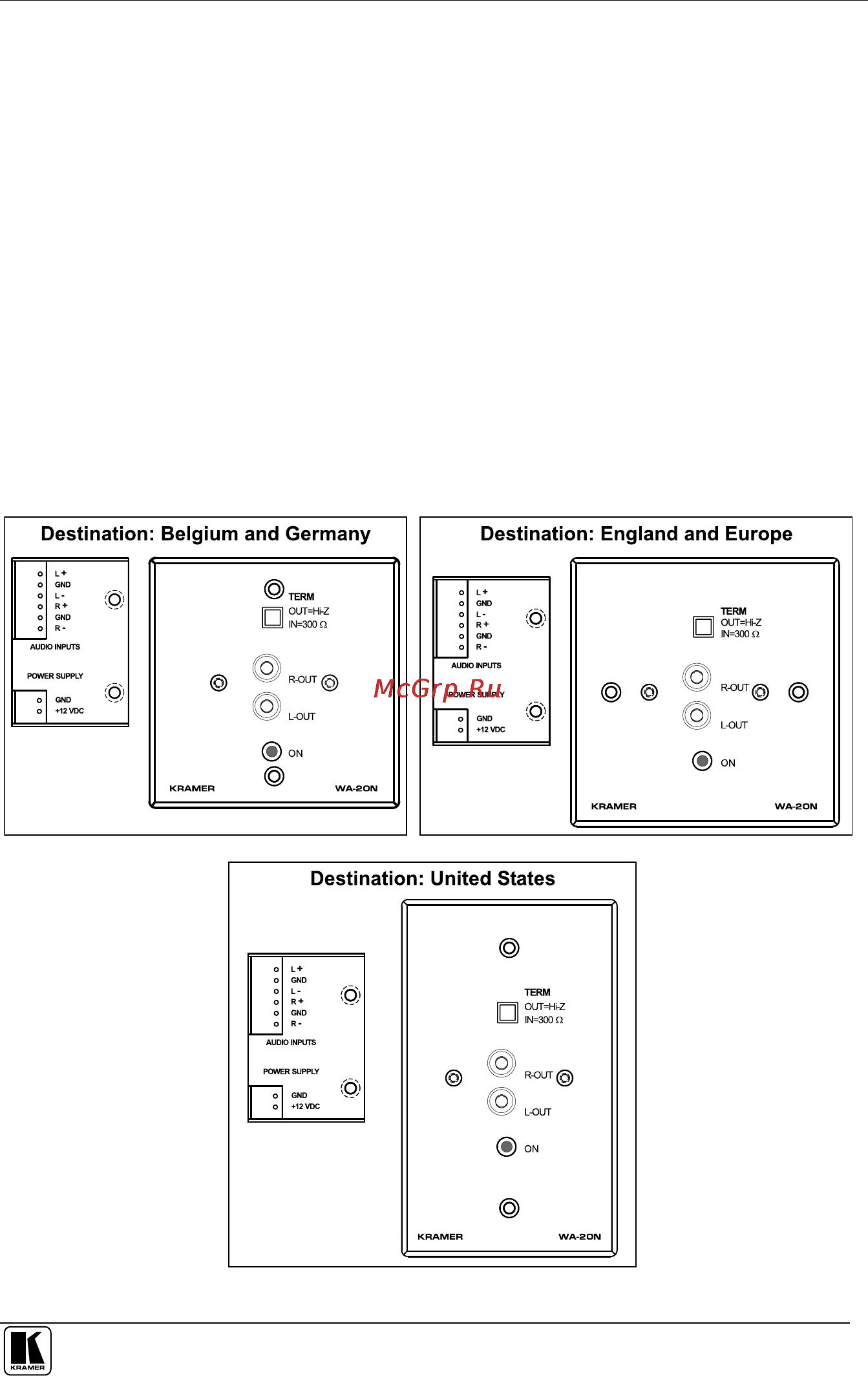

Figure 6: WA-20N Twisted-Pair Audio Receiver
