KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing Your Rack Adapter
14
Hole for TOOLS
Hole for Pico TOOLS
Hole for Extrusion TOOLS

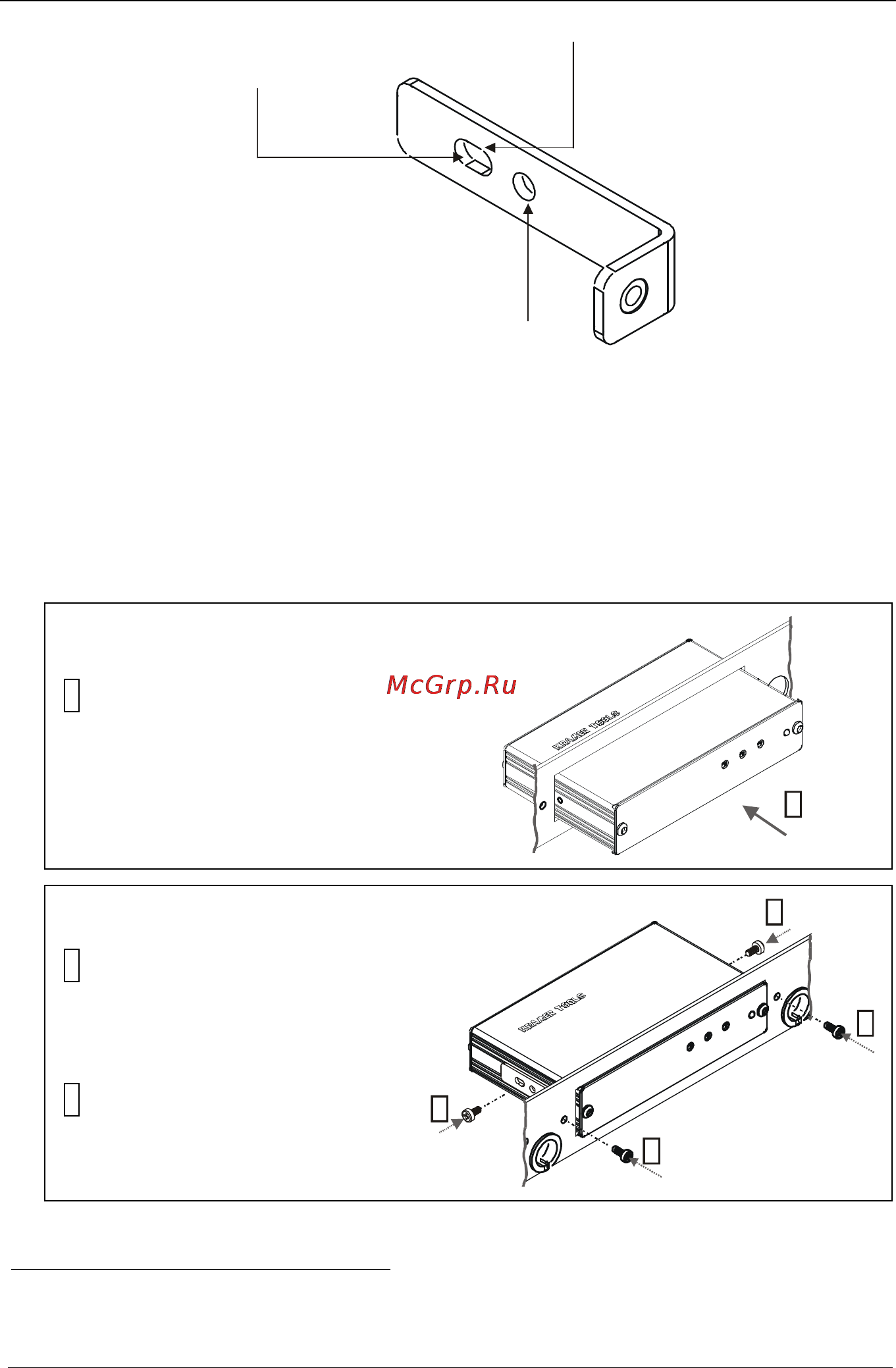

Figure 10: The Connecting Bracket
5.2 Installing a Kramer Extrusion Type TOOL
When installing an extrusion type Kramer TOOL, check if the front panel is
protruding. If not, follow the instructions in section 5.1 to connect it to the
rack adapter.
If the front panel is protruding, do the following:
1. Insert the TOOL through
the appropriate front
opening of the rack
adapter.
1
2. Connect the brackets to the
TOOL using two
1
of the
screws provided with the
rack adapter kit
2
.
3. Connect the brackets to the
rack adapter.
3
3
2
2
1 The number of screws provided with each rack model differs
2 Since extrusion TOOLS do not have screws attached to each side
