Installing Your Rack Adapter

5 Installing Your Rack Adapter

This section describes how to install Kramer TOOLS and Pico TOOLS.

5.1 Installing a Kramer TOOL or a Kramer Pico TOOL

When connecting a Kramer TOOL or a Pico TOOL:

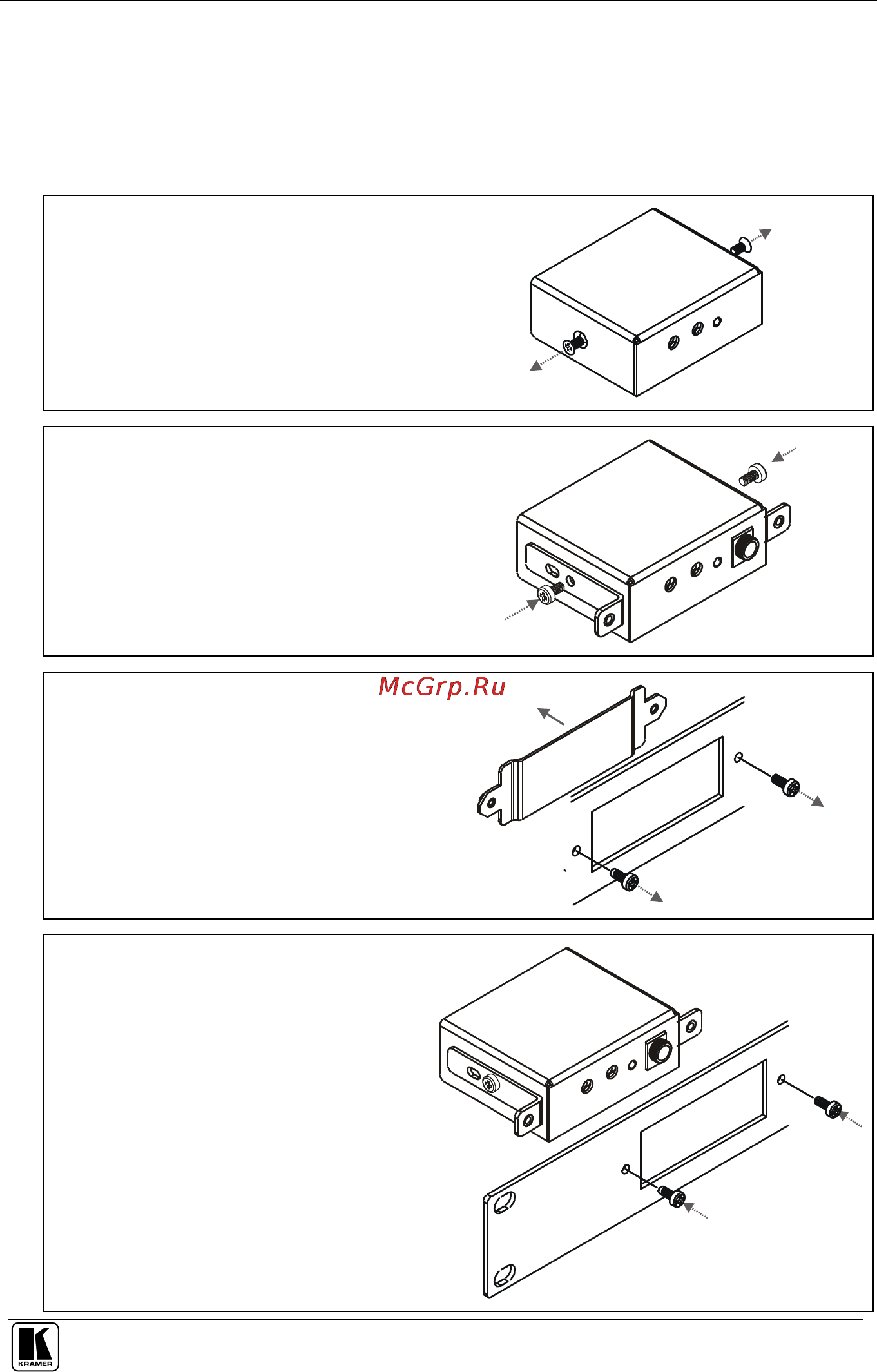

1. Remove the side panel screws

(one on each side) from the

TOOL.

2. Insert the screws provided

with the rack adapter kit (one

on each side) through the

correct holes on the brackets

(see Figure 10).

3. If required, remove the blank

panels from the rack adapter

openings.

4. Use the same screws to attach

the bracket ears onto the rack

adapter panel from its rear

side.

If a blank panel is not

attached to the rack adapter

opening, use two M3x8

Philips screws (provided with

the kit) to connect the bracket

ears to the rack adapter.
