Mounting on the Kramer RK-13 Rack Adapter

5 Mounting on the Kramer RK-13 Rack Adapter

The underside of the RK-13 includes a set of screw holes that are suitable for

mounting any combination of units.

To mount the units on the RK-13, as illustrated in Figure 1, do the following:

1. Place the first unit on the rack (for example, the Kramer VP-2K).

2. Hold both the VP-2K and the RK-13 with your hands and turn them upside

down.

3. Insert four M3x5 screws (supplied with the unit) through the holes on the

RK-13 that fit the holes on the underside of the VP-2K (as illustrated in

Figure 2).

4. Tighten the screws.

5. Rotate the RK-13 horizontally with the unit connected.

6. Place the next unit next to the unit that is already mounted.

7. Repeat steps 2 to 6 for each other unit.

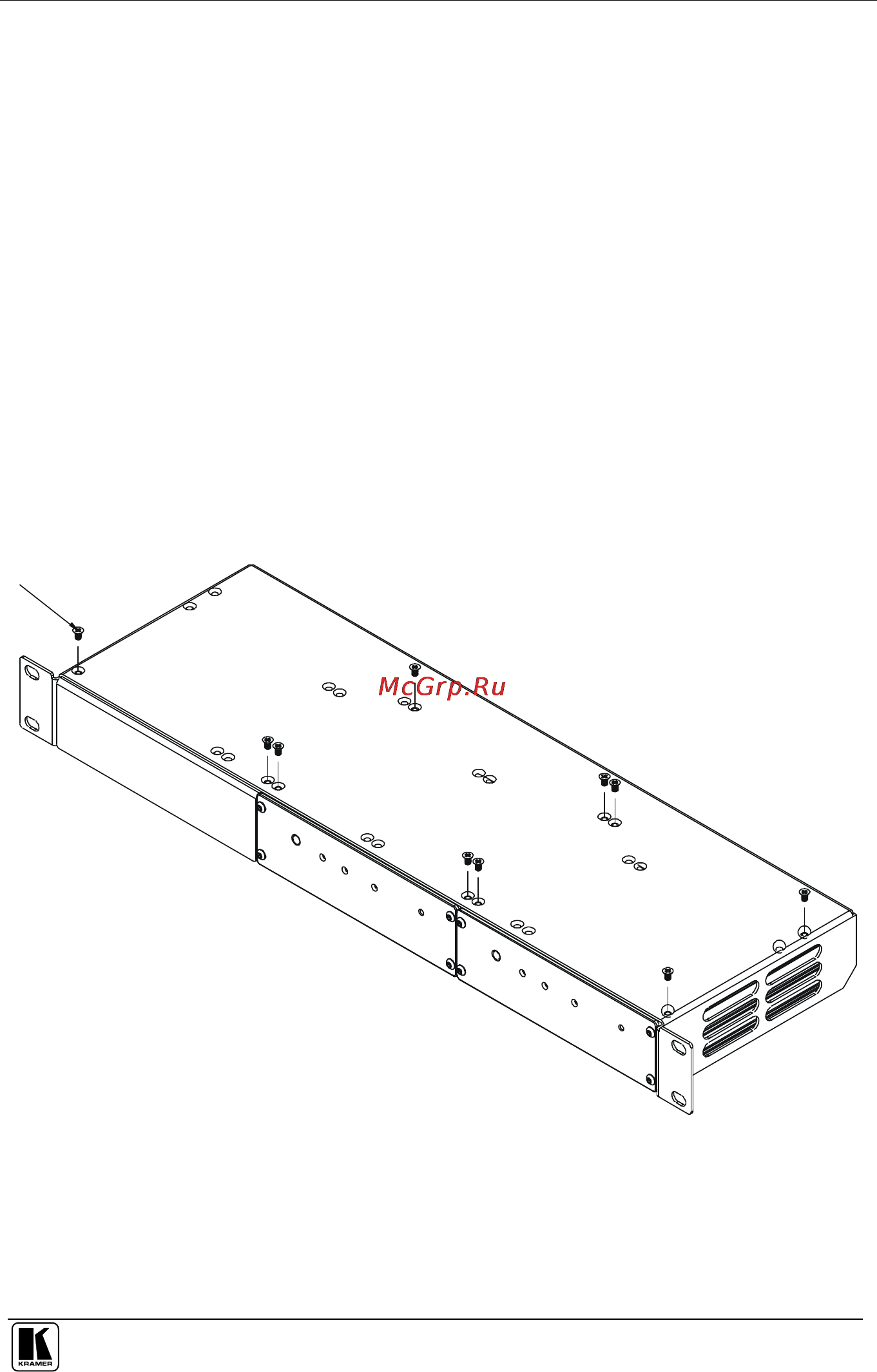

M3x5 Undercut Screw

Figure 2: RK-13 Rack Adapter – Underside
