RK-6PS - Defining the RK-6PS

4.1.2 6.5” Installation combinations

You can mount one or two Kramer 6.5” products in a 19" 1U rack using the RK-6PS

rack adapter and close-up the empty space(s) with blank panels (see in

Section 4.1.3).

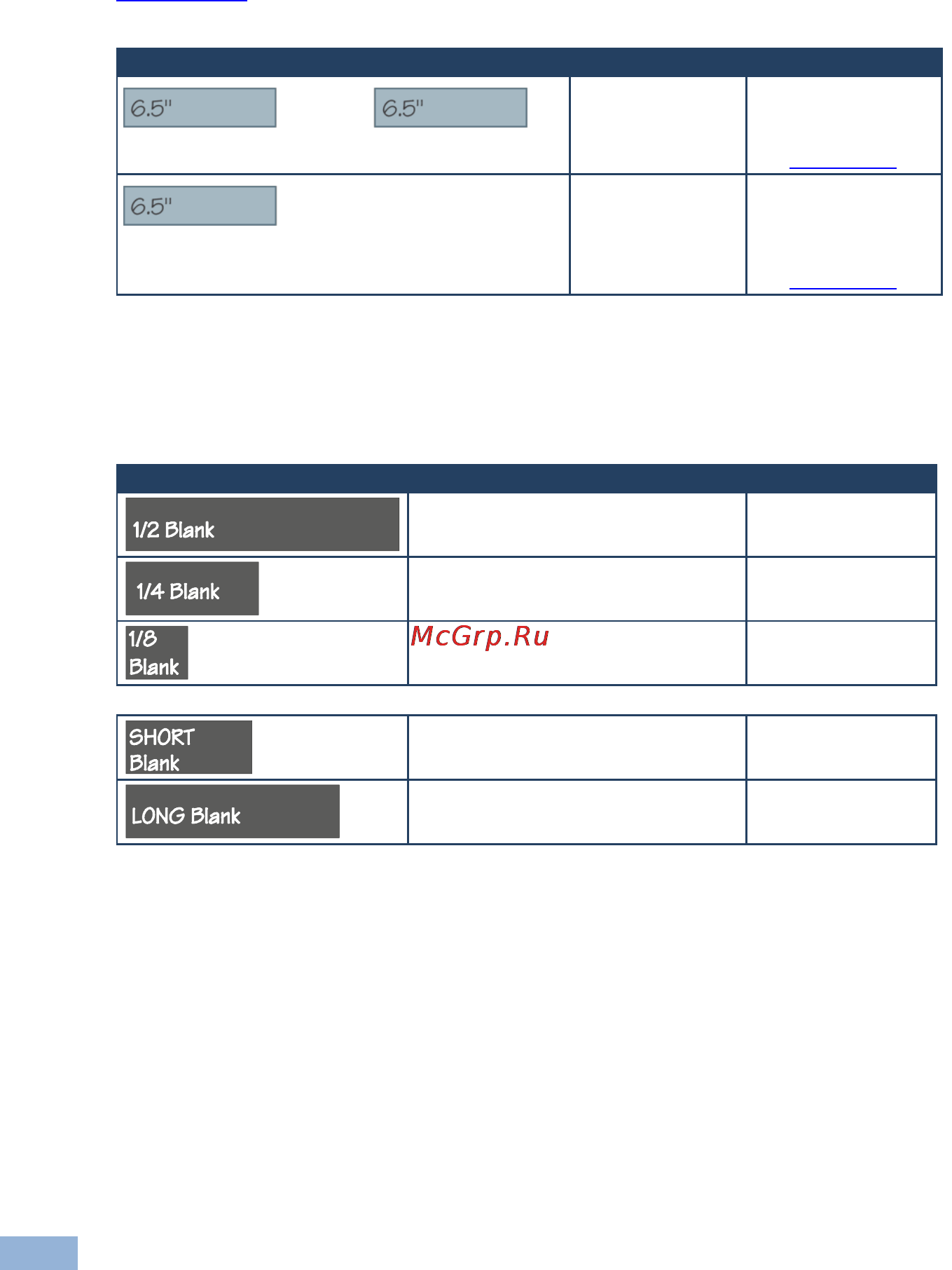

Mounting Kramer 6.5"-1U Devices on the RK-6PS

For example:

Notes:

 1 VM-50V

 1 VA-50P

Use the short blank

panel to close the gap

between the units,

see Section 4.1.3

 1 VM-30AV

Use one long and one

short blank panel to

close the gap

between the units,

see Section 4.1.3

4.1.3 Using Blank Panels

Different types of blank panels are available and are used to cover-up gaps.

Appearance

Blank Panel Description

Part Number

PNL-BLANK/1/2U-19"

60-900013

PNL-BLANK/1/4U-19"

60-900014

PNL-BLANK/1/8U-19"

60-900015

For 6.5”-1U units only:

PNL-BLANK/SHORT6.5"1U

With two 6.5” devices

60-900016

PNL-BLANK/LONG6.5"1U

With one 6.5” device and a short blank

60-900017
