Your PT-1PS CAT5 Power Supply
3
capacitance that degrades the frequency response of the machines. For shorter
distances, of 50m or so, shielded twisted pair (STP) cable is preferred because
it provides protection from interference (degradation is non-apparent).
For a long-range application, unshielded twisted pair (UTP) cable is preferred.
However, the unshielded twisted pair (UTP) cable should be installed far
away from electric cables, motors etc., which are prone to create electrical
interference.
4 Your PT-1PS CAT5 Power Supply

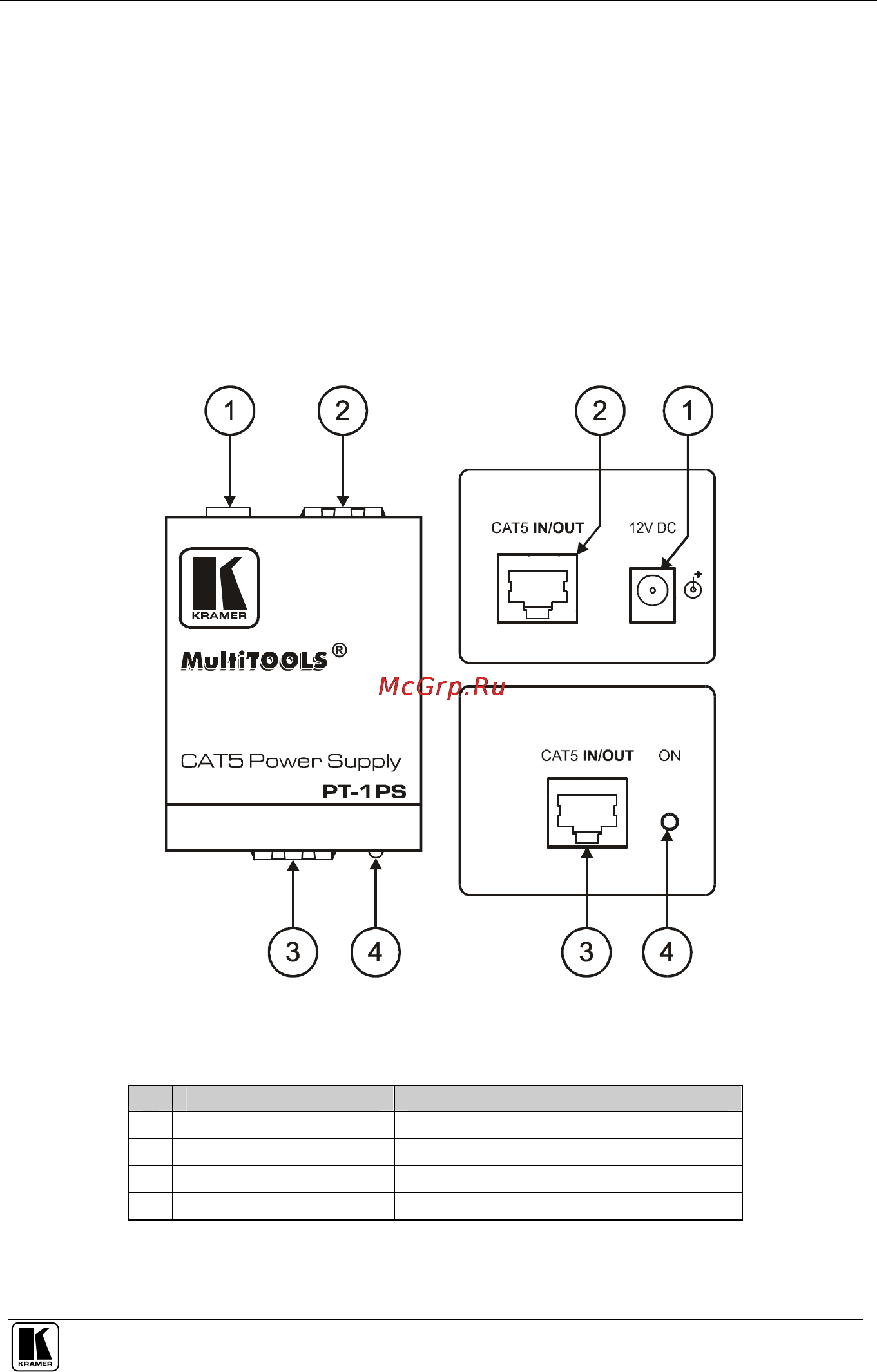

Figure 1 and Table 1 define the PT-1PS CAT5 Power Supply:
Figure 1: PT-1PS CAT5 Power Supply
Table 1: PT-1PS CAT5 Power Supply Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 CAT5 IN/OUT Connector Connect to the CAT5 cable
3 CAT5 IN/OUT Connector Connect to the CAT5 cable
4 ON LED Illuminates when receiving power
