KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting a PT-1PS CAT5 Power Supply

5 Connecting a PT-1PS CAT5 Power Supply

To connect the PT-1PS, do the following:

1. Connect a transmitter (for example, the Kramer PT-110 XGA Line

Transmitter) to the CAT5 IN/OUT connector

on the PT-1PS.

2. Connect the other CAT5 IN/OUT connector to a receiver (for example, the

Kramer TP-120 XGA Line Receiver).

3. Connect the 12V DC power adapter to the power socket on the PT-1PS and

connect the adapter to the mains electricity.

The ON LED illuminates.

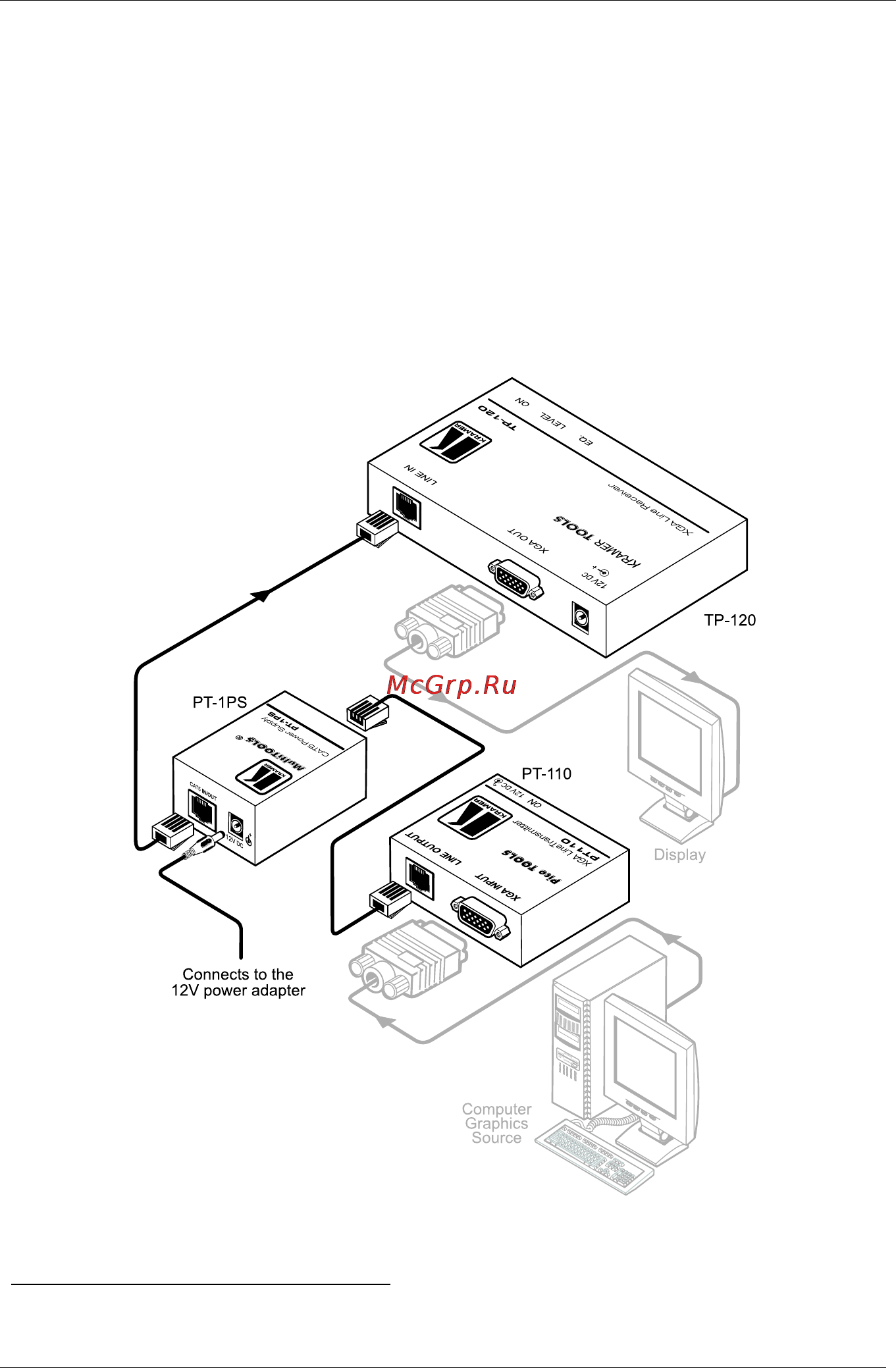

Figure 2: Connecting the PT-1PS CAT5 Power Supply

1 Either one of them
