ASPEN 1616 AND 3232 RCP CONTROL PANELS

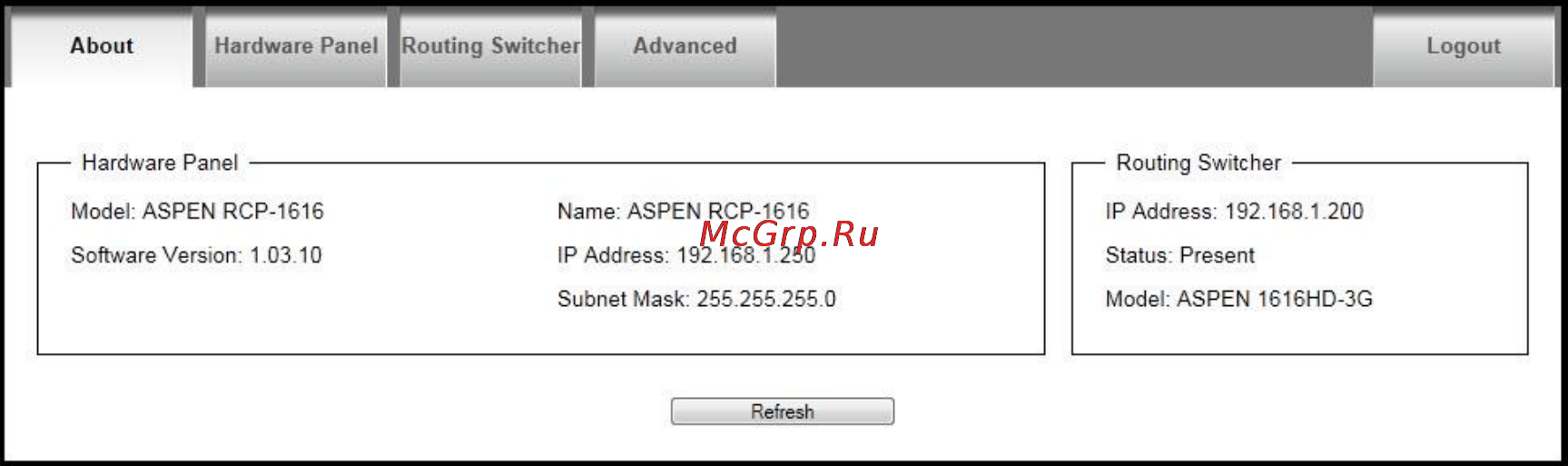

After a successful login, you will be provided with additional tabs as shown below.

The “refresh” button will re-read the current settings in the RCP.
