Kramer Aspen RCP-3232 [22/52] Overview

SIERRA VIDEO

Routing Switcher

Overview

There can be several routing switchers and/or RCP panels on a network at the same time

provided they are at different IP addresses.

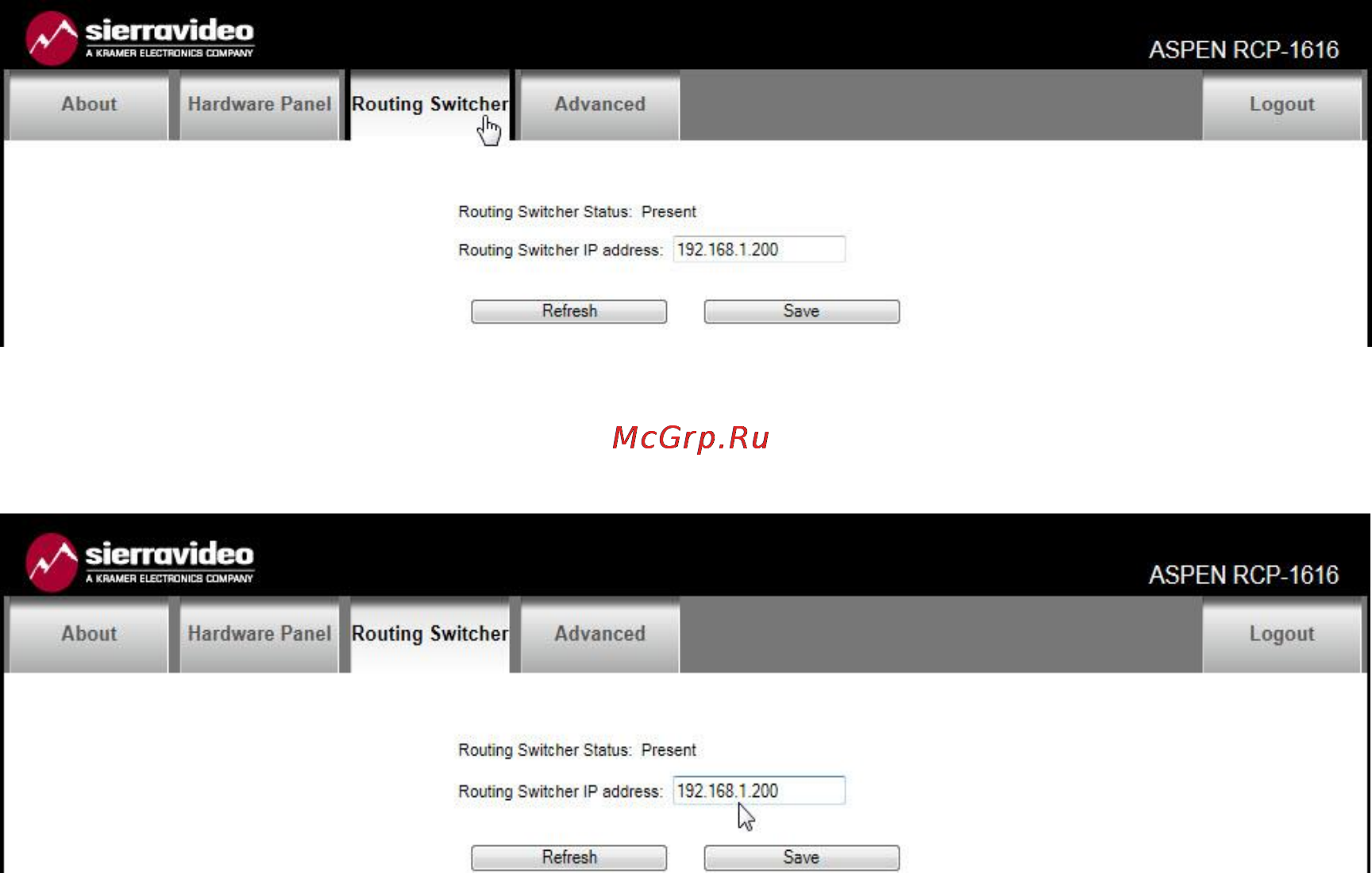

Select the tab “Routing Switcher” and enter the IP address of the routing switcher to be

controlled.

Place your curser in the box and enter the IP address of the routing switcher you wish to

control.
