ASPEN 1616 AND 3232 RCP CONTROL PANELS

Name

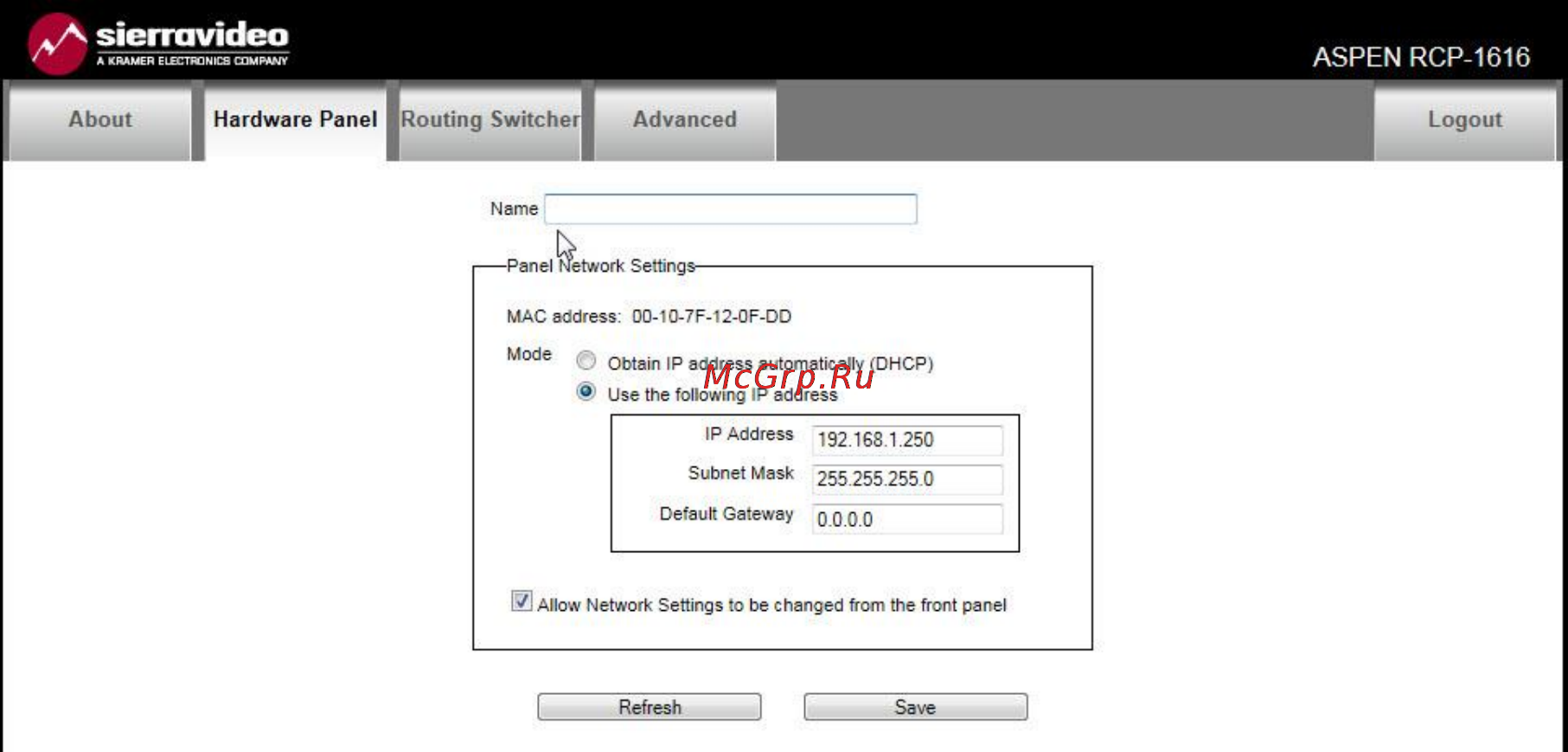

The RCP can be assigned a name if desired, i.e. Edit A, Production……

To change name of the RCP place the curser in the box and type in a new name.

Make any changes necessary and press “Save” to implement changes.
