Kramer Aspen RCP-3232 [23/52] System information

ASPEN 1616 AND 3232 RCP CONTROL PANELS

Advanced

The “Advanced” tab allows access to “engineering” settings such as button brightness,

changing password, software updates, etc.

Clicking on the bars on the lefthand side of the screen gives access to adjustments and

status.

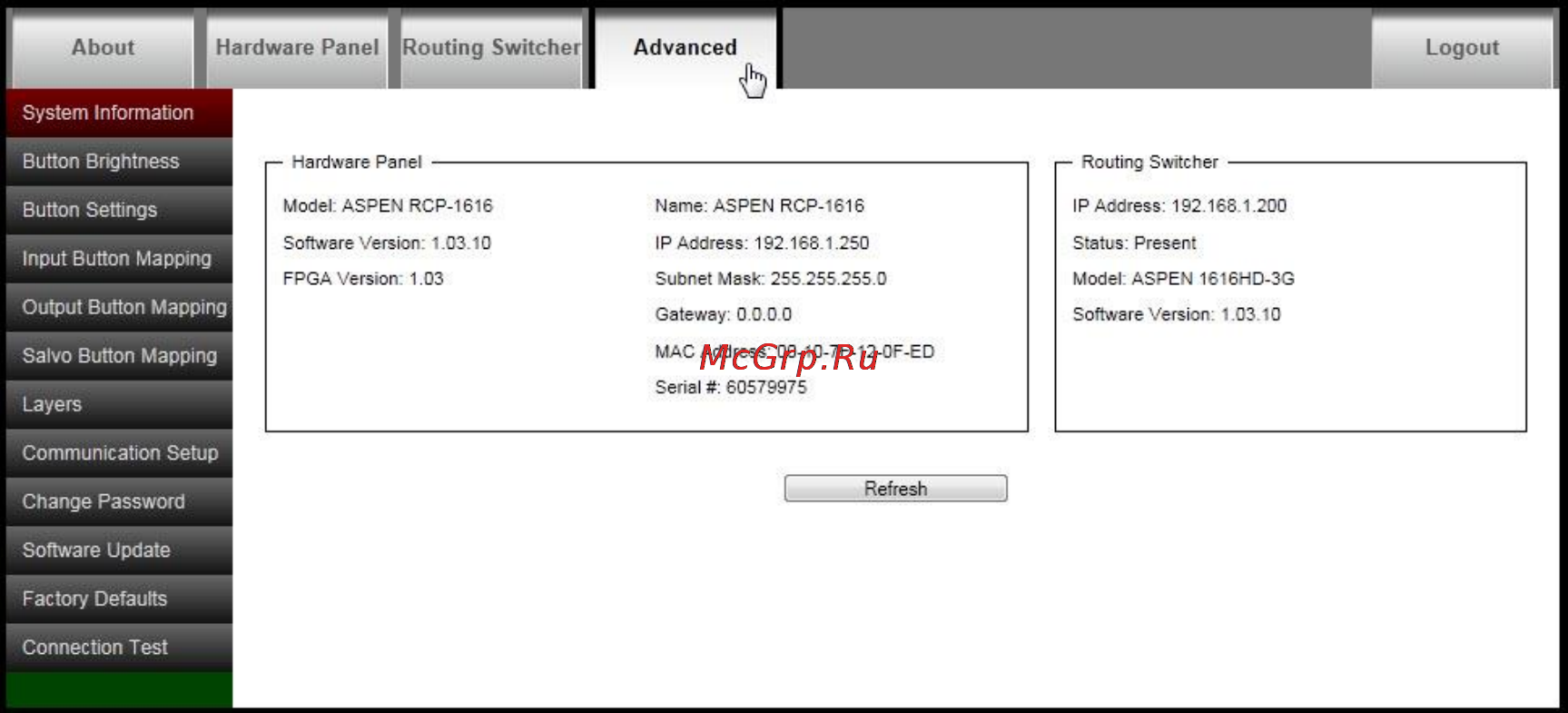

System Information

The “System Information” tab provides an overview of the system status and current

configuration settings.
