Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers

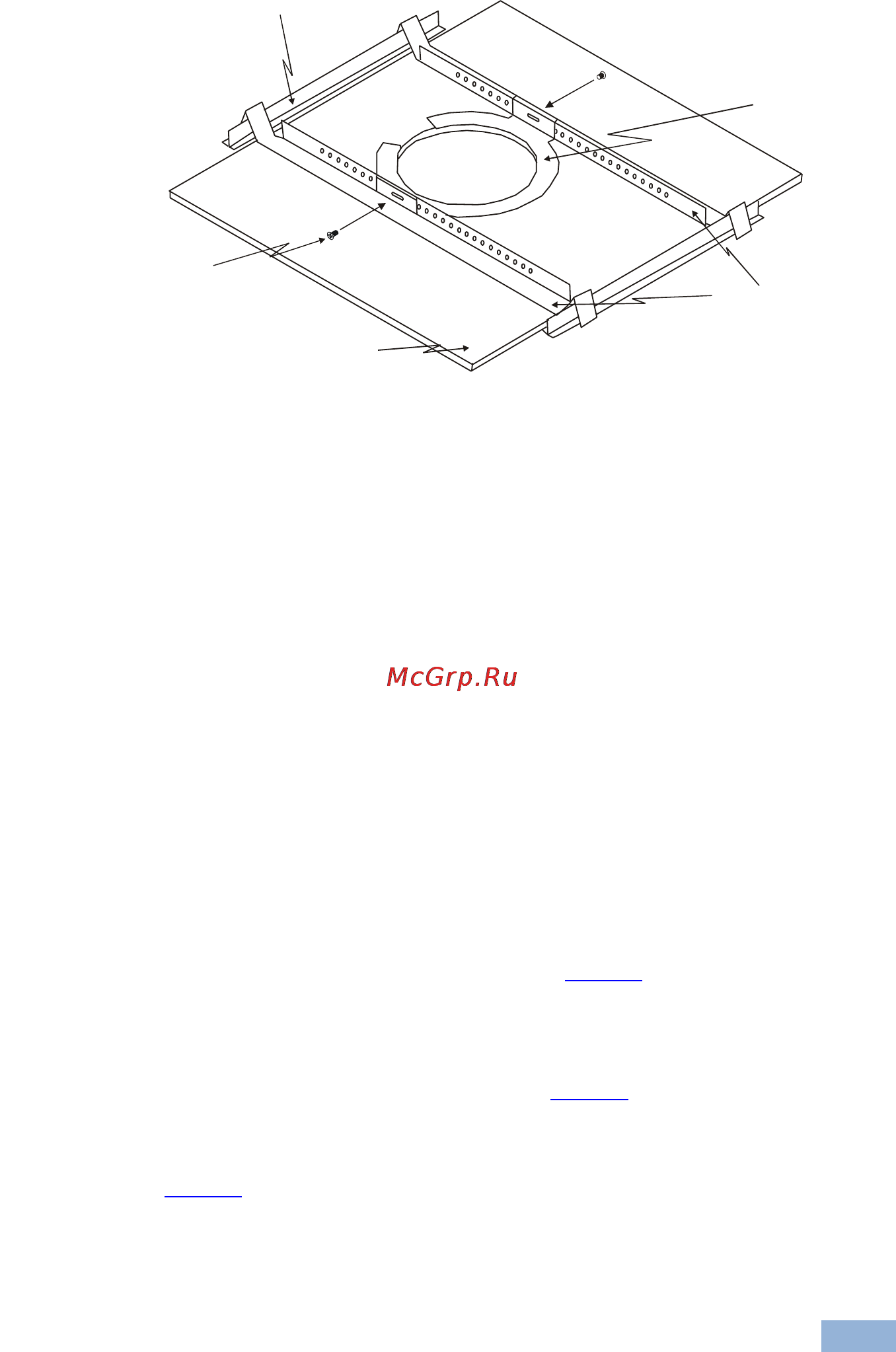

Figure 4: Mounting the Galil 6-C

2. Place the tile rails on the tile and snap them into the two tabs on the C-ring.

Align the rails so that the ends extend over the T-channel grid.

3. Insert a screw through each tab on the C-ring to secure the rails.

4. Connect the speaker wires to the appropriate connector terminals:

 PIN 1 and PIN 2 are connected internally and are positive (+)

 PIN 3 and PIN 4 are connected internally and are negative (-)

Screw the hold-down screws on the connector until tight, using a small

screwdriver.

You can connect the speakers in the two following possible layouts:

 Wiring in parallel: connect the wire pair of the subsequent speaker to

PIN 2 and PIN 3. When one input connector is removed, subsequent

speakers will remain connected (see Figure 3)

 Daisy-chaining: connect the wire pair of the subsequent speaker to

PIN 1 and PIN 4. When one input connector is removed, subsequent

speakers will be disconnected (see Figure 3)

5. Plug the connector into the socket in the terminal cup of the speaker (see

Figure 5).

6. Run the wires through the wires’ opening in the input terminal cover plug

and then into the terminal block connector of the speaker.

T-channel Grid

Support Ring

Screws

Ceiling Tile

Tile Rails

C-ring
