Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers

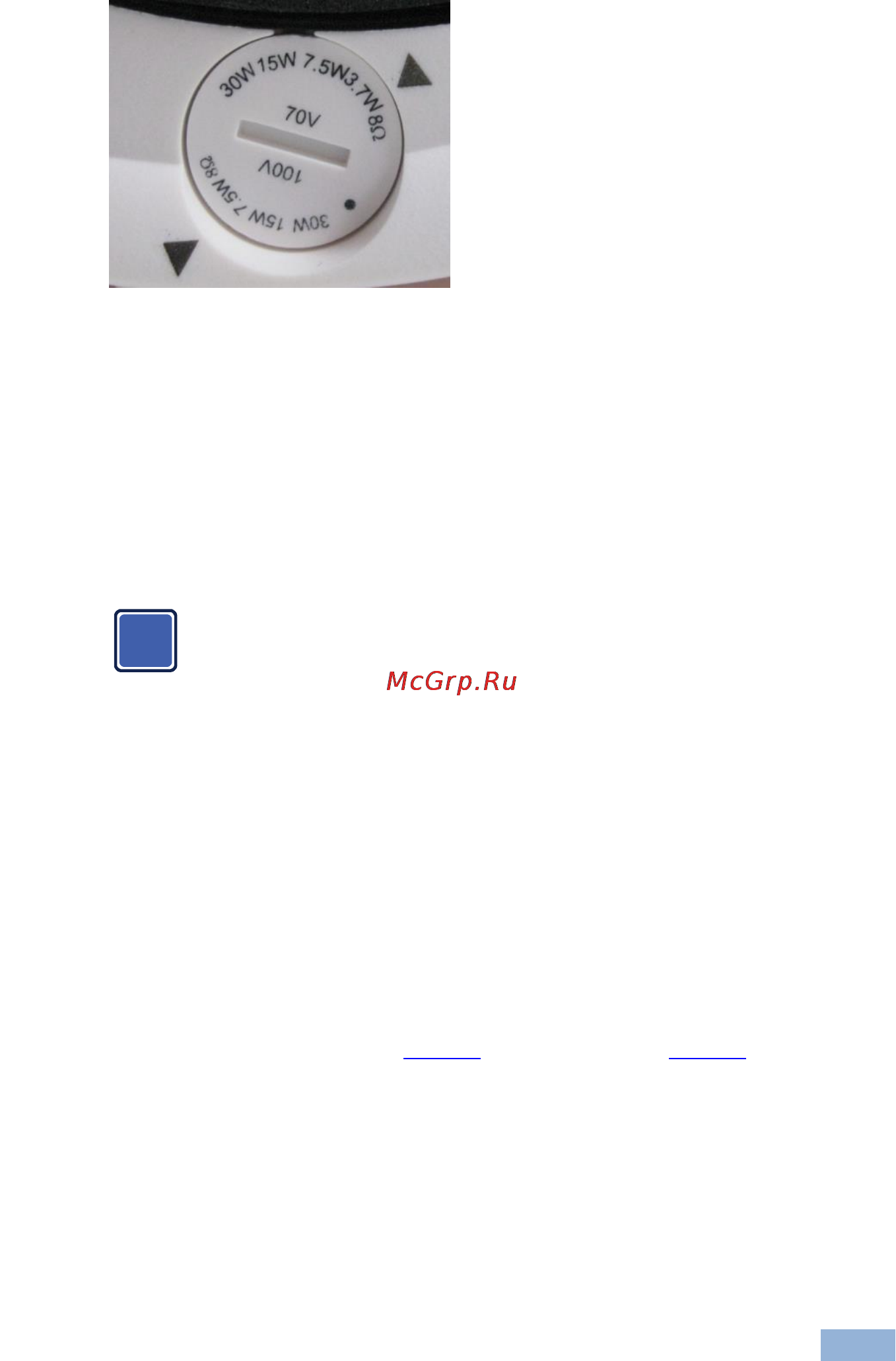

Figure 7: Adjust Tap Selector

11. Install the grilles to the speakers:

 Push the grille fastener into the hole in front of the baffle

 Press the grille into place until the front of the grille is flush with the rim

of the baffle

 Check that the grille is securely seated

To remove the grille, insert two bent paper clips into the holes in the

grille and carefully pull it down. Repeat this around the perimeter of

the grille until it is completely removed.

5.4 Setting up an Array Installation

When installing Galil 6-C in an array installation layout, you have to define the

distance between speakers as well as the layout pattern (square or hexagonal).

The distance between speakers is set according to the speakers’ dispersion

angle, the uniformity of the coverage desired and the budget.

The coverage angle of the speaker determines the coverage area and the number

of speakers required in the array installation. Two patterns are usually used for

array installations, square (see Figure 8) or hexagonal (see Figure 9), depending

on the shape of the installation area. The speakers are positioned according to

their coverage area.
