Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers

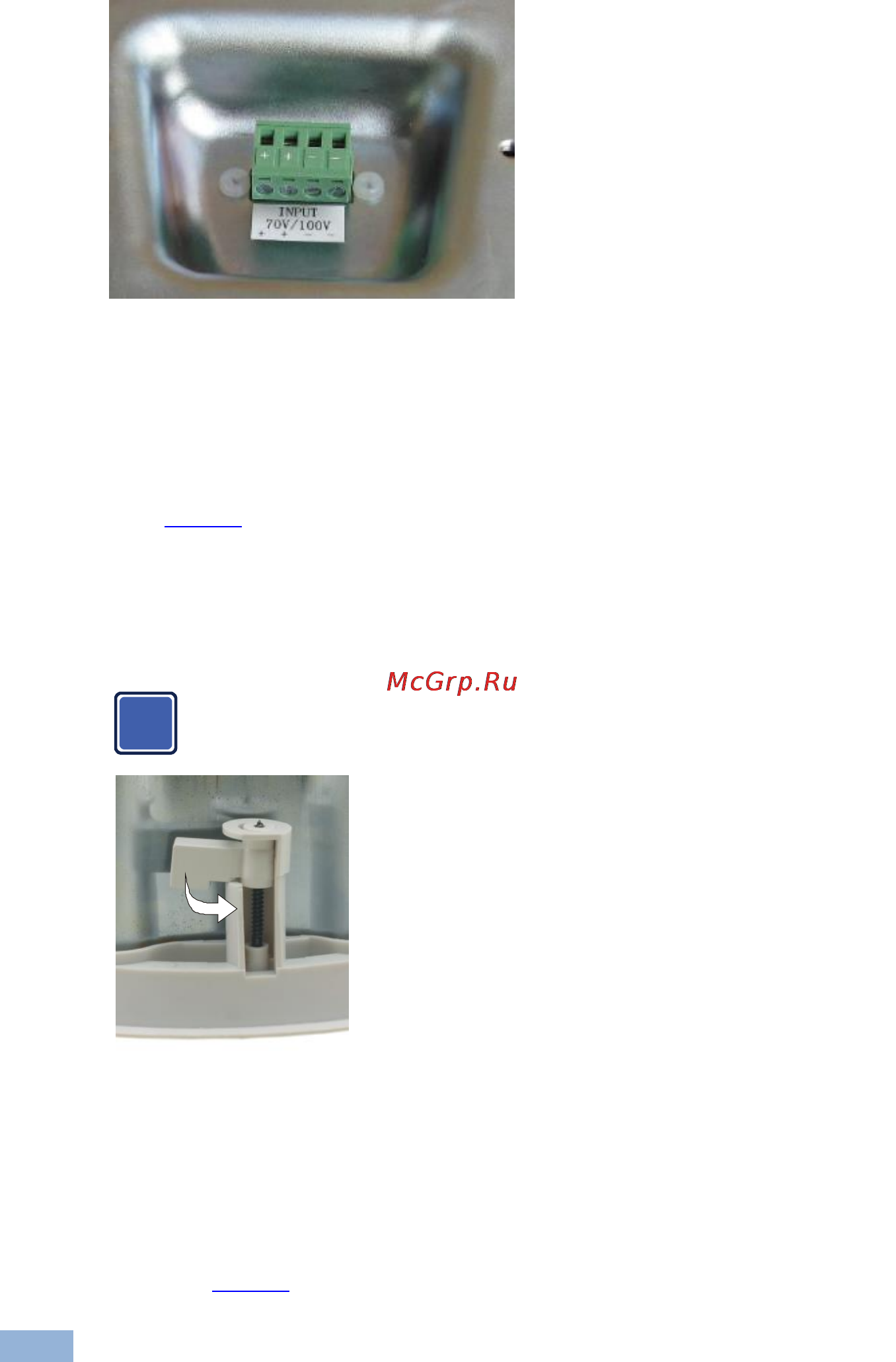

Figure 5: Plugging and Securing the Cable

7. Push the speaker into the ceiling hole until the front baffle rim is leveled with

the ceiling.

8. Tighten the mounting tabs by turning the screw counter clockwise (see

Figure 6).

Turning one quarter of a circle rotates the tab outwards; after that the screw is turned to

tighten the tabs to the rear side of the ceiling surface

When tightening the mounting tabs, the tabs automatically turn outward,

thus clamping the speaker to the wall from its rear side.

Do not over-tighten the screws. It may cause damage to both the

speakers and the surface.

Figure 6: Tighten the Mounting Tabs

9. If required, you can further secure the speaker by connecting the speaker

support ring to an independent secure anchor point.

10. Adjust each speaker to the appropriate tap setting before installing the grille

(see Figure 7).
