Galil 4-CO - Installing the Open-back Ceiling Speakers

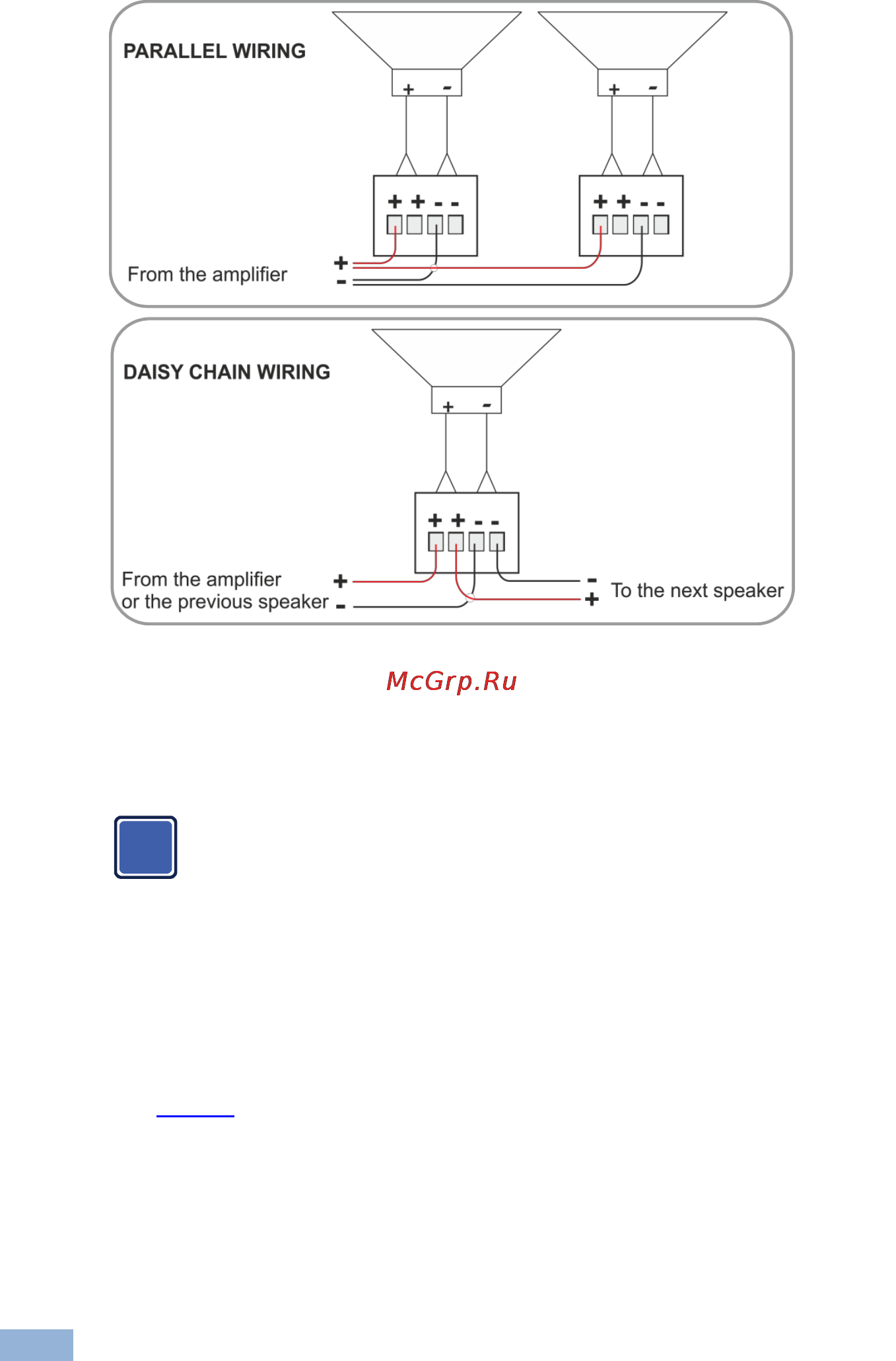

Figure 5: Open-back Ceiling Speaker Schematic Pinout Diagram

5. Insert the speaker into the opening and tighten the screws.

When tightening the screws, the tabs automatically turn outward, thus

clamping the speaker to the wall from its rear side.

Do not over-tighten the screws. It may cause damage to both the

speakers and the surface.

5.4 Array Installation

When installing Galil 4-CO in an array installation layout, you have to define the

distance between speakers as well as the layout pattern (square or hexagonal).

The distance between speakers is set according to the speakers’ coverage angle

(see Figure 6), the uniformity of the coverage desired and the budget.
