--- 18 ---

(h) Install the Shift Arm [19] into the assembly reassembled in step (g).

With the ridge at the Shift Arm [19] facing the Motor [28] side, first install them on the unmarked side of the

assembly reassembled in step (g). Then insert the projections on the Shift Arm [19] into the holes in the

Rear Case [17] and make sure that the projections are fitted into the grooves in the Slide Ring Gear [20]

mounted within the Rear Case [17]. (See Fig. 13.)

[19]

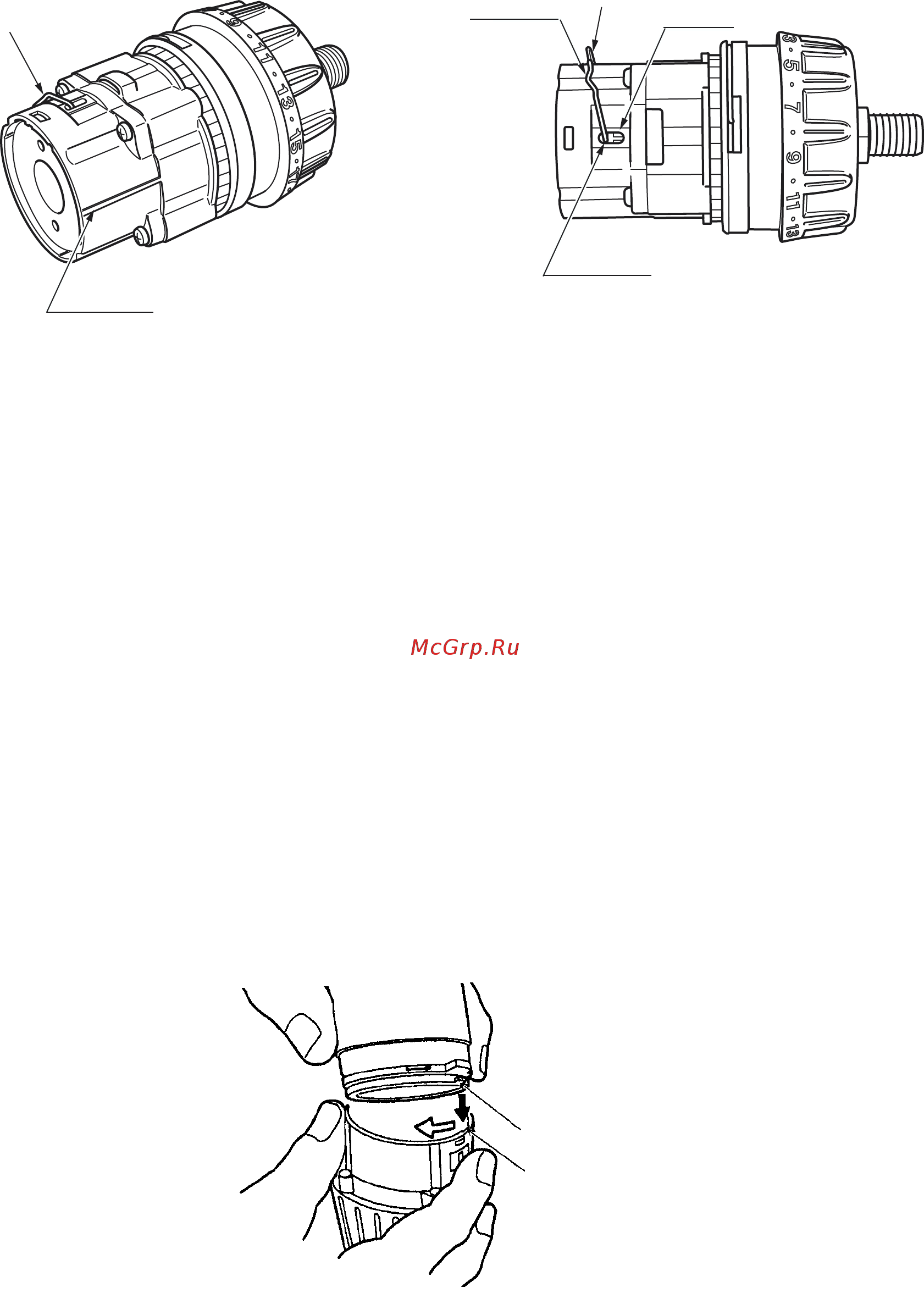

Fig. 13

[19]

Ridge

Hole

Groove

Mark

(i) Install the Drill Chuck 13VLRG-N (W/O Chuck Wrench) [2].

Install the Drill Chuck 13VLRG-N (W/O Chuck Wrench) [2] using a socket wrench 19 mm etc. and secure it

with the Special Screw (Left Hand) M6 x 23 [1].

(j) Install the Shift Knob [38] into the assembly reassembled in step (i).

When installing the Shift Knob [38] into the Shift Arm [19], note that the "LOW" mark on the Shift Knob [38]

faces the Motor [28] with the Shift Arm [19] engaged with the recess in the Shift Knob [38].

(k) Install the assembly reassembled in step (1) and the assembly reassembled in step (j) together.

(See Fig. 14.)

Fit the projection on the Motor Spacer [27] into the recess in the Rear Case [17] while ensuring that the

Shift Knob [38] is aligned with the positive side of the Motor [28] and turn the Motor Spacer [27] clockwise

when viewed from the rear of the Motor [28] until it can turn no further. During installation, make sure that

the pinion press-fitted onto the shaft of the Motor [28] and Planet Gear (A) Set (3 pcs.) [24] mesh properly.

Fig. 14

Projection

Recess
