--- 17 ---

(f) Install the Ring Gear [13] and Washer (B) [26] of Planet Gear (C) Set [15] into the assembly assembled in

step (3) (e). (See Fig. 7.)

(i) Note the direction of the groove when installing the Slide Ring Gear [20] so that the groove faces toward

the Motor [28].

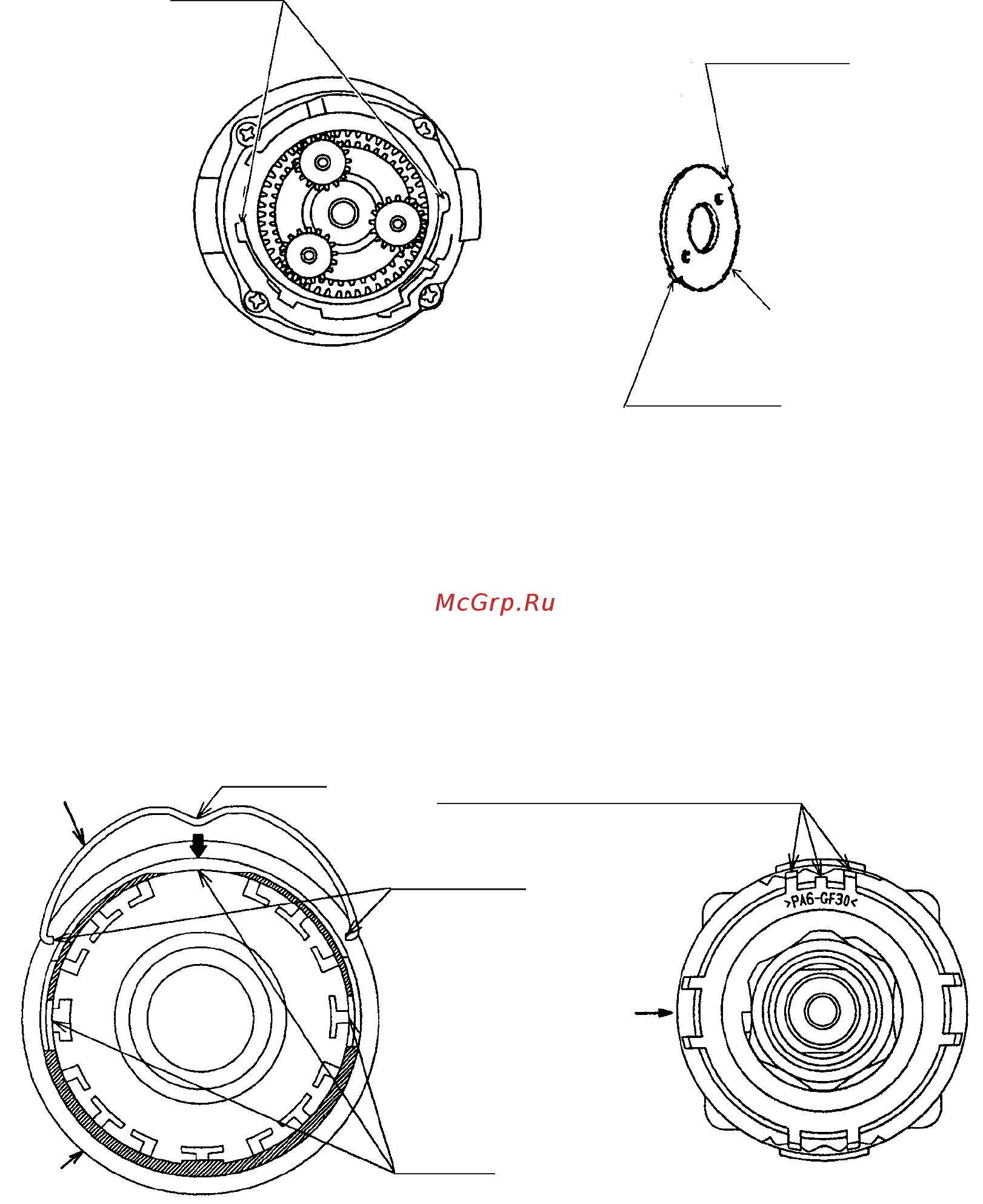

(ii) Install Washer (B) [26] in the Rear Case [17] with the projections of Washer (B) [26] engaged with the

recesses in the Rear Case [17], and turn Washer (B) [26] clockwise until it can turn no further.

(See Fig. 11.)

Fig. 11

(ii) When the Nut [6] is screwed in the Front Case [9] about one and a quarter turns, the three projections

of the Nut [6] and the marking of the Rear Case [17] are positioned as shown in Fig. 12. Mount the Cap

[4] aligning the ridge of the Click Spring [5] with the three projections of the Nut [6].

Fig. 12

Holes
