BBE MaxCom [7/24] Installation
![BBE MaxCom [7/24] Installation](/views2/1000155/page7/bg7.png)
3
INSTALLATION
Your MAXCOM was carefully packed at the factory and the packaging was designed to protect the unit from
rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for any
signs of physical damage which may have occurred in transit. If the unit is damaged please do not return it to us
but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may
not be granted. Shipping claims must be made by the consignee.
• RACK MOUNTING
The MAXCOM ts into one standard 19” rack unit of space. Please allow at least an additional 4” depth for the
connectors on the back panel. Be sure that there is enough air space around the unit for cooling and, to avoid
overheating, please do not place the MAXCOM on high temperature devices such as power ampliers.

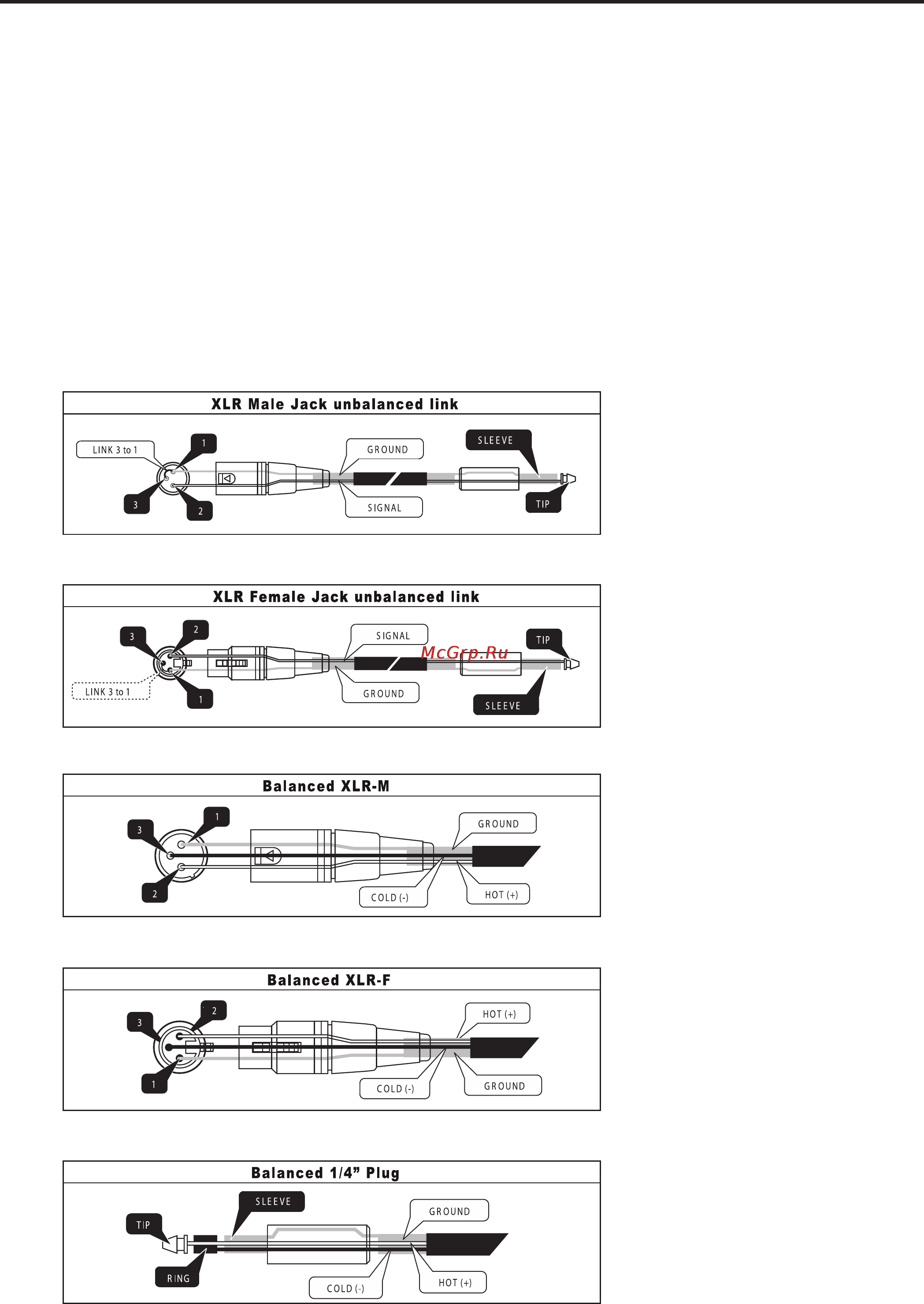

• CONNECTORS
The MAXCOM can be installed using standard 1/4” and XLR jacks. Although the inputs are fully balanced, the
automatic servo-functions allow them to operate with unbalanced source/loads. Audio outputs use 1/4” and XLR
jacks also, but they are unbalanced.
INSTALLATION
