EN_DS4LHA-HTP_1214
www.yanmar.eu
Configuration 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft * 118 kW@3300 rpm [160 mhp@3300 rpm]
** 113 kW@3300 rpm [154 mhp@3300 rpm]
Displacement 3.455 ltr [211 cu in]
Bore x stroke 100 mm x 110 mm [3.94 in x 4.33 in]
Cylinders 4 in line
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electrical starting 12V
Alternator 12V - 80A
Cooling system Fresh water cooling by centrifugal fresh water pump
and rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation [crankshaft] Counterclockwise viewed from flywheel side
Dry weight without gear 360 kg [794 lbs]
Environmental EU: RCD BSO II EMC
SOLAS MED 96/98/EC
Engine mounting Rubber type flexible mounting
NOTE:
Fuel condition: Density at 15°C = 0.842 g/cm
3
; 1 mhp = 1 ps = 0.7355 kW = 0.9863 bhp
* Fuel temperature 25°C at the inlet of the fuel injection pump [ISO 3046-1]
** Fuel temperature 40°C at the inlet of the fuel injection pump [ISO 8665: 2006]
Technical data is according to ISO 8665: 2006/3046-1
DIMENSIONS
MARINE DIESEL ENGINES
4LHA-HTP with ZF45A marine gear
www.yanmarmarine.com
4LHA-HTP
Series
Configuration 4-stroke, vertical, water cooled diesel engine
Maximum output at crankshaft * 118 kW (160 mhp) / 3300 rpm
** 113 kW (154 mhp) / 3300 rpm
Continuous rating output at crankshaft 91 kW (124 mhp) / 3100 rpm
Displacement 3.455 L (211 cu in)
Bore x stroke 100 mm x 110 mm (3.94 in x 4.33 in)
Cylinders 4 in line
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electrical starting 12 V
Alternator 12 V - 80 A
Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side
Dry weight without gear 360 kg (794 lbs)
Environmental EU RCD, BSO II, EMC
Engine mounting Rubber type flexible mounting
NOTE: Fuel condition: Density at 15°C = 0.842g/cm
3
; 1 mhp = 1PS = 0.7355 kW = 0.9863 bhp
* Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046-1)
**Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665 : 2006)

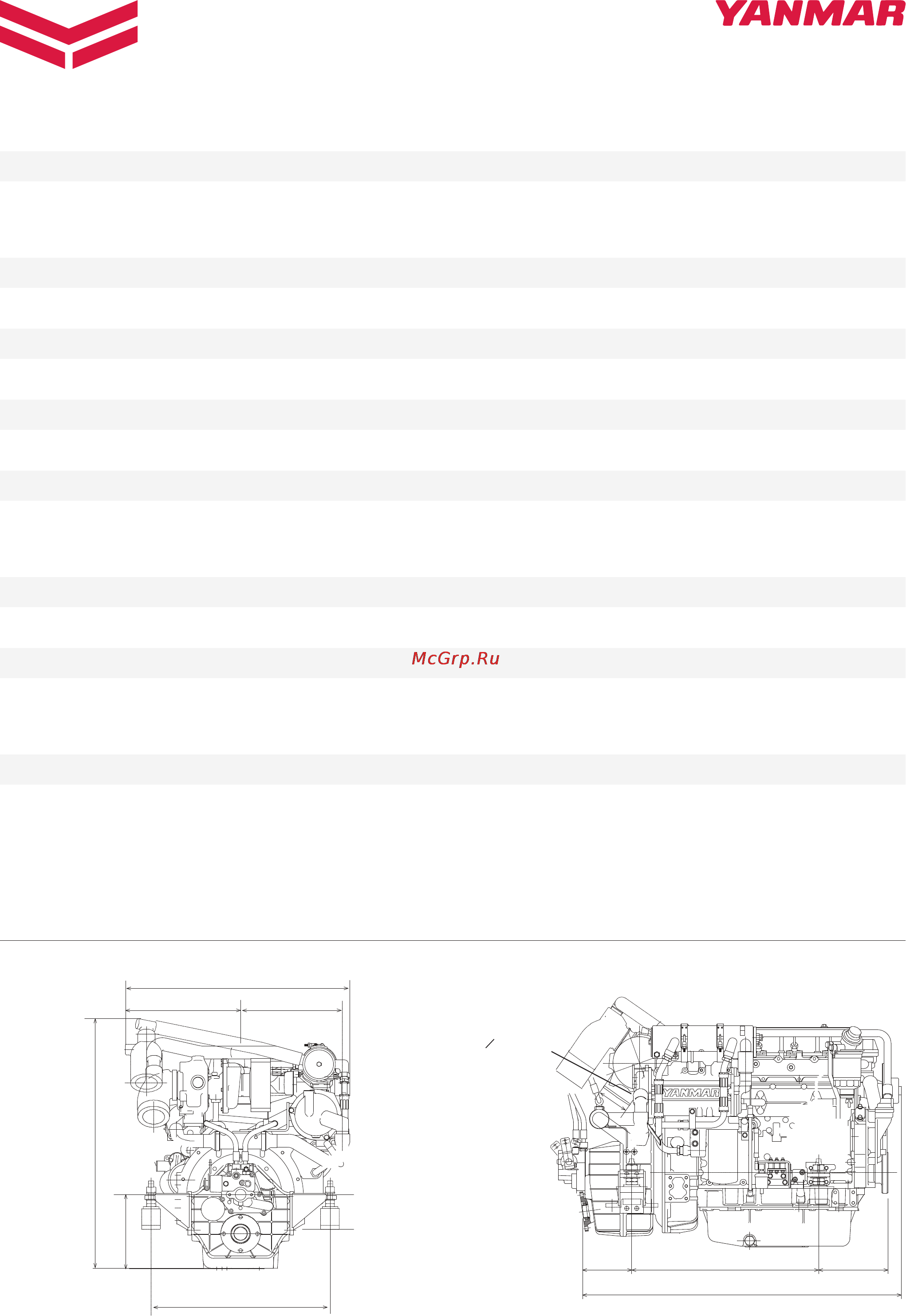

Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com)
Rear view
222.5 mm
(8.8 in)
209 mm (8.2 in)
157.7 mm
(6.2 in)
Mixing elbow
o 102 mm (4 in)
1021.9 mm (40.2 in)
719.1 mm (28.3 in)
368.6 mm (14.5 in) 350.5 mm (13.8 in)
574 mm (22.6 in)
811 mm (31.9 in)
238 mm (9.4 in)
max. 120 mm (4.7 in)
min. 111 mm (4.4 in)
Right side view
4LHA-HTP with ZF45A marine gear
4LHA-HTP Series
MARINE DIESEL ENGINES
