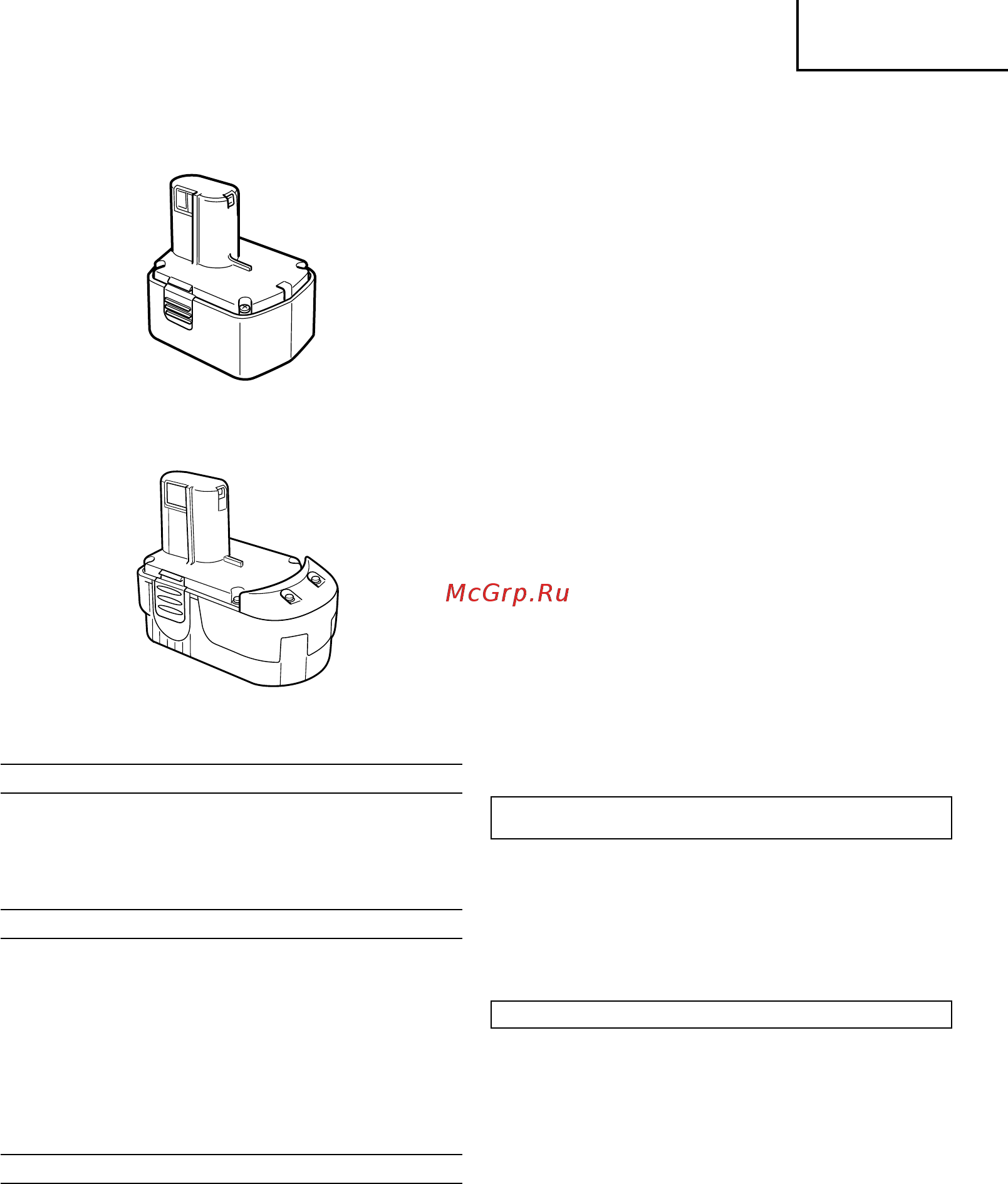

3. Battery (EB1414S, EB1414, EB14B, EB1426H,

EB1430H)

(For DS14DVB2)

4. Battery (EB1814SL, EB1820, EB1820L, EB1826HL,

EB1830HL)

(For DS18DVB2)

Optional accessories are subject to change without notice.

APPLICATIONS

䡬 Driving and removing of machine screws, wood

screws, tapping screws, etc.

䡬 Drilling of various metals.

䡬 Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch

(1 pc. or 2 pcs.) to remove the battery (see Figs.

1 and 2).

CAUTION:

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see

Fig. 2).

CHARGING

〈UC9SD/UC12SD/UC14SD/UC18SD

〉

Before using the driver drill, charge the battery as follows.

1. Insert the battery into the charger.

Insert the battery firmly while observing its direction,

until it contacts the bottom of the charger (See Fig.

3).

CAUTION:

The UC9SD, UC12SD, UC14SD and UC18SD models

are the exclusively designed charger. These cannot

charge batteries except the specified batteries. It

is possible to insert the batteries other than the

specified into the charger and some of them may

light up the pilot lamps. However, you are

requested to exercise utmost caution not to charge

batteries other than specified ones because these

can not only be charged but also such actions can

result in the malfuntion of chargers.

2. Connect the charger power cord to the receptacle.

Connecting the power cord will turn on the charger

(the pilot lamp lights up).

CAUTION:

If the pilot lamp does not light up, pull out the

power cord from the receptacle and check the

battery mounting condition.

About 1 hour is required to fully charge the battery

at a temperature of about 20°C. The pilot lamp goes

off to indicate that the battery is fully charged.

The battery charging time becomes longer when a

temperature is low or the voltage of the power

source is too low.

When the pilot lamp does not go off even if more

than two hours have elapsed after starting of the

charging, stop the charging and contact your

HITACHI AUTHORIZED SERVICE CENTER.

CAUTION:

If the battery is heated due to direct sunlight,

etc., just after operation, the charger pilot lamp

may not light up. At that time, cool the battery

first, then start charging.

3. Disconnect the charger power cord from the

receptacle.

4. Hold the charger firmly and pull out the battery.

NOTE:

After charging, pull out batteries from the charger

first, and then keep the batteries properly.

Regarding electric discharge in case of new

batteries, etc.

As the internal chemical substance of new batteries

and batteries that have not been used for an

extended period is not activated, the electric

discharge might be low when using them the first

and second time. This is a temporary phenomenon,

and normal time required for recharging will be

restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become

completely exhausted.

When you feel that the power of the tool becomes

weaker, stop using the tool and recharge its battery.

If you continue to use the tool and exhaust the

electric current, the battery may be damaged and

its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after

use. If such a battery is recharged immediately after

use, its internal chemical substance will deteriorate,

and the battery life will be shortened. Leave the

battery and recharge it after it has cooled for a while.

〈

UC14YFA/UC24YFA

〉

Before using the driver drill, charge the battery as follows.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s

pilot lamp will blink in red. (At 1-second intervals).
