Smeg SE70SGH-5 [10/16] Instructions for the installer

Instructions for the installer

5.2 Regulation for LPG

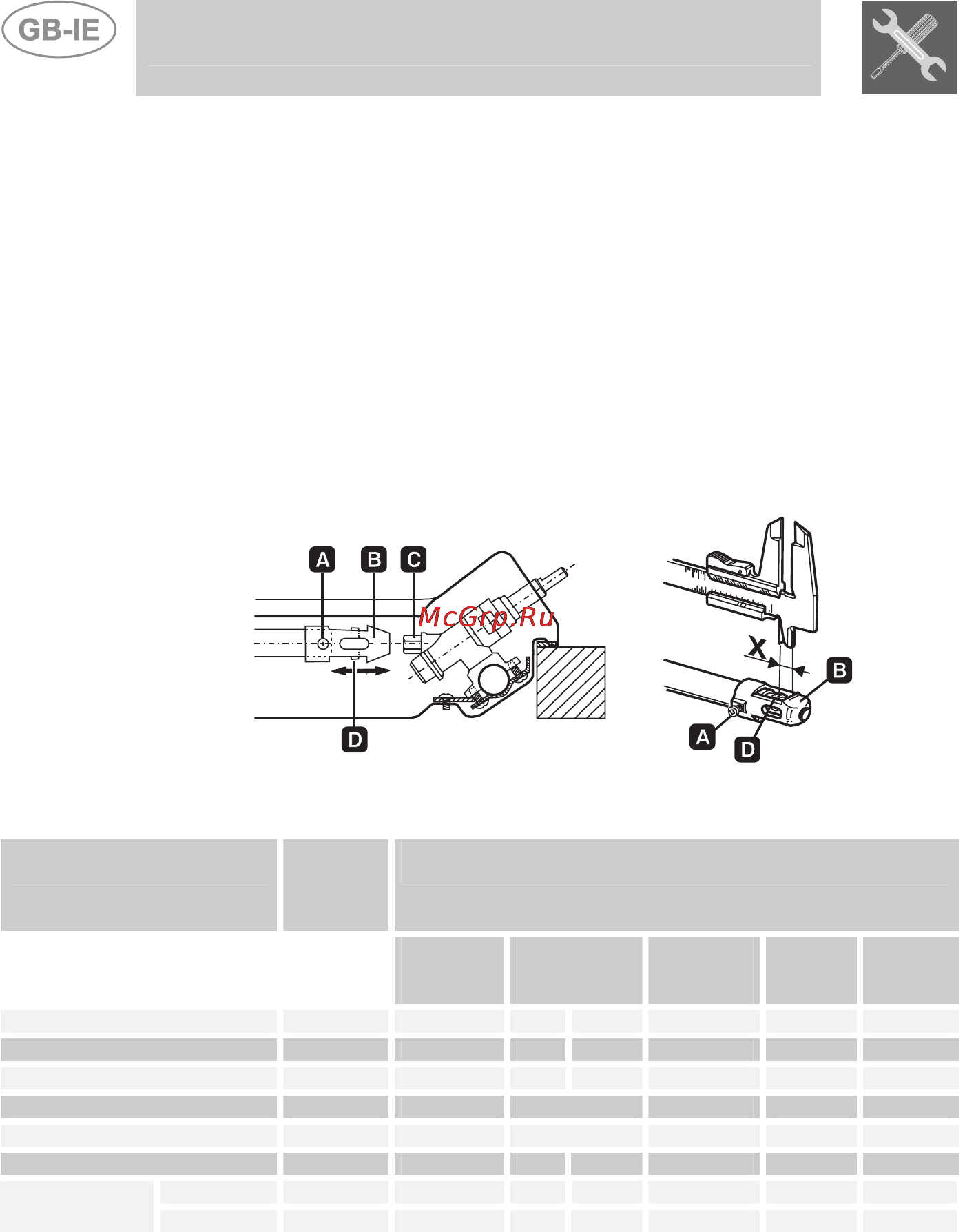

Loosen screw A and push support B all the way. Use a double head

wrench to remove nozzle C and assemble the suitable one, following the

instructions indicated in the reference charts, with respect to the type of

gas to use. The screwing torque of the nozzle should never exceed

3 Nm. Reposition support B so that nozzle C is covered perfectly.

Move the Venturi tube D to regulate the air flow until distance "X" is

reached indicated in the chart in paragraph "

5.4 Regulation of primary air”

and then secure the tube by means of screw A. After the regulations

have been carried out, restore the seals with sealing wax or equivalent

material.

Burner

Rated

heating

capacity

(kW)

LPG – G30/G31 28/37 mbar

Nozzle

diameter

1/100 mm

By-pass

1/100

Reduced

flowrate

(W)

Flowrate

g/h G30

Flowrate

g/h G31

Auxiliary (1) 1.05 48 30 33 (*) 380 76 75

Semi-rapid (2) 1.65 62 30 33 (*) 380 120 118

Average rapid (3) 2.55 76 37 40 (*) 650 185 182

Large rapid (4) 3.1 85 43 750 225 222

Triple crown (5) 3.9 95 65 1700 283 279

Triple crown (6) 3.3 87 55 65 (*) 1200 240 236

internal (7) 1.15 48 30 33 (*) 380 84 82 Double crown

external (7) 3.8 93 55 65 (*) 1200 276 271

(*) By-pass value for valveless appliances.
