Содержание

• Final operations_____________________________________ 32 p.1
• Electrical connection ______________________________ 26 p.1
• Contents p.1
• Cleaning and maintenance ___________________________ 36 p.1
• Adaptation to different types of gas _______________ 29 p.1
• Using the hob ________________________________________ 34 p.1
• Positioning of hob ___________________________________ 24 p.1
• Instructions for safe and proper use_______________ 22 p.1
• Gas connection______________________________________ 27 p.1
• Introduction p.2
• Instructions for safe and proper use p.2
• The manufacturer declines all responsibility for damage to persons or things caused by non observance of the above prescriptions or by interference with any part of the appliance or by the use of non original spares p.3
• Introduction p.3
• Positioning of hob p.4
• Instructions for the installer p.4
• Attachment to support structure p.4
• Instructions for the installer p.5
• Instructions for the installer p.6
• Electrical connection p.6
• Instructions for the installer p.7
• Gas connection p.7
• Ventilation of rooms p.8
• Instructions for the installer p.8
• Discharge of combustion products p.8
• Connection to lpg p.8
• Removing the hob p.9
• Instructions for the installer p.9
• Adaptation to different types of gas p.9
• Regulation for lpg p.10
• Loosen screw a and push support b all the way use a double head wrench to remove nozzle c and assemble the suitable one following the instructions indicated in the reference charts with respect to the type of gas to use the screwing torque of the nozzle should never exceed 3 nm reposition support b so that nozzle c is covered perfectly move the venturi tube d to regulate the air flow until distance x is reached indicated in the chart in paragraph 5 regulation of primary air and then secure the tube by means of screw a after the regulations have been carried out restore the seals with sealing wax or equivalent material p.10
• Instructions for the installer p.10

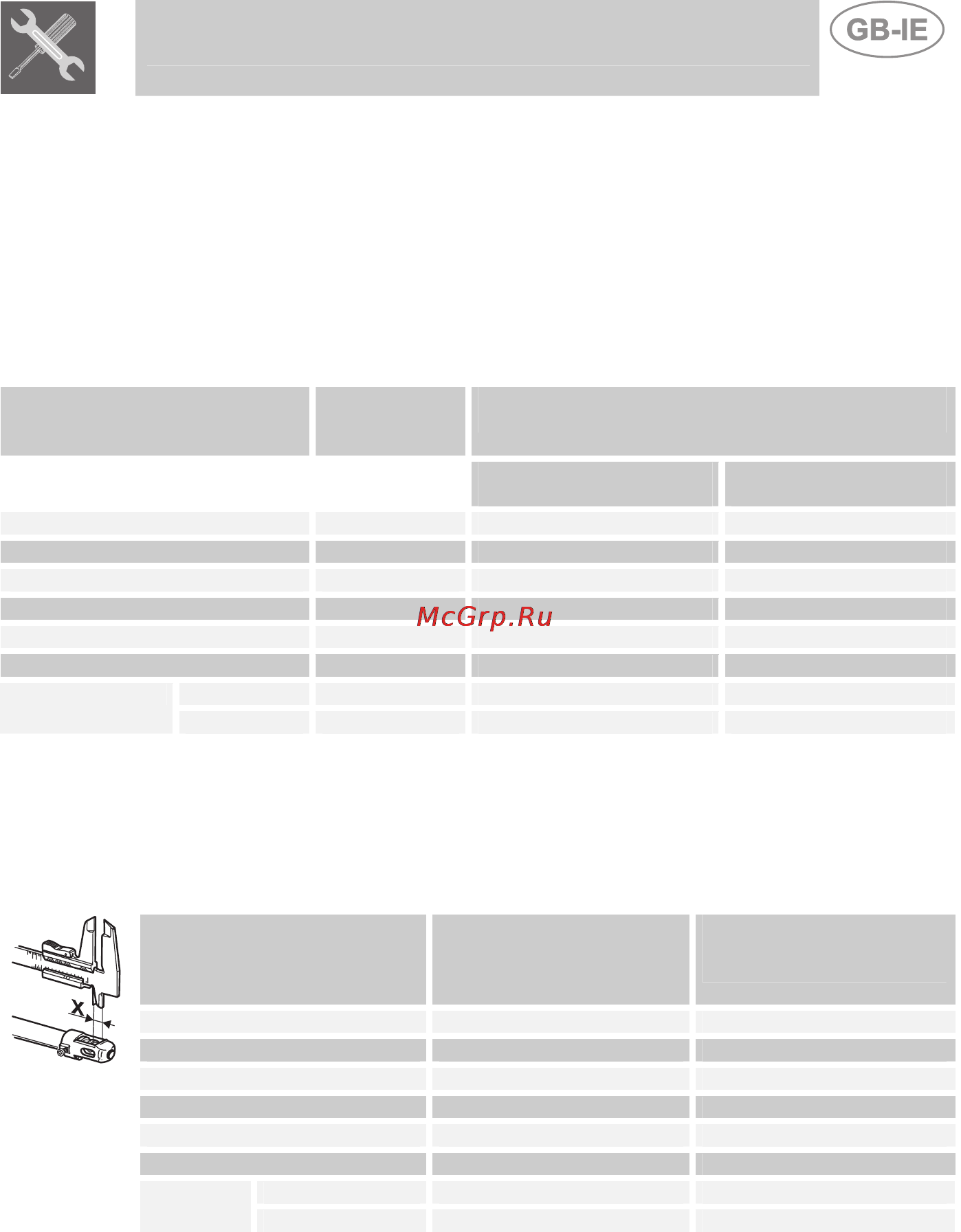

• The hob has been inspected for g20 2h natural gas at a pressure of 20 mbar to allow the unit to work with this type of gas perform the same operations described in paragraph 5 regulation for lpg but choose the nozzles and regulate the primary air for natural gas as shown in the following table and in paragraph 5 regulation of primary air after the regulations have been carried out restore the seals with sealing wax or equivalent material p.11
• Regulation of primary air p.11
• Regulation for natural gas p.11
• Referred to distance x in mm p.11
• Instructions for the installer p.11
• Final operations p.12
• Regulation of minimum for natural gas p.12
• Regulation of minimum for lpg p.12
• Instructions for the installer p.12
• Lubrication of gas taps p.13
• Instructions for the installer p.13
• Arrangement of burners on hob p.13
• Using the hob p.14
• Practical advice for using the burners p.14
• Insructions for the user p.14
• Ignition of the burners with safety device p.14
• Operate the burners underneath the griddle plate for 10 minutes at maximum power then turn them down to the minimum setting never use the griddle plate for more than 45 minutes p.15
• Insructions for the user p.15
• If one of the burners close to the wooden rear wall is of triple flame type leave a gap of at least 160 mm between this wall and the edge of the griddle plate p.15
• Do not allow the burner flames to extend beyond the edge of the griddle plate p.15
• Diameter of containers p.15
• A few precautions are necessary if you wish to use a griddle plate leave a gap of at least 160 mm between the edge of the griddle plate and the side wall p.15
• Using a griddle plate p.15
• Regular daily cleaning of the hob p.16
• Insructions for the user p.16
• Ignition plugs and safety devices p.16
• Food stains or residues p.16
• Cleaning of cooking hob components p.16
• Cleaning and maintenance p.16
• Cleaning p.16
