ZVE 160

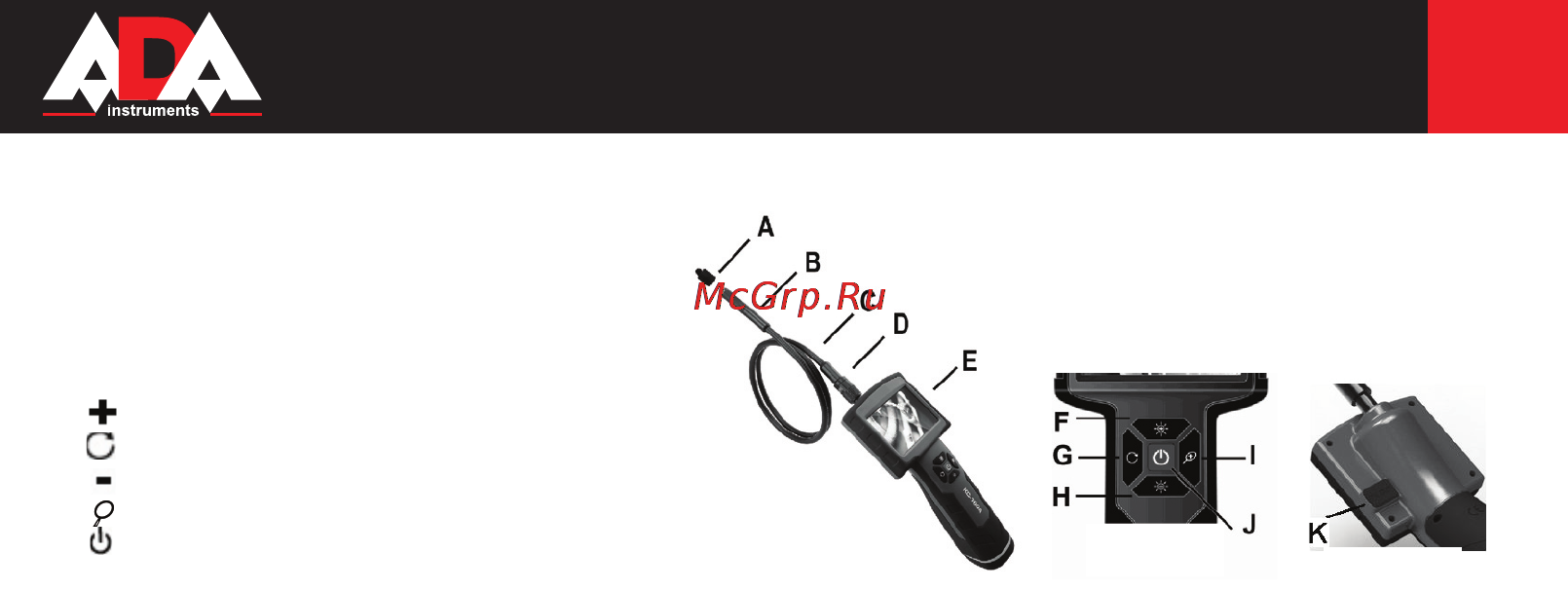

FUNCTIONS

A. Lens protector

B. Lens

C. Swan neck probe

D. Probe connector

E. LCD screen

F. key——Increase LED brightness

G. key——Image rotation

H. key——Decrease LED brightness

I. key——Image zooming

J. key——Power on/off

K. Video-out port

OPERATION INSTRUCTIONS

Battery Installation

1. Unscrew the screw at the end of the grip and remove the battery lid.

2. Extract the battery holder from the grip, and install 4 AA alkaline batteries or rechargeable batteries

following the correct direction signs indicated on the holder.

3. Put back the battery holder following the indicated direction.

4. Put back the battery lid and fasten the screw.

Рic.3 Рic.4 Рic.5
