Smart-UPS C 1000/1500/2000/3000 VA 120/230 Vac Tower8

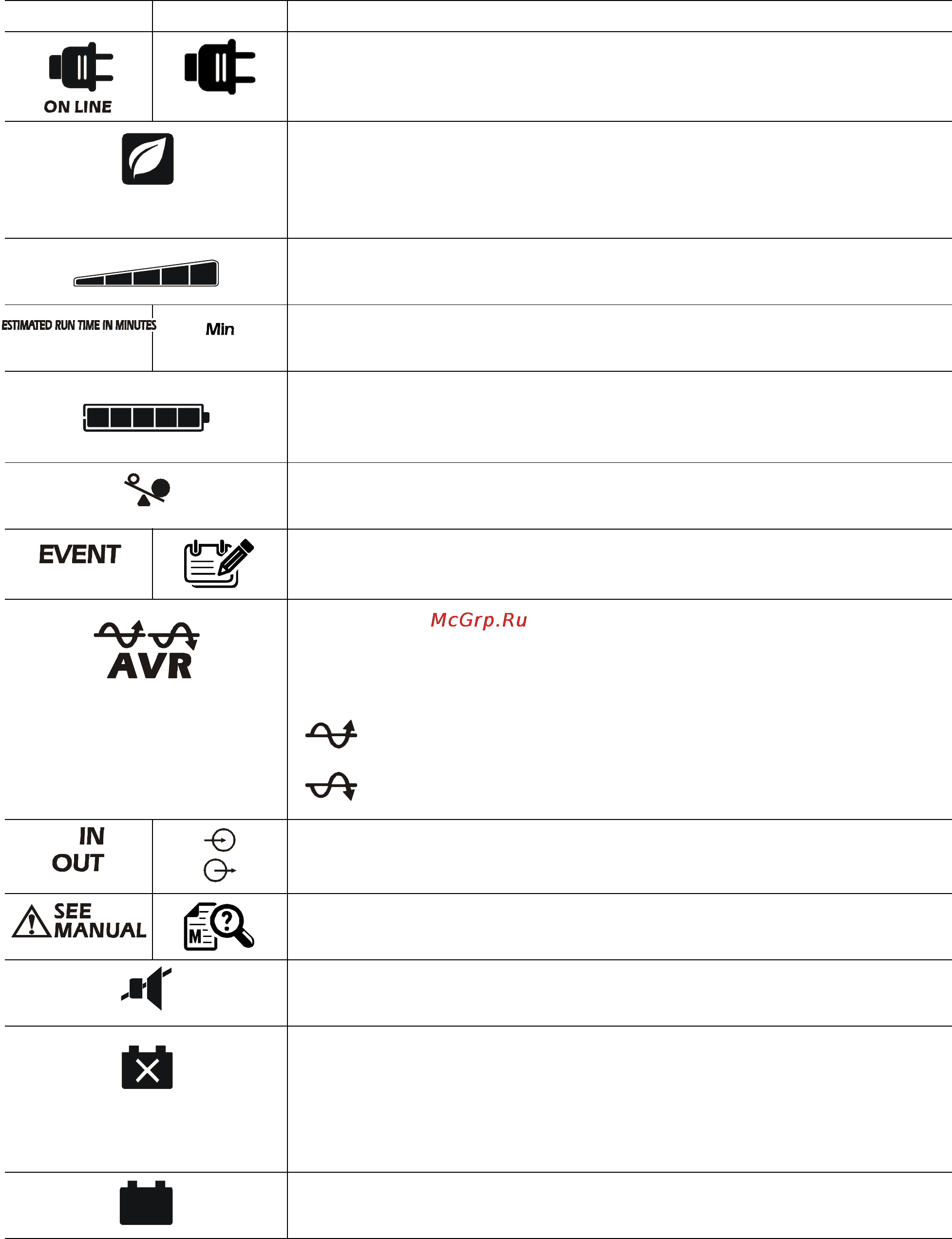

Display interface features

120 Vac 230 Vac Description

On Line: The UPS is supplying conditioned AC power to connected

equipment.

Green mode: The UPS is operating at the most efficient level by bypassing

unused AVR components while acceptable AC voltage is present. The UPS

will enter and exit Green mode automatically and will not compromise

power protection.

Load Capacity: The load capacity percentage is indicated by the number of

load bar sections illuminated. Each bar represents 20% of the load capacity.

Estimated Run Time / Min: This indicates the battery runtime minutes that

remain if the UPS switches to battery power.

Battery Charge: The battery charge level is indicated by the number of load

bar sections illuminated. When all five blocks are illuminated, the battery is

fully charged. Each bar represents 20% of the battery charge capacity.

Overload: The equipment connected to the UPS is drawing more power than

the voltage rating allows.

Event: The event counter indicates the number of events that occurred to

cause the UPS to switch to battery operation.

Automatic Voltage Regulation (AVR): The UPS has an AVR boost feature

that automatically regulates low levels of input voltage without using battery

power. When the AVR icon is illuminated, the UPS is compensating for low

input voltage.

When illuminated, the UPS is compensating for low input voltage.

When illuminated, the UPS is compensating for high input

voltage.

In: Input voltage.

Out: Output voltage.

System Faults: An internal system fault has occurred. The fault number will

illuminate on the display. Refer to “Display interface features” on page 8.

Mute: An illuminated line through the icon indicates that the audible alarm is

disabled.

Battery Fault: The icon will flash to indicate that the battery is

disconnected.

When the icon remains continuously illuminated the UPS has failed a Self-

Test or the battery is near the end of its service life and should be replaced.

Refer to “LCD status indicators” on page 7.

On Battery: The UPS is supplying battery backup power to the connected

equipment.
