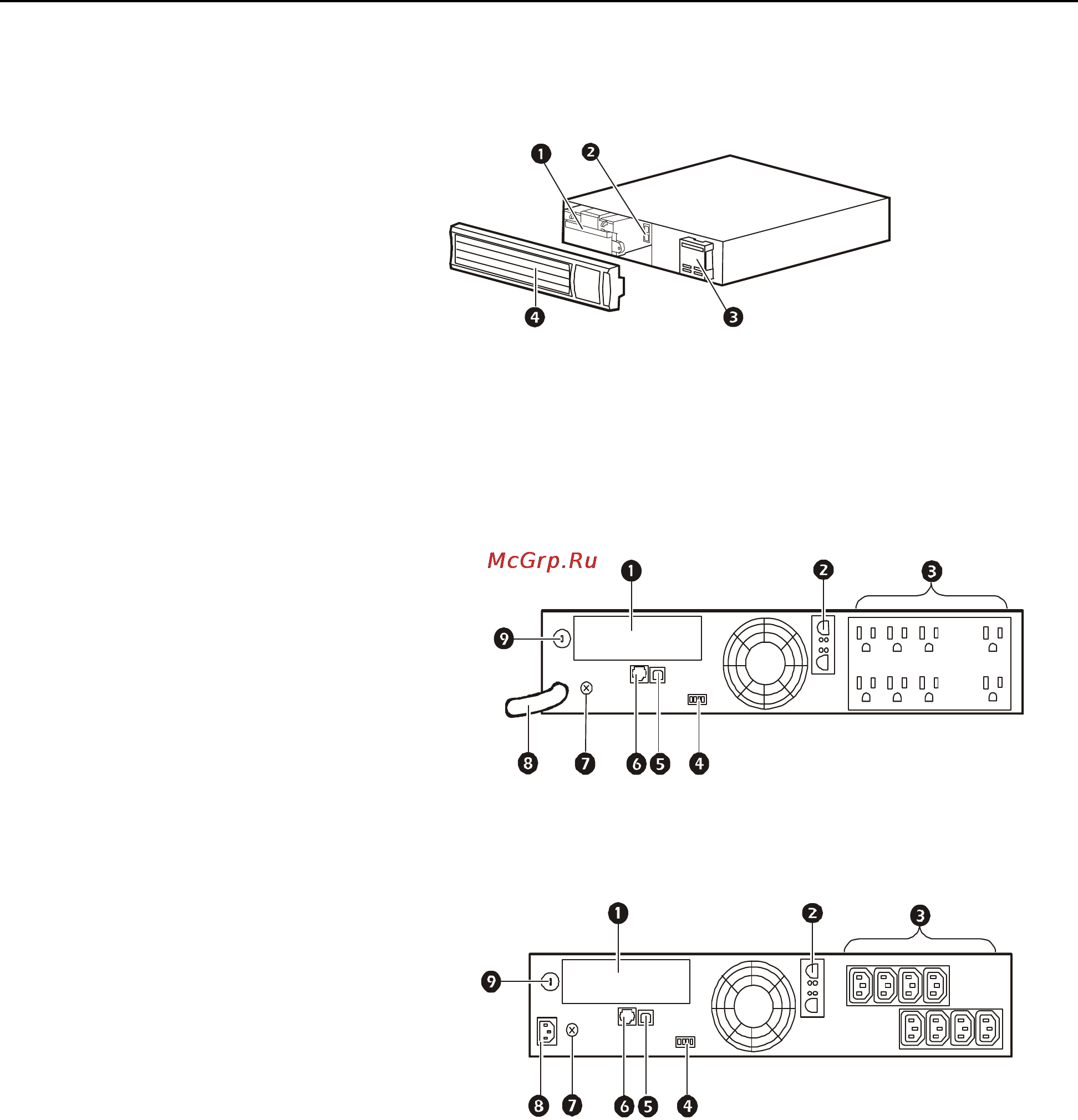

Smart-UPS X 750/1000/1500 VA 120/230 Vac Rack-Mount 2U2
Product Overview
Front Panel Features
Rear Panel Features
1 Battery
2 Battery connector
3 Display interface
4 Bezel
1
SmartSlot
120 Vac
2
External battery pack connector
3
Outlets
4
EPO connector
5
USB port
6
Serial port
7
Chassis ground screw
8
UPS input
9
Circuit breaker
230 Vac
su0443a
su0340a
su0341a
