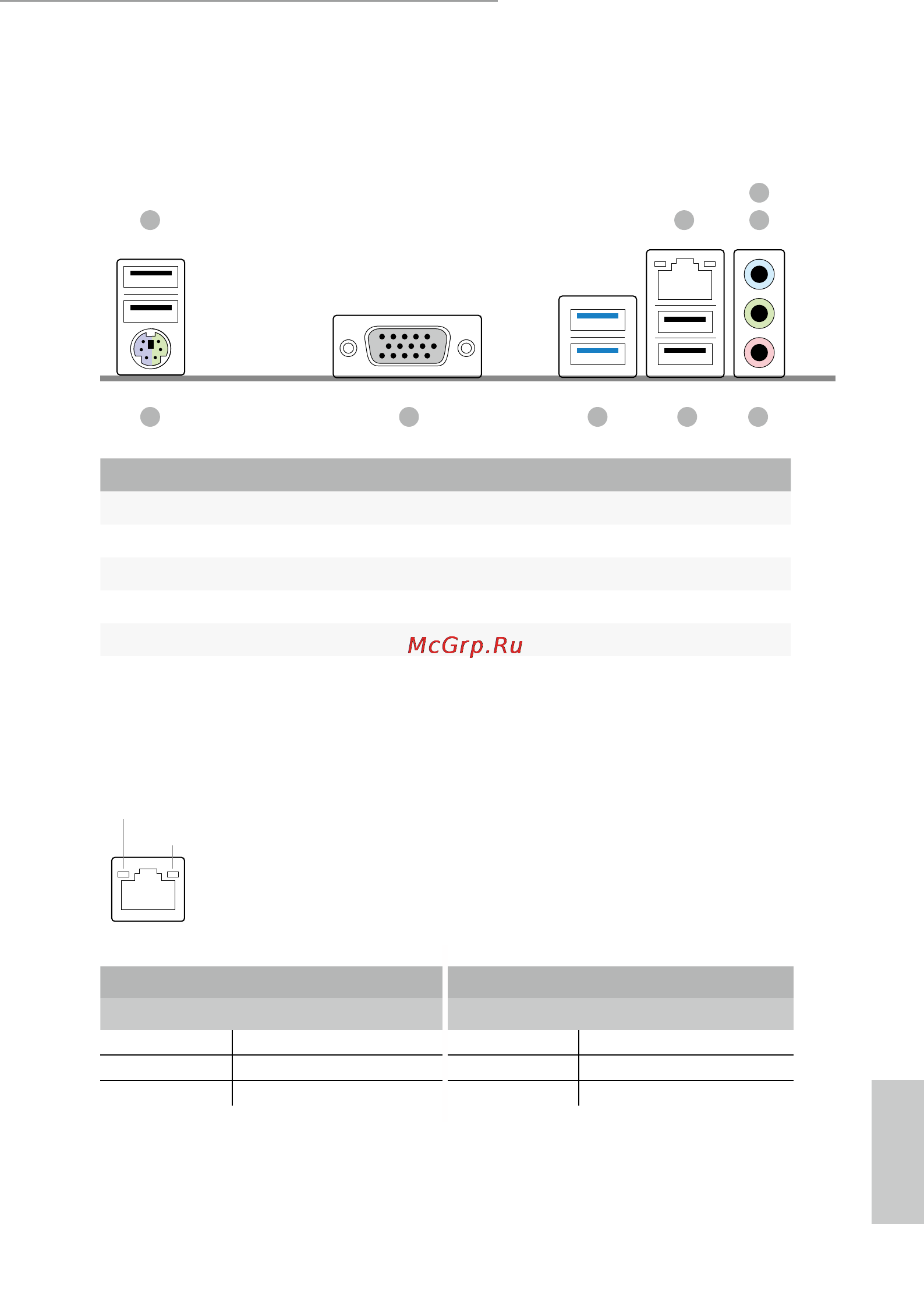

H81M-HG4/H81M-DG4/H81M-VG4
15
English
No. Description No. Description
1 USB 2.0 Ports (USB01) 6 USB 2.0 Ports (USB23)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_01)
3 Line In (Light Blue) 8 D-Sub Port
4 Front Speaker (Lime) 9 PS/2 Mouse/Keyboard Port
5 Microphone (Pink)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
H81M-VG4:
8 5679
1 2 4
3
