H81M-HG4/H81M-DG4/H81M-VG4
53
English

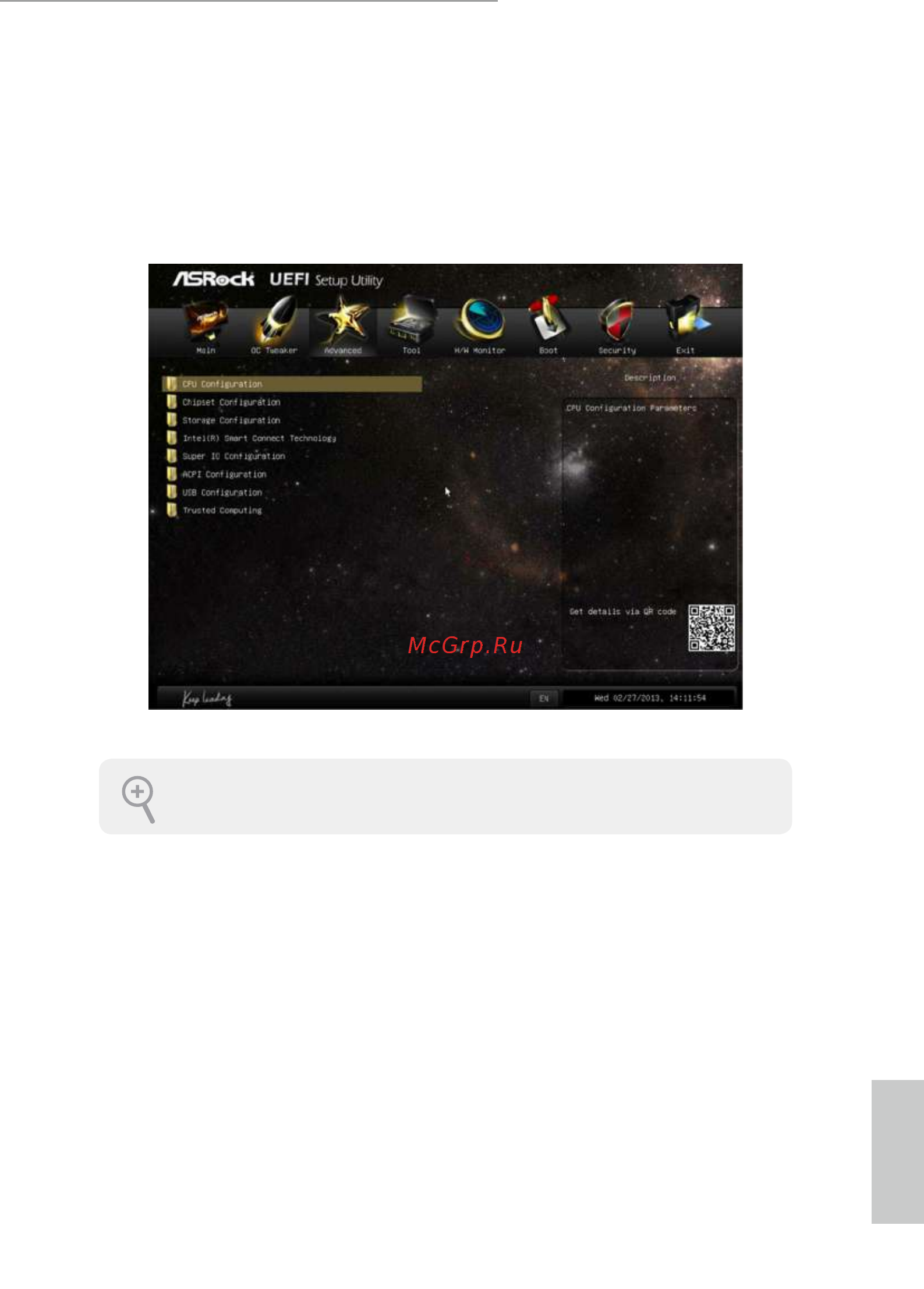

4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU Con-
guration, Chipset Conguration, Storage Conguration, Intel® Smart Connect
Technology, Super IO Conguration, ACPI Conguration, USB Conguration and
Trusted Computing.
Setting wrong values in this section may cause the system to malfunction.
