25
English
H81M-DGS R2.0

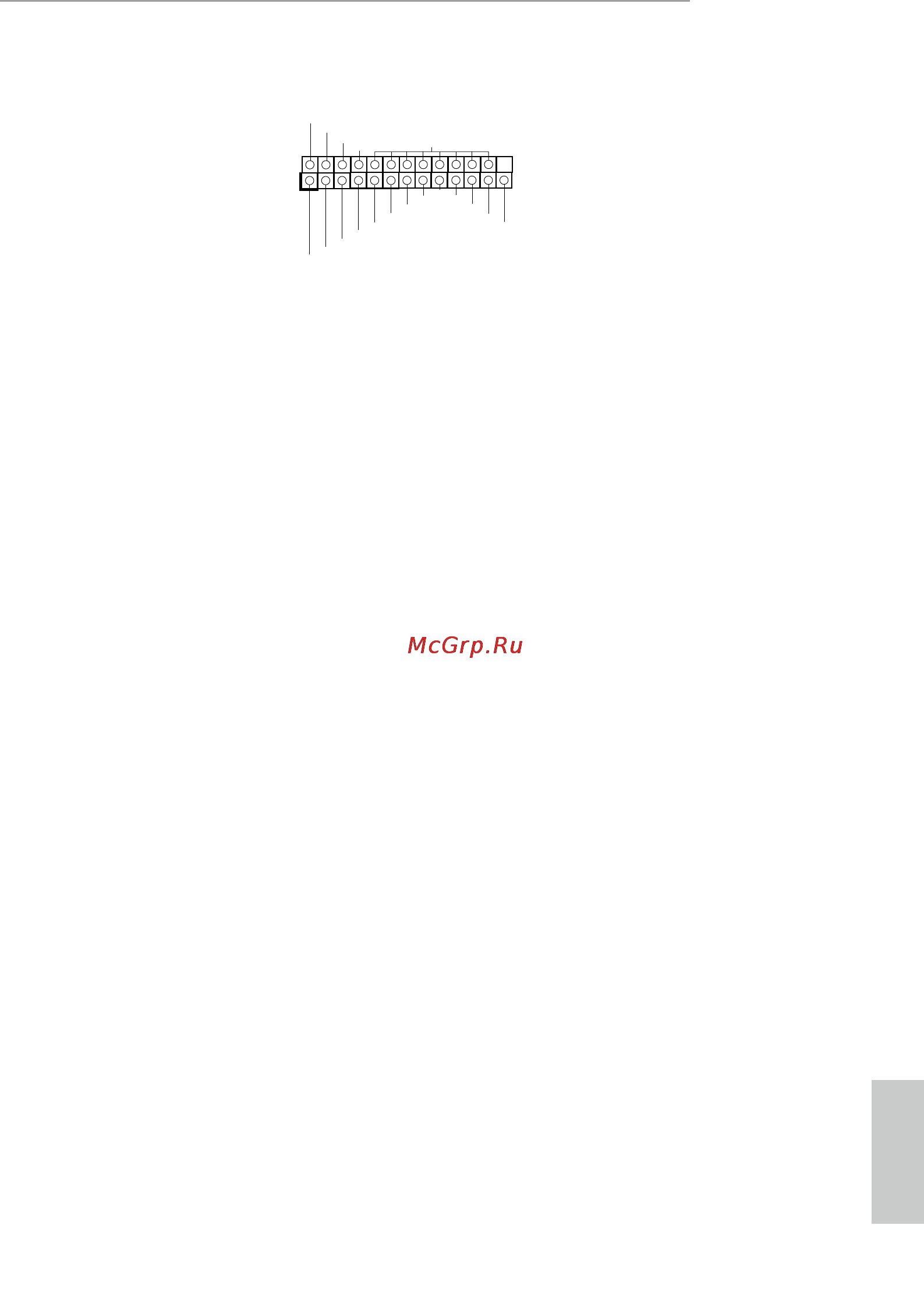

Print Port Header
(25-pin LPT1)
(see p.9, 10, 11, No. 16)
is is an interface
for print port cable
that allows convenient
connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
