ASRock h81m-dgs r2.0 [31/73] A tuning
![ASRock h81m-dgs r2.0 [31/73] A tuning](/views2/1159416/page31/bg1f.png)
27
English
H81M-DGS R2.0
3.2 A-Tuning
A-Tuning is ASRock’s multi purpose soware suite with a new interface, more new
features and improved utilities, including XFast RAM, Dehumidier, Good Night
LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.
3.2.1 Installing A-Tuning
When you install the all-in-one driver to your system from ASRock’s support CD,
A-Tu ning will be auto-installed as well. Aer the installation, you will nd the icon
“A-Tu ning“ on your desktop. Double-click the “A-Tu ning“ icon, A-Tuni ng
main menu will pop up.
3.2.2 Using A-Tuning
ere are ve sections in A-Tuni ng main menu: Operation Mode, Tools, OC
Tweaker, System Info and Tech Service.

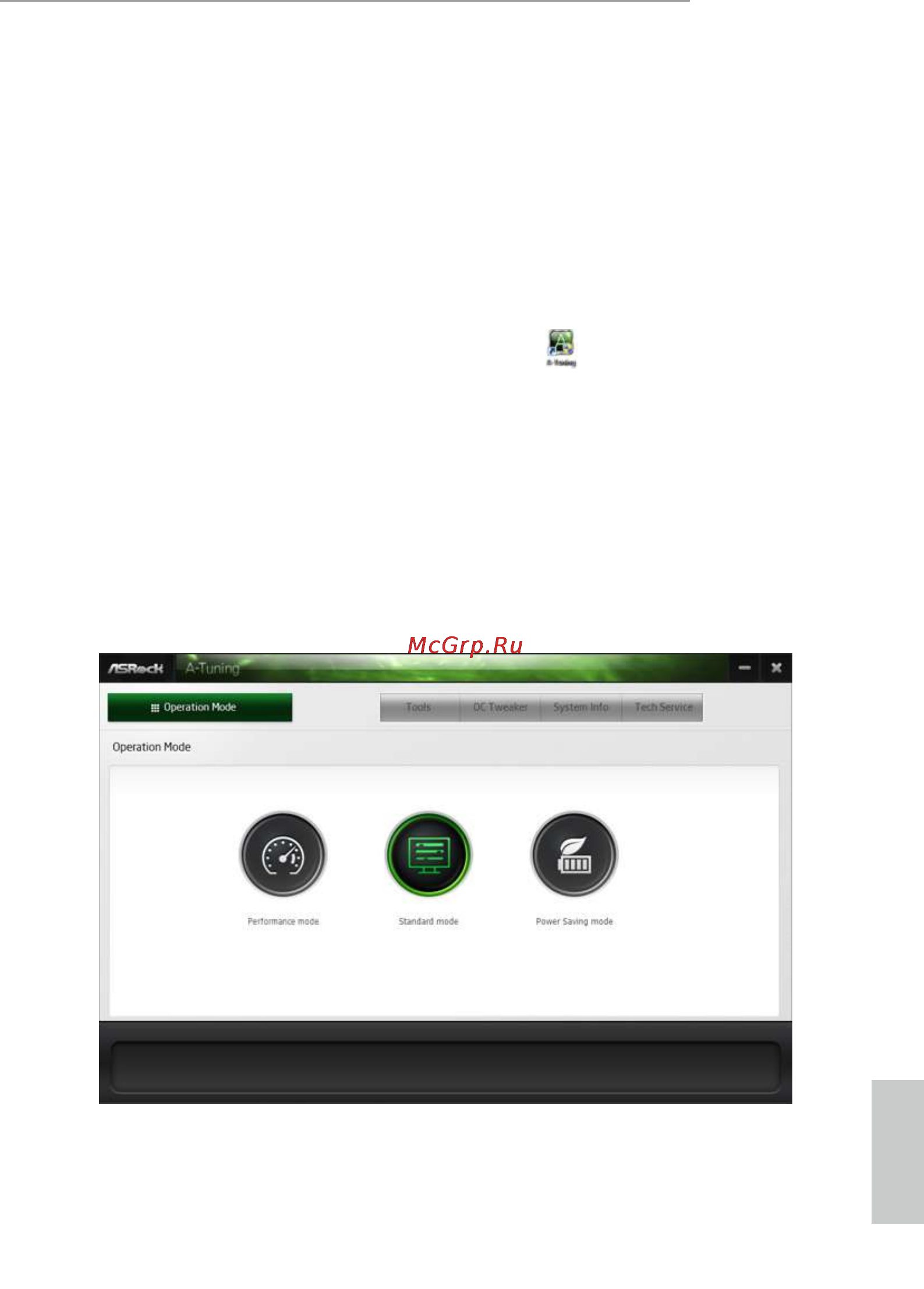

Operation Mode
Choose an operation mode for your computer.
