ASRock h81m-dgs r2.0 [63/73] Trusted computing
![ASRock h81m-dgs r2.0 [63/73] Trusted computing](/views2/1159416/page63/bg3f.png)
59
English
H81M-DGS R2.0

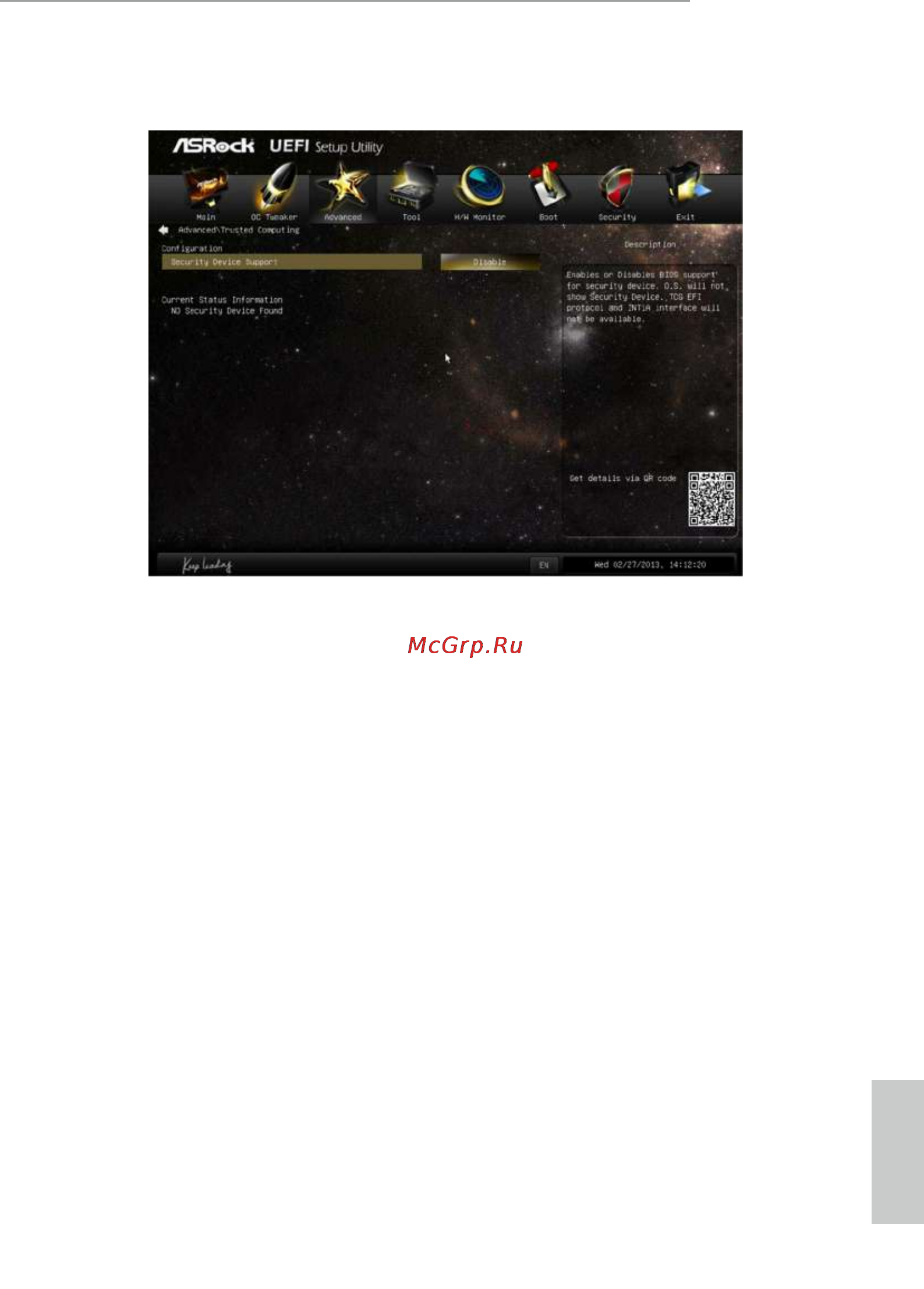

4.4.8 Trusted Computing
Security Device Support
Enable to activate Trusted Platform Module (TPM) security for your hard disk
drives.
