29
English
H81M-DGS R2.0

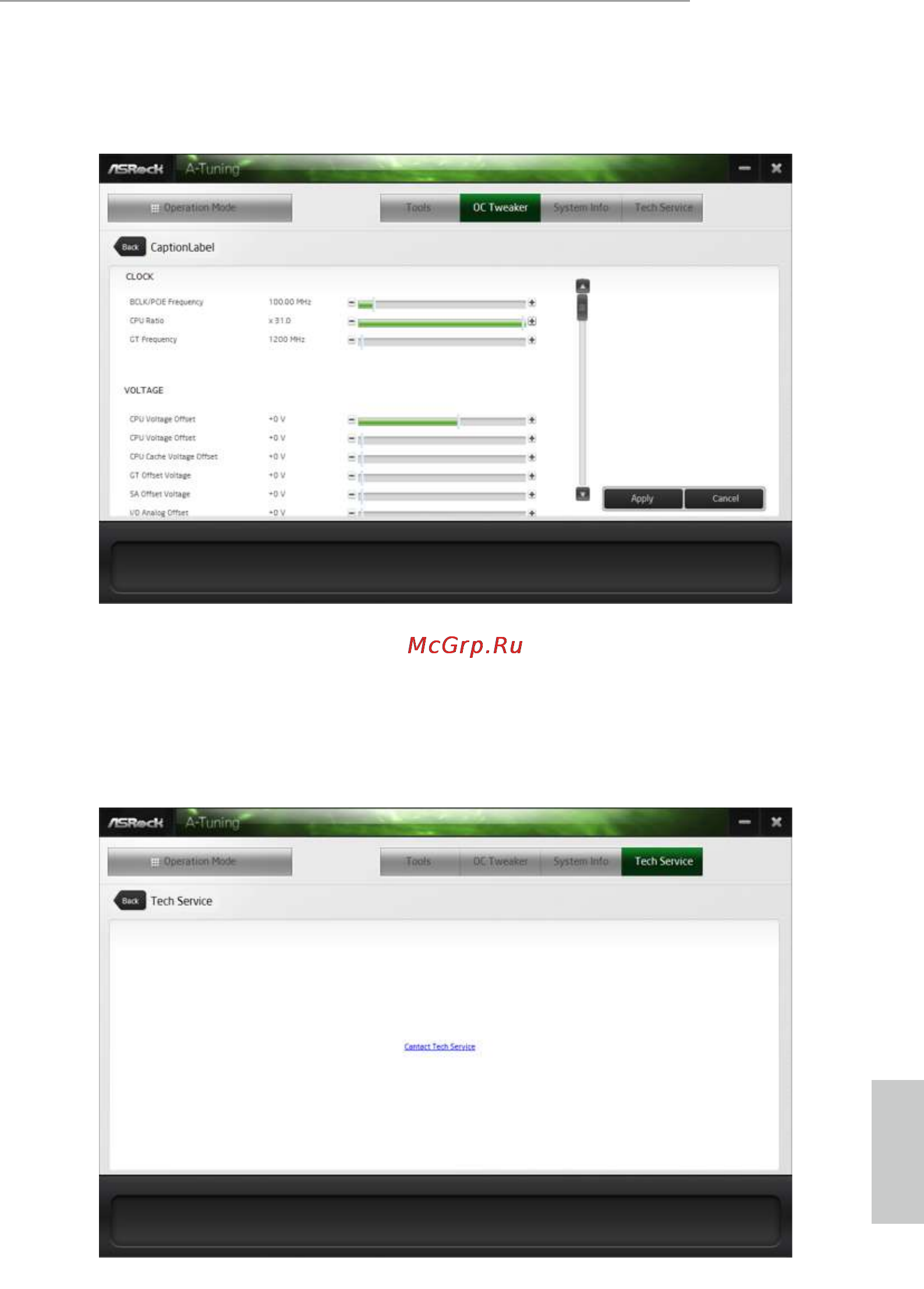

OC Tweaker
Congurations for overclocking the system.
System Info
View information about the system.
Tech Service
Contact Tech Service.
