H81 Pro BTC
55
English

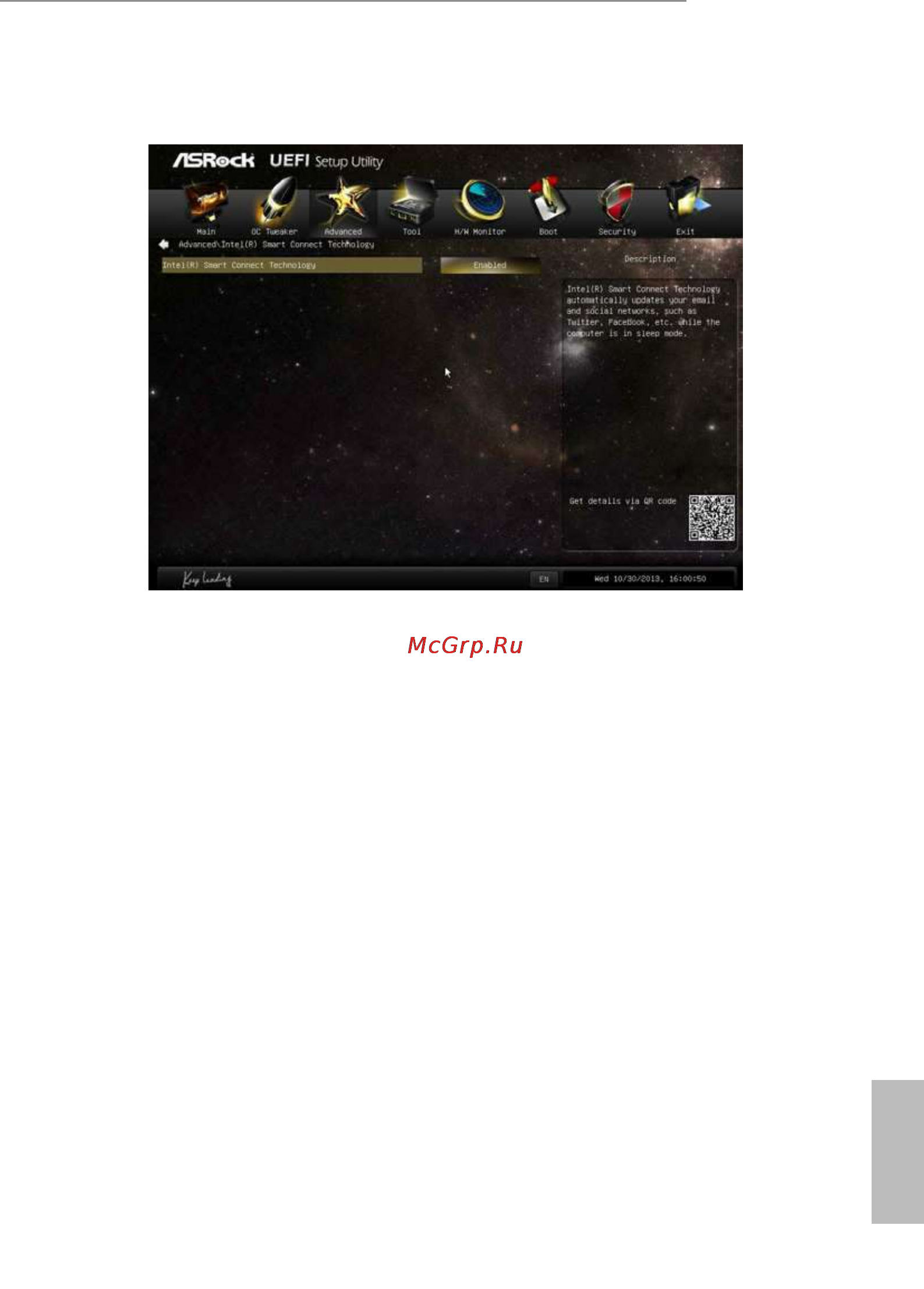

4.4.4 Intel® Smart Connect Technology
Intel
®
Smart Connect Technology
Intel
®
Smart Connect Technology automatically updates your email and social
networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.
